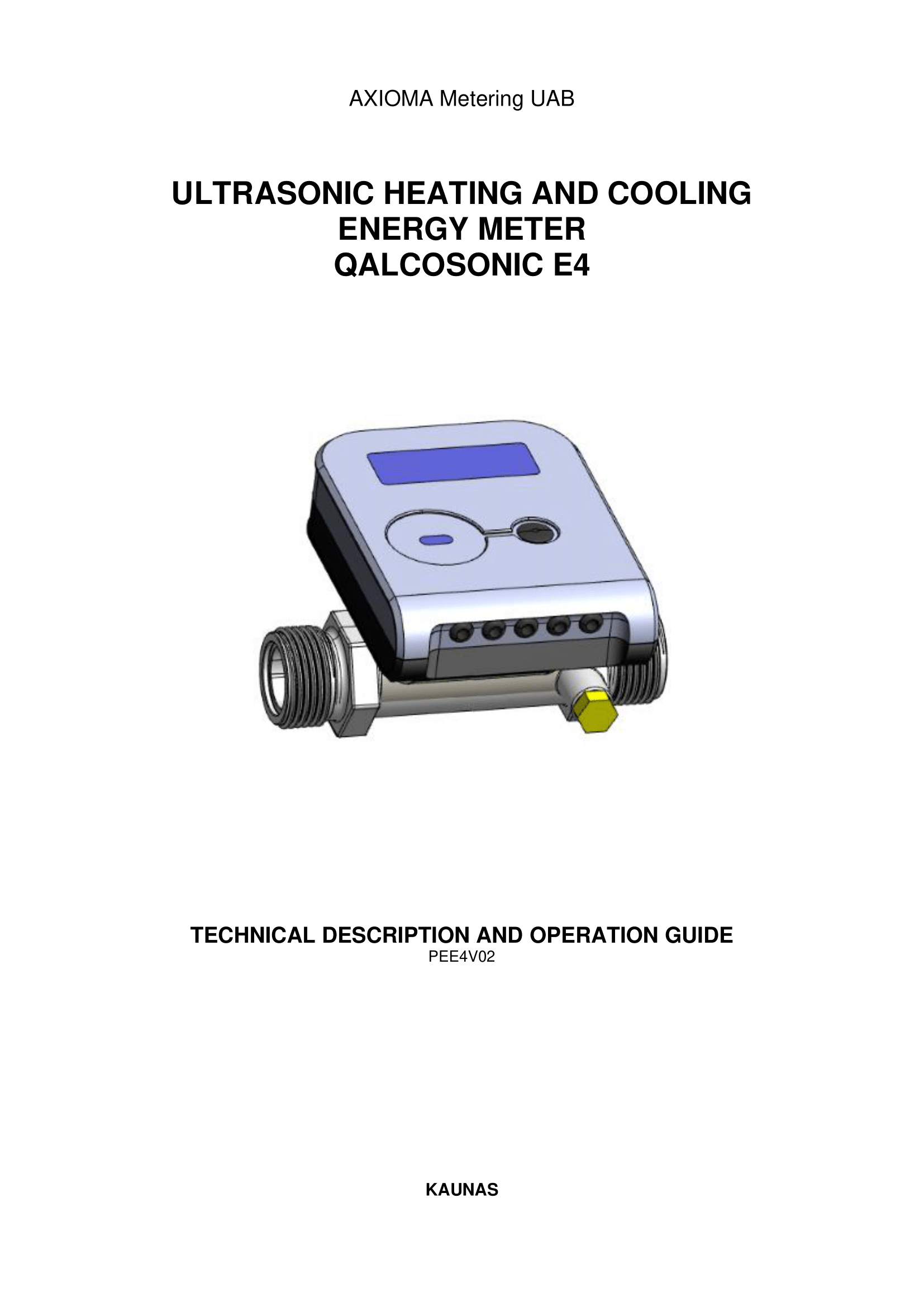

AXIOMA Metering UAB
ULTRASONIC HEATING AND COOLING
ENERGY METER
QALCOSONIC E4
TECHNICAL DESCRIPTION AND OPERATION GUIDE
PEE4V02
KAUNAS

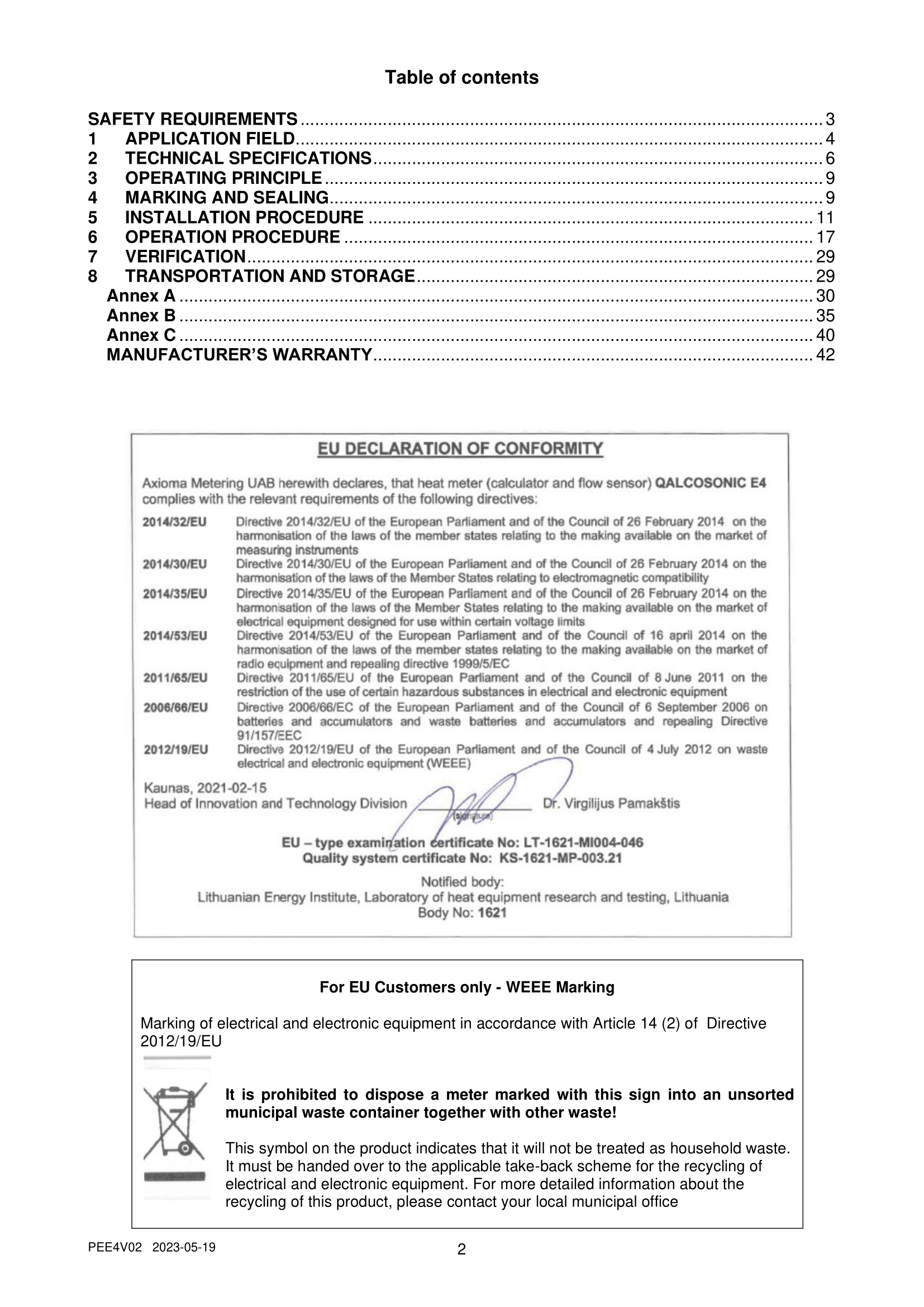

Table of contents
§ INSTALLATION PROCEDURE :::osnnmanmnnnnimnammranamsunasnanmasnaamsnsy 11
6 OPERATION PROCEDURE ...:::.:iiiccoussssssssianansismssasssusissssanmsssismsvssimaaisss 1,
8 TRANSPORTATION AND STORAGE ...........cccooiiiiiiiiic ccs 29
MANUFACTURER'S WARRANTY ...:.o..ooccnnnmnannnnnnannaniseasnninuauns anys 42
EU DECLARATION OF CONFORMITY
Axioma Metering UAB herewith declares, that heat meter (calculator and flow sensor) QALCOSONIC E4
complies with the relevant requirements of the following directives:
2014/32/EU Directive 2014/32/EU of the European Parliament and of the Council of 26 February 2014 on the
| harmonisation of the laws of the member states relating to the making available on the market of
measuring instruments |
2014/30/EV Directive 2014/30/EU of the European Parliament and of the Council of 28 February 2014 on the [
harmonisation of the laws of the Member States relating to electromagnetic compatibility |
2014/35/EV Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the |
harmonisation of the laws of the Member States relating to the making available on the market of |
electrical equipment designed for use within certain voltage limits |
2014/53/EU Directive 2014/53/EU of the European Parliament and of the Council of 16 april 2014 on the |
[ harmonisation of the laws of the member states relating to the making available on the market of
radio ecuipment and repealing directive 1999/5/EC
2011/65/EU Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the |
restriction of the use of certain hazardous substances in electrical and electronic equipment
2006/66/EU Directive 2006/66/EC of the European Parliament and of the Council of 6 September 2006 on
batteries and accumulators and waste batteries and accumulators and repealing Directive
201219/EV Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on waste
electrical and electronic equipment (WEEE)
Kaunas, 2021-02-15 Pi afr,
Head of Innovation and Technology Division £ Dr. Virgilijus Pamakstis
EU - type — rtificate No: LT-1621-MI004-046 |
Quality system certificate No: KS-1621-MP-003.21 |
Notified body:
Lithuanian Energy Institute, Laboratory of heat equipment research and testing, Lithuania
Body No: 1621 [
For EU Customers only - WEEE Marking
Marking of electrical and electronic equipment in accordance with Article 14 (2) of Directive
2012/19/EU
It is prohibited to dispose a meter marked with this sign into an unsorted
municipal waste container together with other waste!
This symbol on the product indicates that it will not be treated as household waste.
——— It must be handed over to the applicable take-back scheme for the recycling of
electrical and electronic equipment. For more detailed information about the
recycling of this product, please contact your local municipal office
PEE4V02 2023-05-19 2

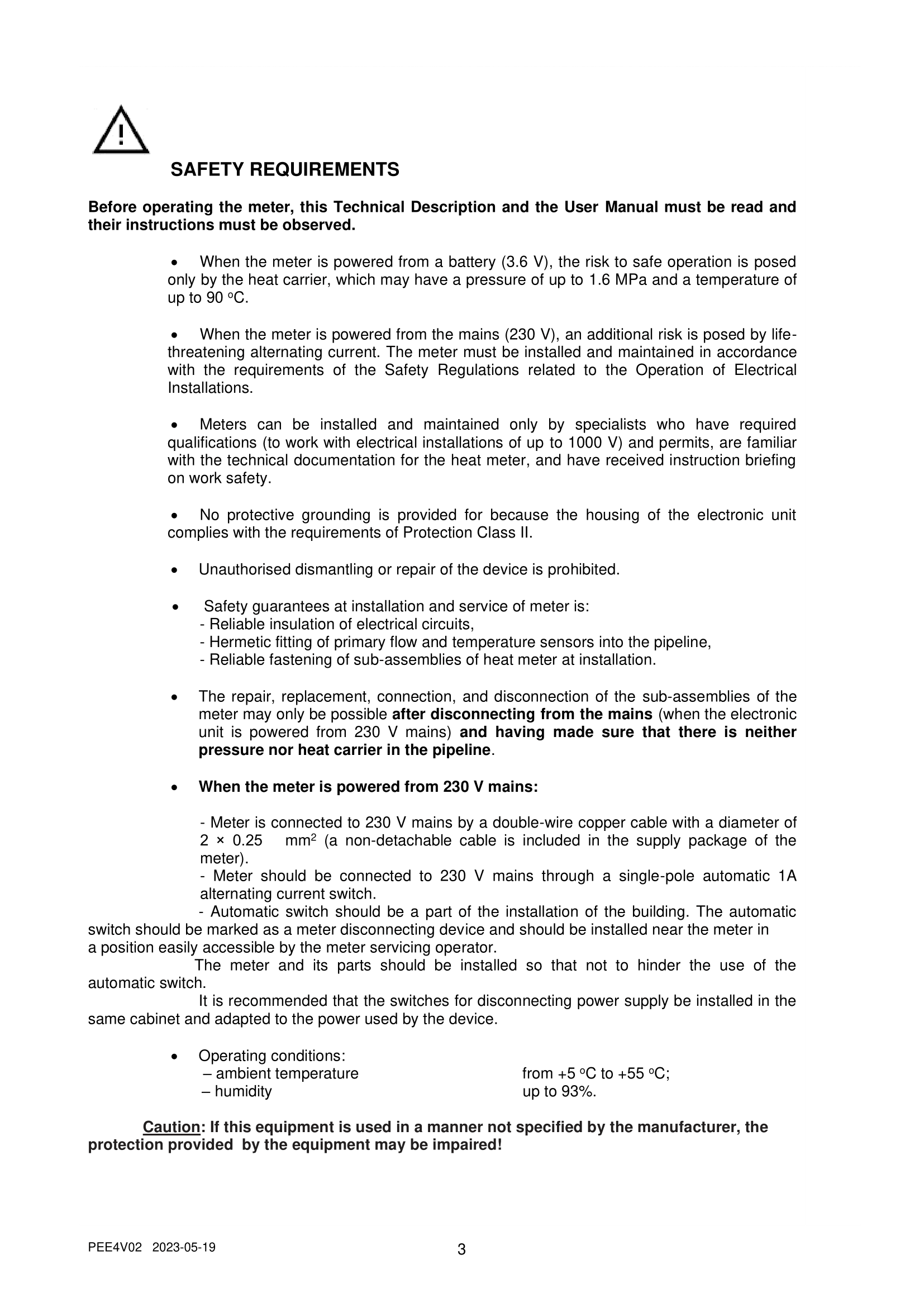

SAFETY REQUIREMENTS
Before operating the meter, this Technical Description and the User Manual must be read and
their instructions must be observed.
* When the meter is powered from a battery (3.6 V), the risk to safe operation is posed
only by the heat carrier, which may have a pressure of up to 1.6 MPa and a temperature of
up to 90 °C.
* When the meter is powered from the mains (230 V), an additional risk is posed by life-
threatening alternating current. The meter must be installed and maintained in accordance
with the requirements of the Safety Regulations related to the Operation of Electrical
Installations.
eo Meters can be installed and maintained only by specialists who have required
qualifications (to work with electrical installations of up to 1000 V) and permits, are familiar
with the technical documentation for the heat meter, and have received instruction briefing
on work safety.
+ No protective grounding is provided for because the housing of the electronic unit
complies with the requirements of Protection Class II.
* Unauthorised dismantling or repair of the device is prohibited.
* Safety guarantees at installation and service of meter is:
- Reliable insulation of electrical circuits,
- Hermetic fitting of primary flow and temperature sensors into the pipeline,
- Reliable fastening of sub-assemblies of heat meter at installation.
* The repair, replacement, connection, and disconnection of the sub-assemblies of the
meter may only be possible after disconnecting from the mains (when the electronic
unit is powered from 230 V mains) and having made sure that there is neither
pressure nor heat carrier in the pipeline.
* When the meter is powered from 230 V mains:
- Meter is connected to 230 V mains by a double-wire copper cable with a diameter of
2 x 0.25 mm? (a non-detachable cable is included in the supply package of the
meter).
- Meter should be connected to 230 V mains through a single-pole automatic 1A
alternating current switch.
- Automatic switch should be a part of the installation of the building. The automatic
switch should be marked as a meter disconnecting device and should be installed near the meter in
a position easily accessible by the meter servicing operator.
The meter and its parts should be installed so that not to hinder the use of the
automatic switch.
It is recommended that the switches for disconnecting power supply be installed in the
same cabinet and adapted to the power used by the device.
e Operating conditions:
— ambient temperature from +5 °C to +55 °C;
— humidity up to 93%.
Caution: If this equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired!
PEE4V02 2023-05-19 3

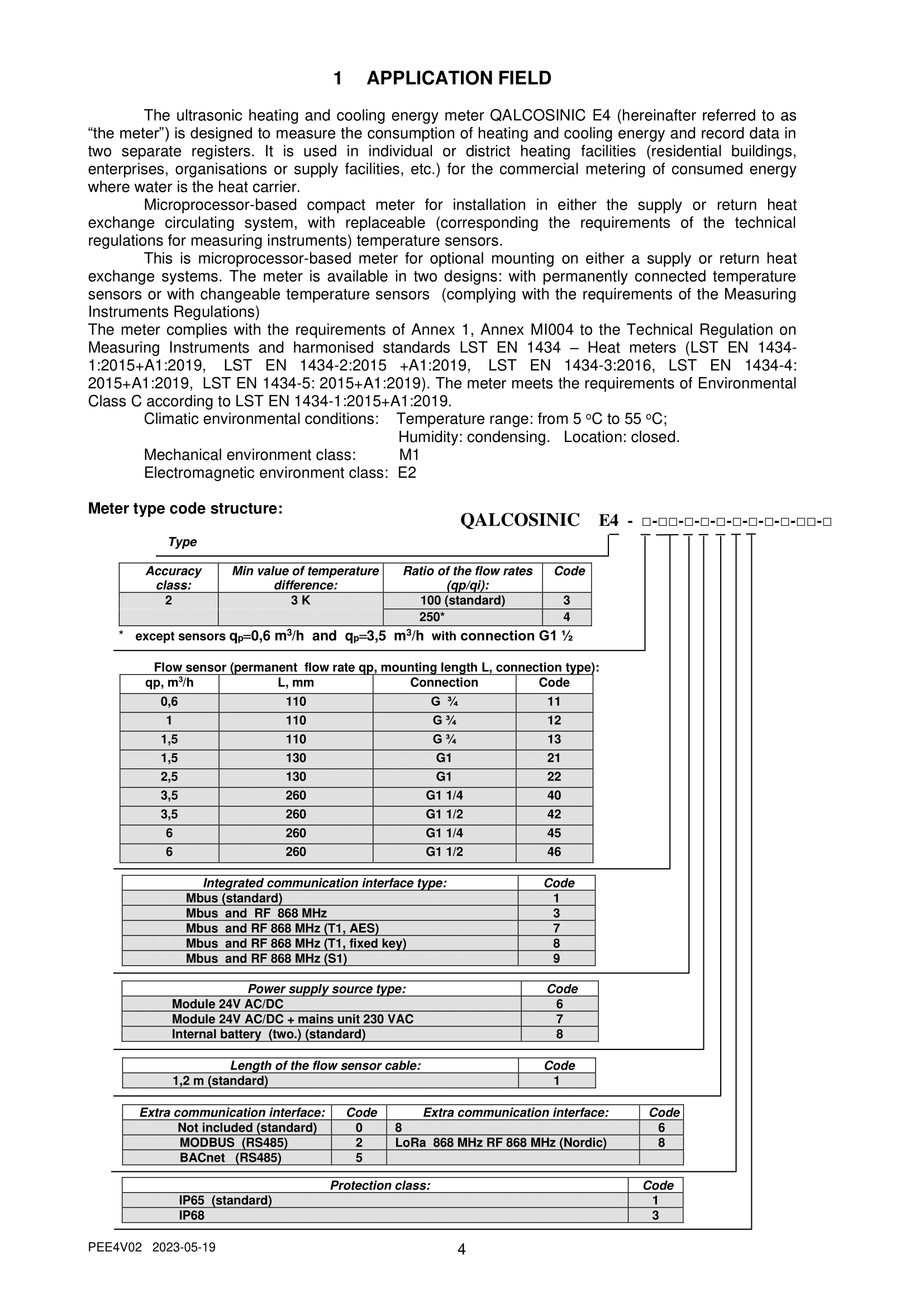

1 APPLICATION FIELD
The ultrasonic heating and cooling energy meter QALCOSINIC E4 (hereinafter referred to as
“the meter”) is designed to measure the consumption of heating and cooling energy and record data in
two separate registers. It is used in individual or district heating facilities (residential buildings,
enterprises, organisations or supply facilities, etc.) for the commercial metering of consumed energy
where water is the heat carrier.
Microprocessor-based compact meter for installation in either the supply or return heat
exchange circulating system, with replaceable (corresponding the requirements of the technical
regulations for measuring instruments) temperature sensors.
This is microprocessor-based meter for optional mounting on either a supply or return heat
exchange systems. The meter is available in two designs: with permanently connected temperature
sensors or with changeable temperature sensors (complying with the requirements of the Measuring
Instruments Regulations)
The meter complies with the requirements of Annex 1, Annex MI004 to the Technical Regulation on
Measuring Instruments and harmonised standards LST EN 1434 — Heat meters (LST EN 1434-
1:2015+A1:2019, LST EN 1434-2:2015 +A1:2019, LST EN 1434-3:2016, LST EN 1434-4:
2015+A1:2019, LST EN 1434-5: 2015+A1:2019). The meter meets the requirements of Environmental
Class C according to LST EN 1434-1:2015+A1:2019.
Climatic environmental conditions: Temperature range: from 5 °C to 55 °C;
Humidity: condensing. Location: closed.
Mechanical environment class: M1
Electromagnetic environment class: E2
Meter type code structure:
Type TTTTT
class: difference: qp/qi):
[250+ ~~ [ 4 |
* except sensors qp=0,6 m¥h and qp=3,5 mh with connection G1
Flow sensor (permanent flow rate gp, mounting length L, connection type):
Gpmh | Lmm | Comecon | Code |
os [mo 6% [ 11 |
+ [mo [6% [ 12 |
1 [mo [6x [ 13 |
[3 [ 260 [ G14 [| 40 |
35 [20 | Giz [ 42 |
| Mbus and RF868 MHz (T1.fixedkey) ~~ [ 8 |
[ Mbus andRF868MHz(S) ~~ [ 9 |
Module 24V AC/DC + mains unit 230 VAC
[ Internalbattery (two)(standard) [8 |
[ 12m(standard) [1
[Extra communication interface: | Code | Extra communication interface: __| Code]
| Notincluded(standard) | 0 [8 ~~ [6 |
MODBUS (RS485! | 2 | LoRa 868 MHz RF 868 MHz (Nordic) | 8 |
| P65 (standard) 1]
PEE4V02 2023-05-19 4

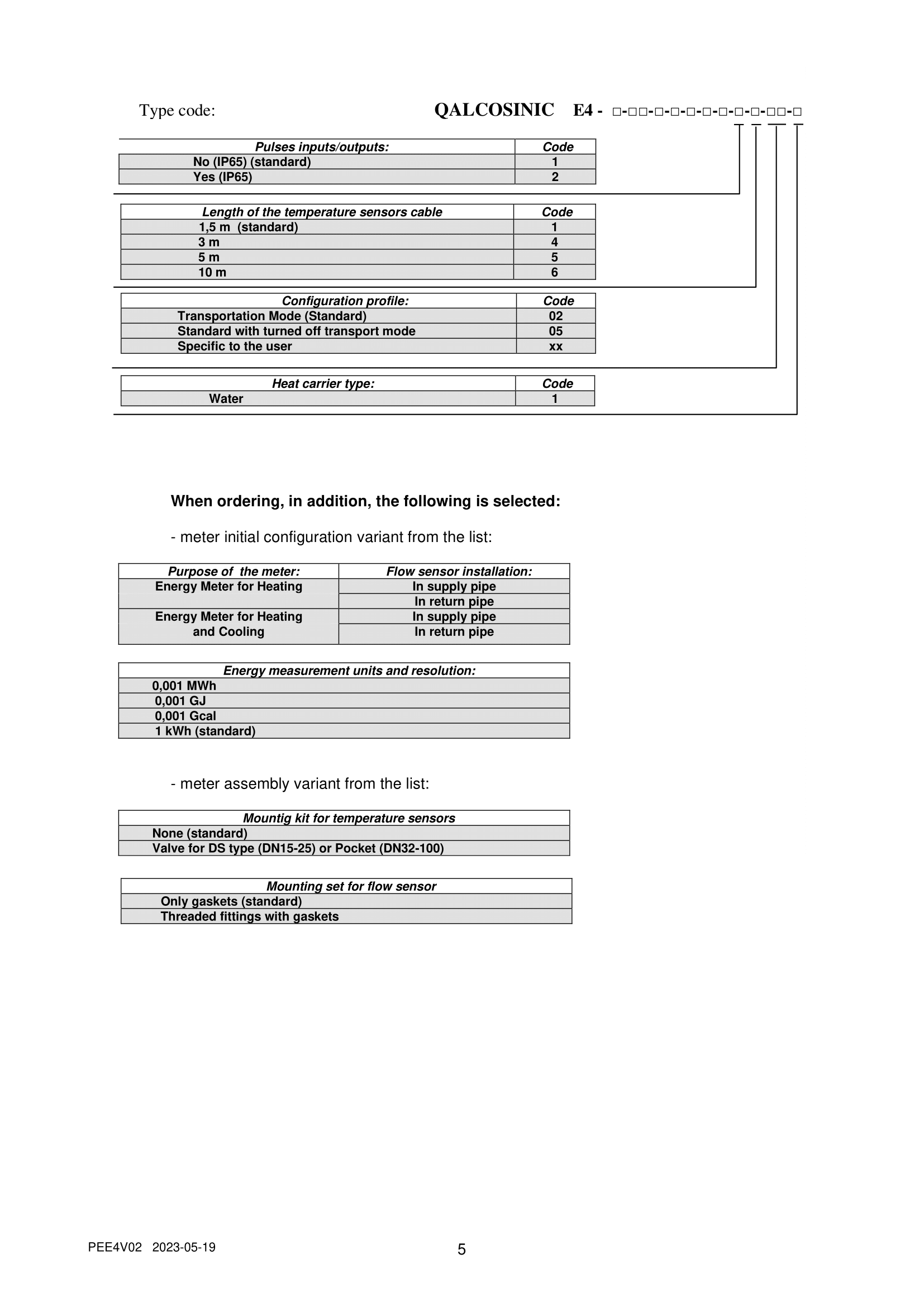

Type code: QALCOSINIC E4 - o-oo-0-0-0-0-0-0-0-00-0
Pulses inputs/outputs:
No (IP65) (standard [Sa
[~~ Yesqpes) ~~ 2 |
Length of the temperature sensors cable
1,5 m (standard 1]
3m 4 |
Configuration profile:
Transportation Mode (Standard! [02 |
Standard with turned off transport mode [05 |
Specific to the user [xx |
When ordering, in addition, the following is selected:
- meter initial configuration variant from the list:
Purpose of the meter: Flow sensor installation:
Energy Meter for Heating | Insupplypipe |
Energy Meter for Heating | Insupplypipe |
and Cooling mrewmppe
Energy measurement units and resolution:
0,001 GJ
0,001 Geal
1 kWh (standard
- meter assembly variant from the list:
Mountig kit for temperature sensors
Valve for DS type (DN15-25) or Pocket (DN32-100]
Mounting set for flow sensor
Only gaskets (standard|
Threaded fittings with gaskets
PEE4V02 2023-05-19 5

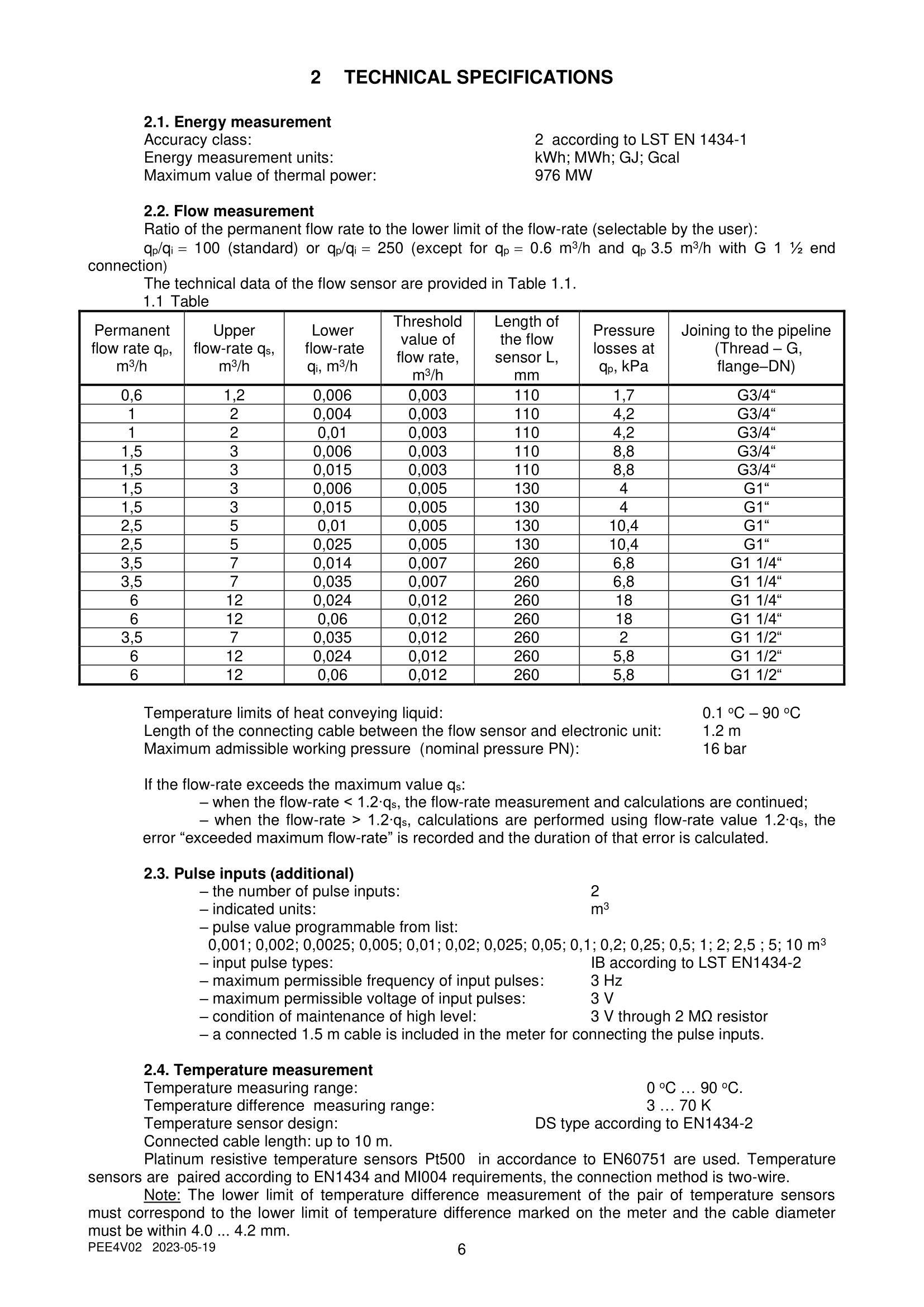

2 TECHNICAL SPECIFICATIONS
2.1. Energy measurement
Accuracy class: 2 according to LST EN 1434-1
Energy measurement units: kWh; MWh; GJ; Gceal
Maximum value of thermal power: 976 MW
2.2. Flow measurement
Ratio of the permanent flow rate to the lower limit of the flow-rate (selectable by the user):
qgp/qi = 100 (standard) or gp/qi = 250 (except for gp = 0.6 m3h and gp 3.5 mh with G 1 %: end
connection)
The technical data of the flow sensor are provided in Table 1.1.
1.1 Table
Permanent Upper Lower Threshold Lengn of Pressure | Joining to the pipeline
flow rate gp, | flow-rate gs, | flow-rate flow rate sensor L. losses at (Thread — G,
| 06 [ 12 | 0006 [ 0003 | 110 | 17 [ ~~ G34 |
1 [2 | oof | ©0003 [ f10 [ 42 | ~~ G34 |
25 [5 | oof | ©0005 [ 130 [ 104 | GI" |
| 35 [ 7 | oo14 [ oo007 | 260 [| 68 [ = c114 |
35 [7 | 003 | 0007 | 260 [ 68 | ~~ Gi14 |
6 [12 | 0024 | 0012 [ 260 [ 18 | ~~ G14 |
| 6 [ 12 | oo0e [ oo0t2 | 260 | 18 [ ~~ G114 |
6 [12 | 0024 | 0012 [ 260 [ 58 | G12 |
| 6 [ 12 | o06 | oo0i2 [| 260 [ 58 | = G12 |
Temperature limits of heat conveying liquid: 0.1°C-90°C
Length of the connecting cable between the flow sensor and electronic unit: 12m
Maximum admissible working pressure (nominal pressure PN): 16 bar
If the flow-rate exceeds the maximum value qs:
— when the flow-rate < 1.2-gs, the flow-rate measurement and calculations are continued;
— when the flow-rate > 1.2:qs, calculations are performed using flow-rate value 1.2-gs, the
error “exceeded maximum flow-rate” is recorded and the duration of that error is calculated.
2.3. Pulse inputs (additional)
— the number of pulse inputs: 2
— indicated units: m?
— pulse value programmable from list:
0,001; 0,002; 0,0025; 0,005; 0,01; 0,02; 0,025; 0,05; 0,1; 0,2; 0,25; 0,5; 1; 2; 2,5 ; 5; 10 m?
— input pulse types: IB according to LST EN1434-2
— maximum permissible frequency of input pulses: 3 Hz
— maximum permissible voltage of input pulses: 3V
— condition of maintenance of high level: 3 V through 2 MQ resistor
—a connected 1.5 m cable is included in the meter for connecting the pulse inputs.
2.4. Temperature measurement
Temperature measuring range: 0°C... 90°C.
Temperature difference measuring range: 3...70K
Temperature sensor design: DS type according to EN1434-2
Connected cable length: up to 10 m.
Platinum resistive temperature sensors Pt500 in accordance to EN60751 are used. Temperature
sensors are paired according to EN1434 and MI004 requirements, the connection method is two-wire.
Note: The lower limit of temperature difference measurement of the pair of temperature sensors
must correspond to the lower limit of temperature difference marked on the meter and the cable diameter
must be within 4.0 ... 4.2 mm.
PEE4V02 2023-05-19 6

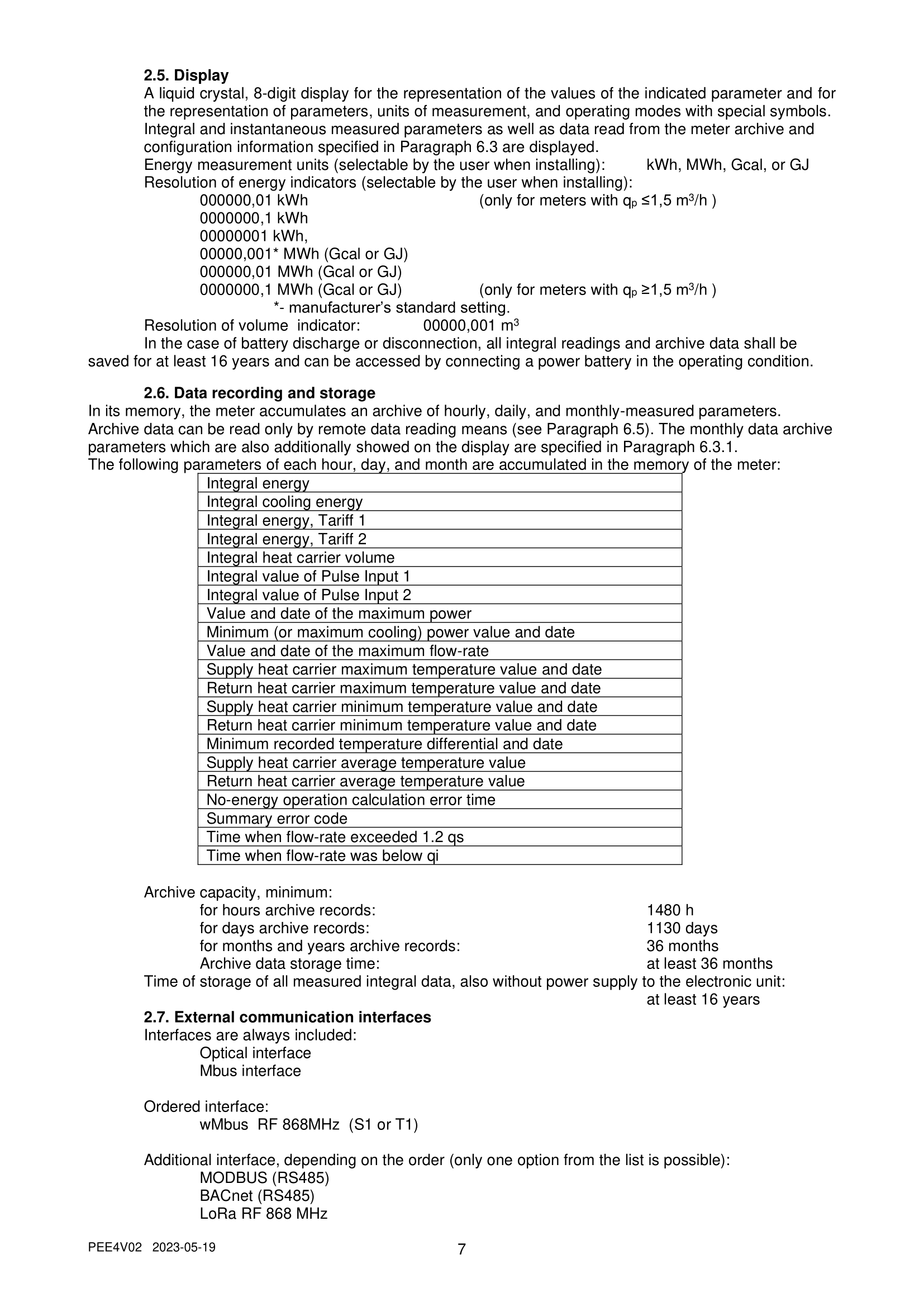

2.5. Display
A liquid crystal, 8-digit display for the representation of the values of the indicated parameter and for
the representation of parameters, units of measurement, and operating modes with special symbols.
Integral and instantaneous measured parameters as well as data read from the meter archive and
configuration information specified in Paragraph 6.3 are displayed.
Energy measurement units (selectable by the user when installing): kWh, MWh, Gcal, or GJ
Resolution of energy indicators (selectable by the user when installing):
000000,01 kWh (only for meters with gp <1,5 m3h)
0000000,1 kWh
00000001 kWh,
00000,001* MWh (Gcal or GJ)
000000,01 MWh (Gcal or GJ)
0000000,1 MWh (Gcal or GJ) (only for meters with gp 21,5 m3h)
*- manufacturer's standard setting.
Resolution of volume indicator: 00000,001 m?
In the case of battery discharge or disconnection, all integral readings and archive data shall be
saved for at least 16 years and can be accessed by connecting a power battery in the operating condition.
2.6. Data recording and storage
In its memory, the meter accumulates an archive of hourly, daily, and monthly-measured parameters.
Archive data can be read only by remote data reading means (see Paragraph 6.5). The monthly data archive
parameters which are also additionally showed on the display are specified in Paragraph 6.3.1.
The following parameters of each hour, day, and month are accumulated in the memory of the meter:
Archive capacity, minimum:
for hours archive records: 1480 h
for days archive records: 1130 days
for months and years archive records: 36 months
Archive data storage time: at least 36 months
Time of storage of all measured integral data, also without power supply to the electronic unit:
at least 16 years
2.7. External communication interfaces
Interfaces are always included:
Optical interface
Mbus interface
Ordered interface:
wMbus RF 868MHz (S1 or T1)
Additional interface, depending on the order (only one option from the list is possible):
MODBUS (RS485)
BACnet (RS485)
LoRa RF 868 MHz
PEE4V02 2023-05-19 7

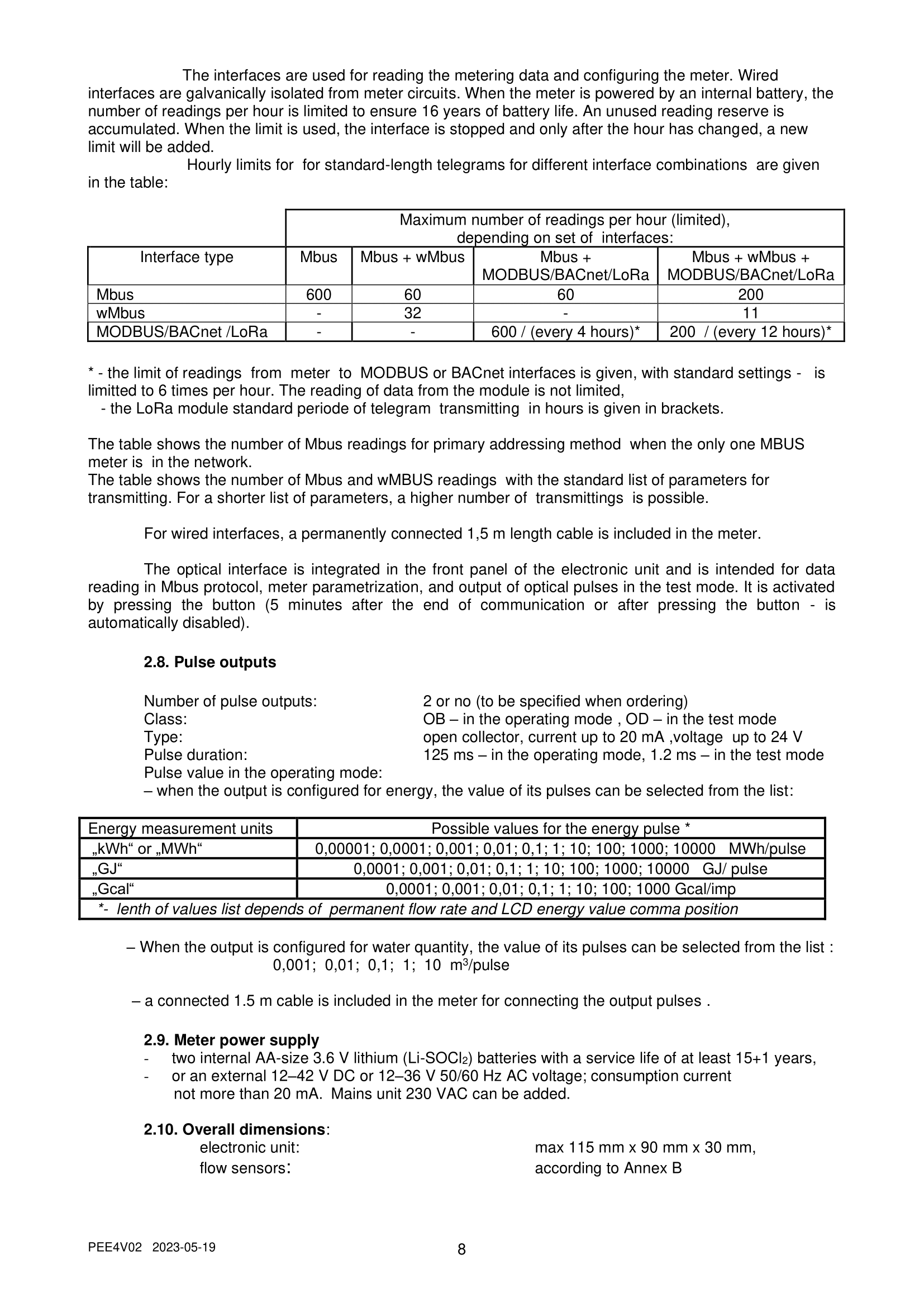

The interfaces are used for reading the metering data and configuring the meter. Wired
interfaces are galvanically isolated from meter circuits. When the meter is powered by an internal battery, the
number of readings per hour is limited to ensure 16 years of battery life. An unused reading reserve is
accumulated. When the limit is used, the interface is stopped and only after the hour has changed, a new
limit will be added.
Hourly limits for for standard-length telegrams for different interface combinations are given
in the table:
Maximum number of readings per hour (limited),
depending on set of interfaces:
Interface type Mbus + wMbus Mbus + Mbus + wMbus +
MODBUS/BACnet/LoRa | MODBUS/BACnet/LoRa
Mobus ~~ [60 | 60 | ~~ 60 [200 |
MODBUS/BACnet/loRa | - | ~~ - | 600/ (every 4 hours)* | 200 / (every 12 hours)*
* - the limit of readings from meter to MODBUS or BACnet interfaces is given, with standard settings - is
limitted to 6 times per hour. The reading of data from the module is not limited,
- the LoRa module standard periode of telegram transmitting in hours is given in brackets.
The table shows the number of Mbus readings for primary addressing method when the only one MBUS
meter is in the network.
The table shows the number of Mbus and wMBUS readings with the standard list of parameters for
transmitting. For a shorter list of parameters, a higher number of transmittings is possible.
For wired interfaces, a permanently connected 1,5 m length cable is included in the meter.
The optical interface is integrated in the front panel of the electronic unit and is intended for data
reading in Mbus protocol, meter parametrization, and output of optical pulses in the test mode. It is activated
by pressing the button (5 minutes after the end of communication or after pressing the button - is
automatically disabled).
2.8. Pulse outputs
Number of pulse outputs: 2 or no (to be specified when ordering)
Class: OB — in the operating mode , OD — in the test mode
Type: open collector, current up to 20 mA ,voltage up to 24 V
Pulse duration: 125 ms — in the operating mode, 1.2 ms — in the test mode
Pulse value in the operating mode:
— when the output is configured for energy, the value of its pulses can be selected from the list:
Possible values for the energy pulse *
,kWh" or ,MWh*" 0,00001; 0,0001; 0,001; 0,01; 0,1; 1; 10; 100; 1000; 10000 MWh/pulse
0,0001; 0,001; 0,01; 0,1; 1; 10; 100; 1000; 10000 GJ/ pulse
0,0001; 0,001; 0,01; 0,1; 1; 10; 100; 1000 Geal/imp
*-_lenth of values list depends of permanent flow rate and LCD energy value comma position
— When the output is configured for water quantity, the value of its pulses can be selected from the list :
0,001; 0,01; 0,1; 1; 10 m%pulse
—a connected 1.5 m cable is included in the meter for connecting the output pulses .
2.9. Meter power supply
- two internal AA-size 3.6 V lithium (Li-SOCI2) batteries with a service life of at least 15+1 years,
- oran external 12-42 V DC or 12-36 V 50/60 Hz AC voltage; consumption current
not more than 20 mA. Mains unit 230 VAC can be added.
2.10. Overall dimensions:

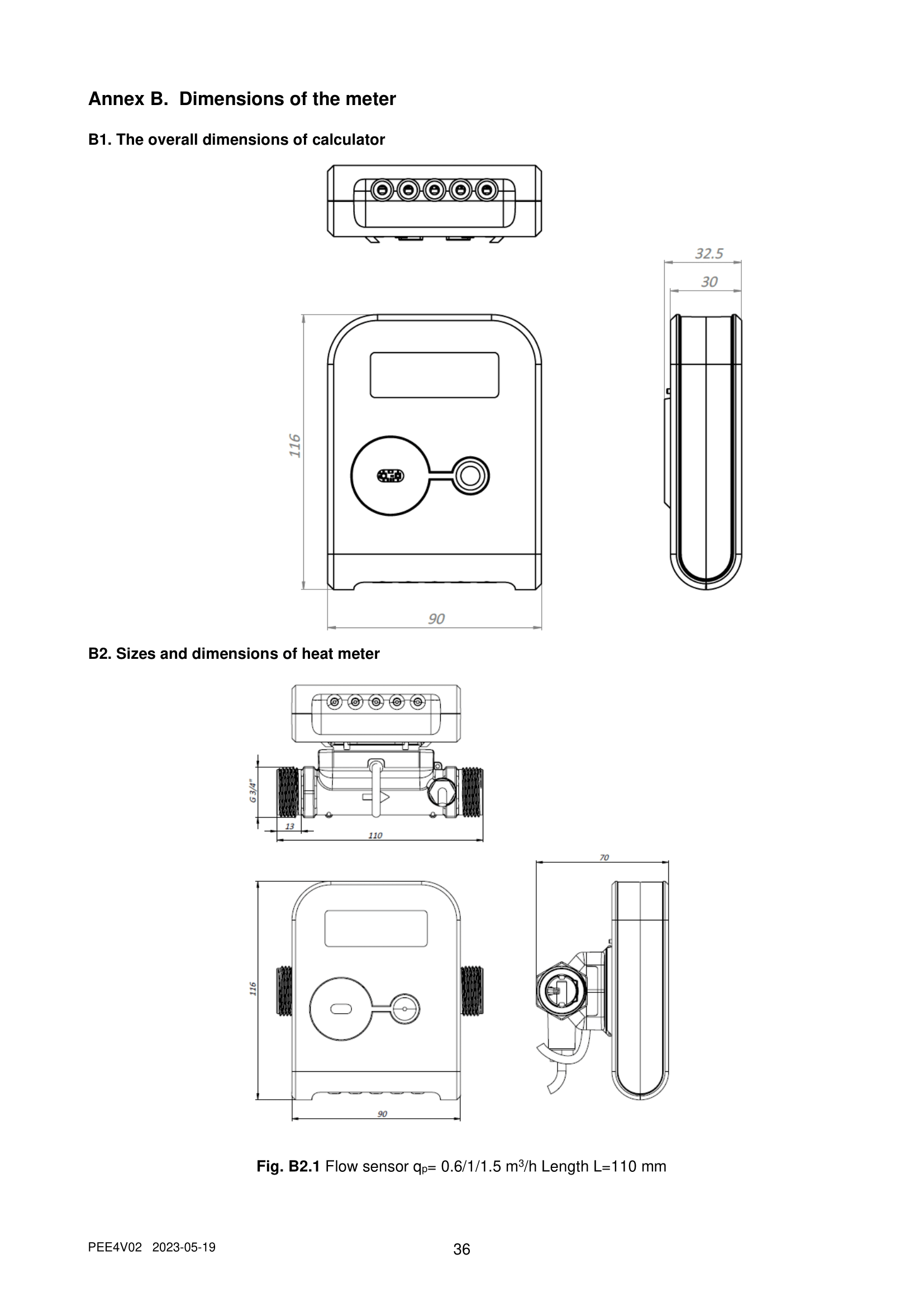

electronic unit: max 115 mm x 90 mm x 30 mm,
flow sensors: according to Annex B
PEE4V02 2023-05-19 8

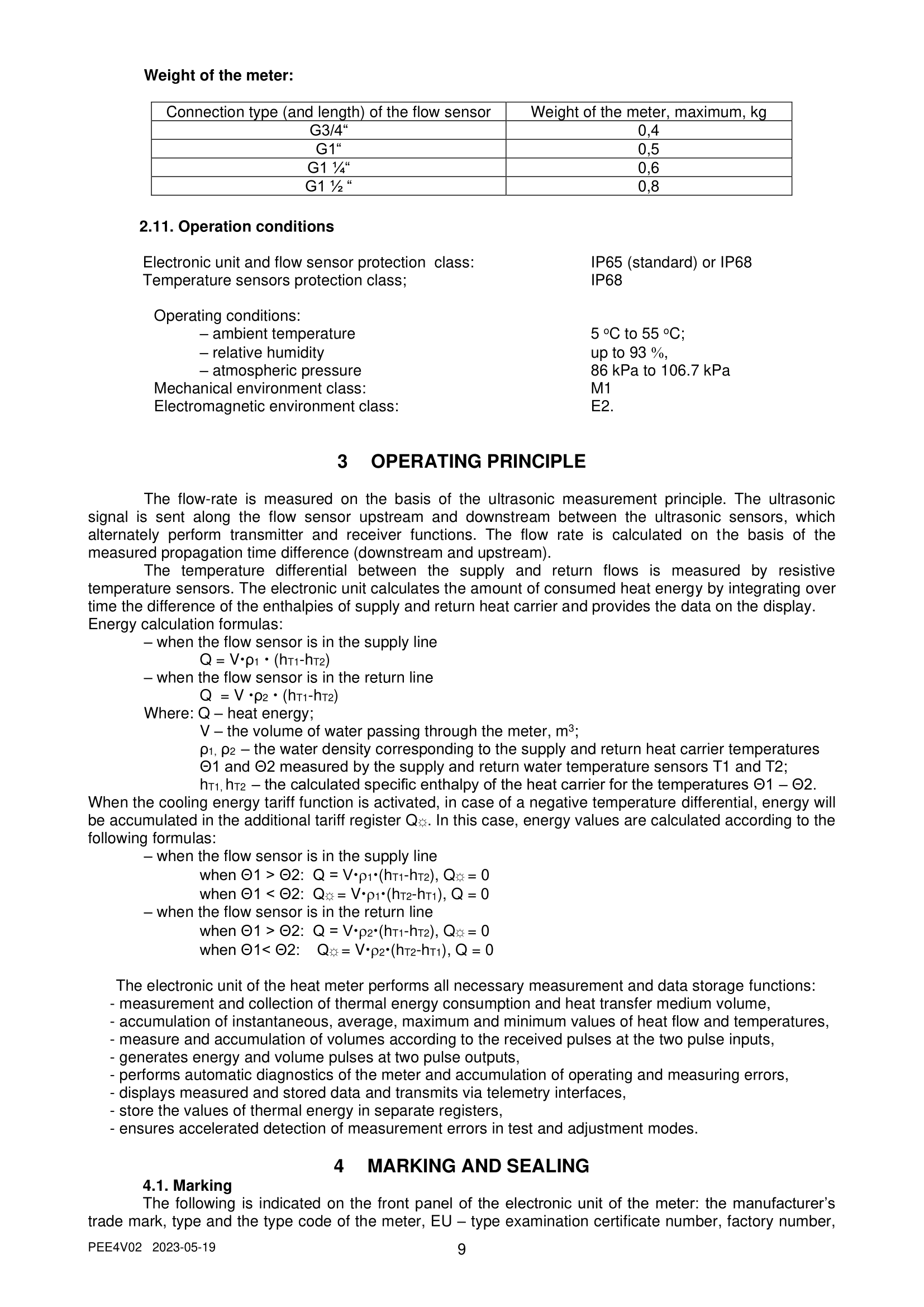

Weight of the meter:
ew ee]
2.11. Operation conditions
Electronic unit and flow sensor protection class: IP65 (standard) or IP68
Temperature sensors protection class; IP68
Operating conditions:
— ambient temperature 5 °C to 55 °C;
— relative humidity up to 93 %,
— atmospheric pressure 86 kPa to 106.7 kPa
Mechanical environment class: M1
Electromagnetic environment class: E2.
3 OPERATING PRINCIPLE
The flow-rate is measured on the basis of the ultrasonic measurement principle. The ultrasonic
signal is sent along the flow sensor upstream and downstream between the ultrasonic sensors, which
alternately perform transmitter and receiver functions. The flow rate is calculated on the basis of the
measured propagation time difference (downstream and upstream).
The temperature differential between the supply and return flows is measured by resistive
temperature sensors. The electronic unit calculates the amount of consumed heat energy by integrating over
time the difference of the enthalpies of supply and return heat carrier and provides the data on the display.
Energy calculation formulas:
— when the flow sensor is in the supply line
— when the flow sensor is in the return line
Where: Q — heat energy;
V — the volume of water passing through the meter, m3;
p1, p2 — the water density corresponding to the supply and return heat carrier temperatures
©1 and ©2 measured by the supply and return water temperature sensors T1 and T2;
hr, hr2 — the calculated specific enthalpy of the heat carrier for the temperatures ©1 — ©2.
When the cooling energy tariff function is activated, in case of a negative temperature differential, energy will
be accumulated in the additional tariff register Q::. In this case, energy values are calculated according to the
following formulas:
— when the flow sensor is in the supply line
when ©1 > 02: Q =V-+pi+(hti-hr2), Q:s=0
— when the flow sensor is in the return line
The electronic unit of the heat meter performs all necessary measurement and data storage functions:
- measurement and collection of thermal energy consumption and heat transfer medium volume,
- accumulation of instantaneous, average, maximum and minimum values of heat flow and temperatures,
- measure and accumulation of volumes according to the received pulses at the two pulse inputs,
- generates energy and volume pulses at two pulse outputs,
- performs automatic diagnostics of the meter and accumulation of operating and measuring errors,
- displays measured and stored data and transmits via telemetry interfaces,
- store the values of thermal energy in separate registers,
- ensures accelerated detection of measurement errors in test and adjustment modes.
4 MARKING AND SEALING
4.1. Marking
The following is indicated on the front panel of the electronic unit of the meter: the manufacturer's
trade mark, type and the type code of the meter, EU — type examination certificate number, factory number,
PEE4V02 2023-05-19 9
1 “ IR
| |
= ST |

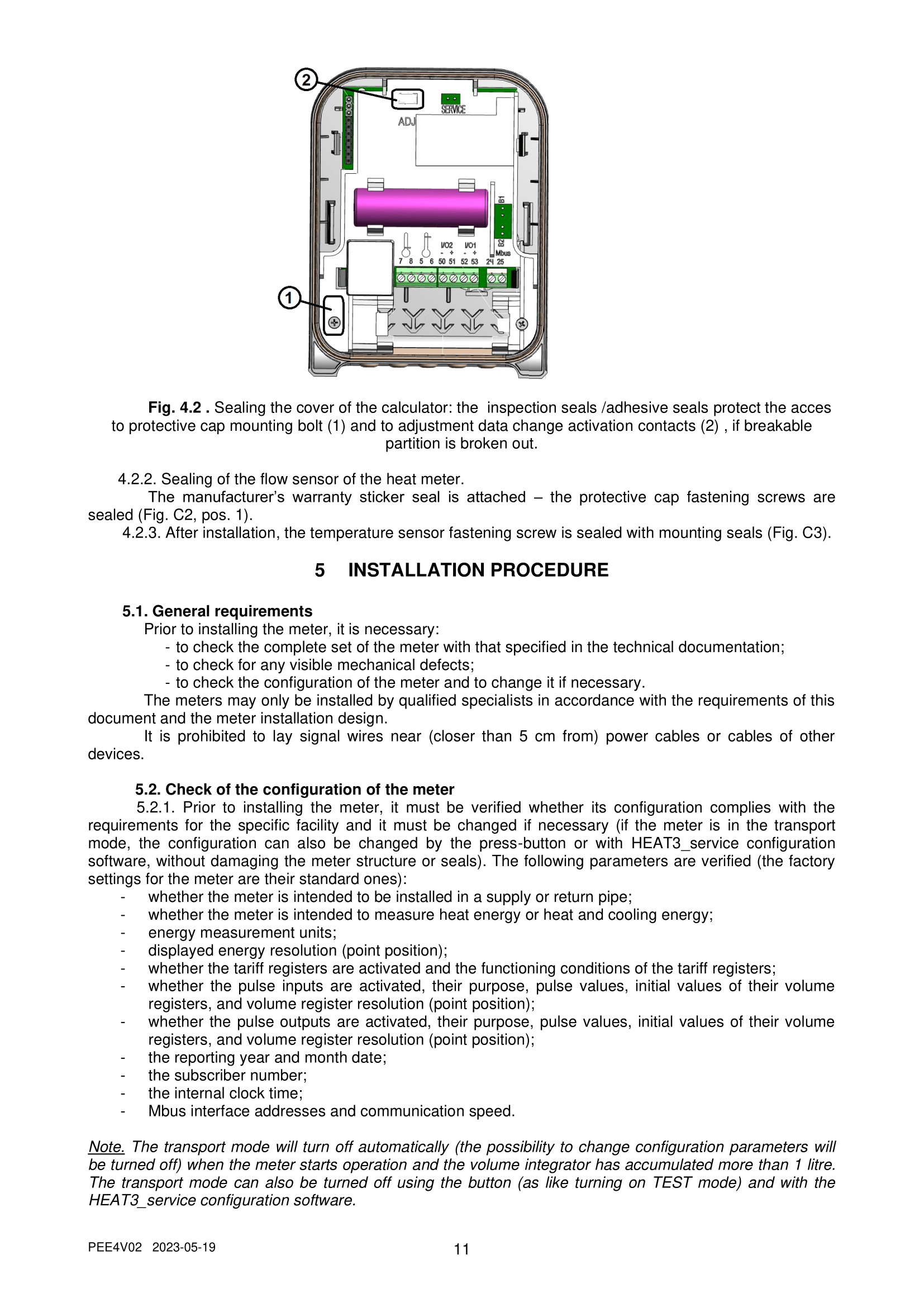

Fig. 4.2 . Sealing the cover of the calculator: the inspection seals /adhesive seals protect the acces
to protective cap mounting bolt (1) and to adjustment data change activation contacts (2) , if breakable
partition is broken out.

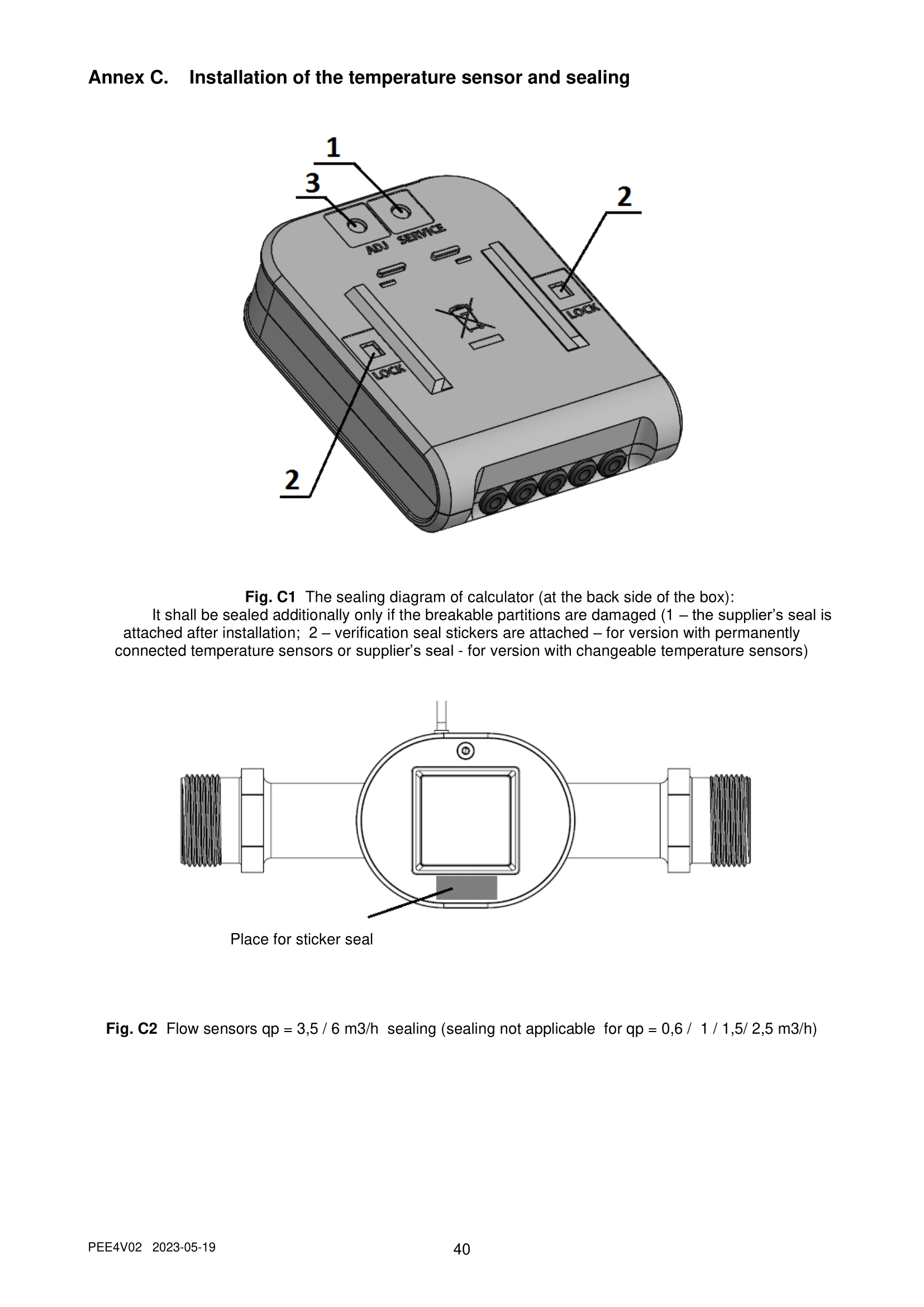

4.2.2. Sealing of the flow sensor of the heat meter.
The manufacturer's warranty sticker seal is attached — the protective cap fastening screws are
sealed (Fig. C2, pos. 1).
4.2.3. After installation, the temperature sensor fastening screw is sealed with mounting seals (Fig. C3).
5 INSTALLATION PROCEDURE
5.1. General requirements
Prior to installing the meter, it is necessary:
- to check the complete set of the meter with that specified in the technical documentation;
- to check for any visible mechanical defects;
- to check the configuration of the meter and to change it if necessary.
The meters may only be installed by qualified specialists in accordance with the requirements of this
document and the meter installation design.
It is prohibited to lay signal wires near (closer than 5 cm from) power cables or cables of other
devices.
5.2. Check of the configuration of the meter
5.2.1. Prior to installing the meter, it must be verified whether its configuration complies with the
requirements for the specific facility and it must be changed if necessary (if the meter is in the transport
mode, the configuration can also be changed by the press-button or with HEAT3_service configuration
software, without damaging the meter structure or seals). The following parameters are verified (the factory
settings for the meter are their standard ones):
- whether the meter is intended to be installed in a supply or return pipe;
- whether the meter is intended to measure heat energy or heat and cooling energy;
- energy measurement units;
- displayed energy resolution (point position);
- whether the tariff registers are activated and the functioning conditions of the tariff registers;
- whether the pulse inputs are activated, their purpose, pulse values, initial values of their volume
registers, and volume register resolution (point position);
- whether the pulse outputs are activated, their purpose, pulse values, initial values of their volume
registers, and volume register resolution (point position);
- the reporting year and month date;
- the subscriber number;
- the internal clock time;
- Mbus interface addresses and communication speed.
Note. The transport mode will turn off automatically (the possibility to change configuration parameters will
be turned off) when the meter starts operation and the volume integrator has accumulated more than 1 litre.
The transport mode can also be turned off using the button (as like turning on TEST mode) and with the
HEAT3_service configuration software.
PEE4V02 2023-05-19 11

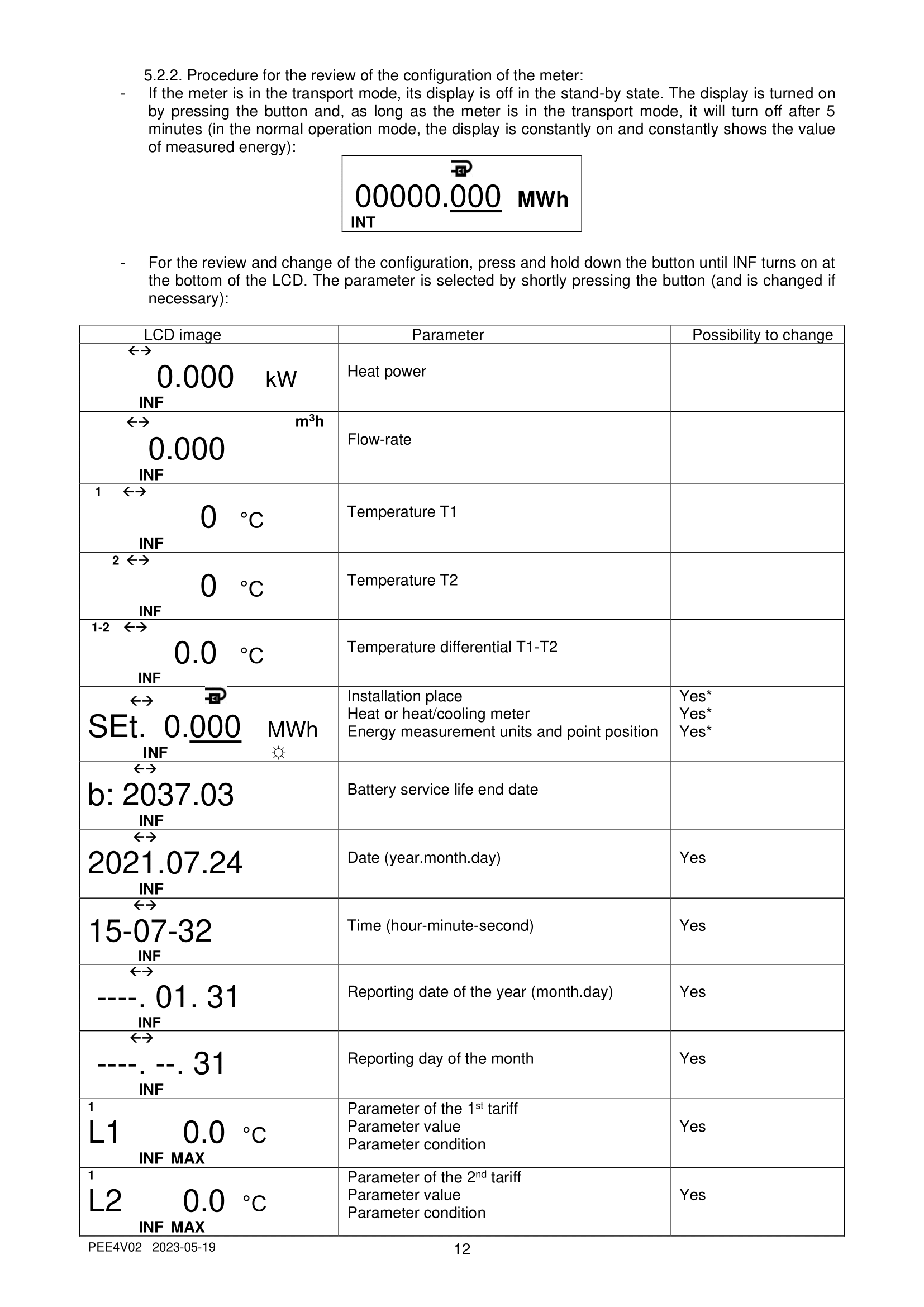

5.2.2. Procedure for the review of the configuration of the meter:
- If the meter is in the transport mode, its display is off in the stand-by state. The display is turned on
by pressing the button and, as long as the meter is in the transport mode, it will turn off after 5
minutes (in the normal operation mode, the display is constantly on and constantly shows the value
of measured energy):
00000.000 mwn
INT
- For the review and change of the configuration, press and hold down the button until INF turns on at
the bottom of the LCD. The parameter is selected by shortly pressing the button (and is changed if
necessary):
Possibility to change
0 . 000 KW Heat power
INF
«> mh
0 000 Flow-rate
INF
1 >
0 °c Temperature T1
INF
2 €>
0 °c Temperature T2
INF
12 €>
0 0 °C Temperature differential T1-T2
INF
«> 2 Installation place Yes*
Heat or heat/cooling meter Yes*
SEt. 0.000 MWh Energy measurement units and point position | Yes*
INF 75.5
«>
b . 20 37 0 3 Battery service life end date
INF
20 21 07 24 Date (year.month.day) Yes
INF
«>
1 5-07-32 Time (hour-minute-second) Yes
INF
«>
ans 01 31 Reporting date of the year (month.day) Yes
INF
«>
mee 31 Reporting day of the month Yes
INF
1 Parameter of the 15! tariff
L1 0 0 °c Parameter value Yes
- Parameter condition
INF MAX
1 Parameter of the 2" tariff
L2 0 0 °C Parameter value Yes
. Parameter condition
INF MAX
PEE4V02 2023-05-19 12

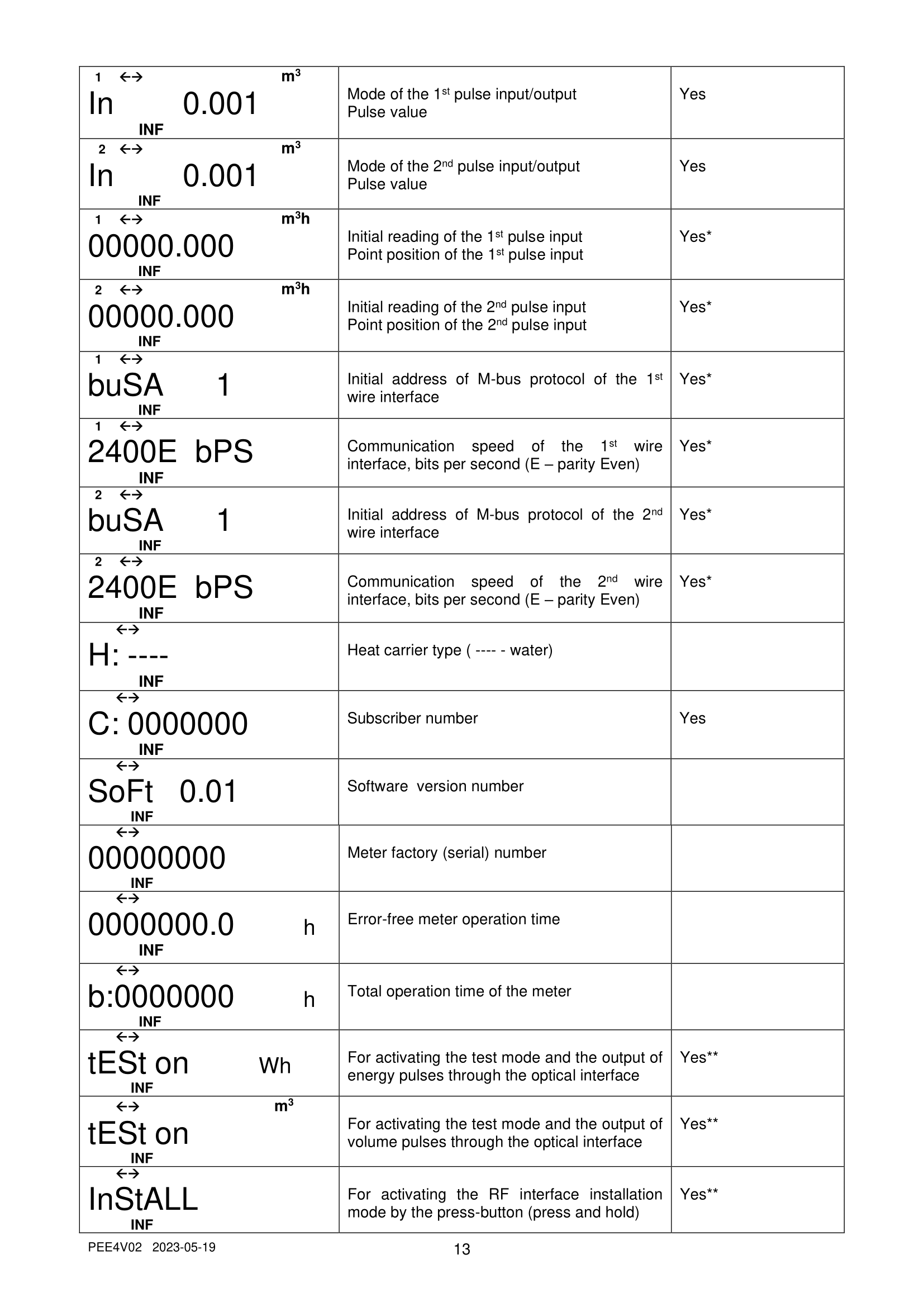

Mode of the 1%! pulse input/output Yes
| n 0 .00 1 Pulse value
INF
Mode of the 2" pulse input/output Yes
| n 0 .00 1 Pulse value
INF
00000 000 Initial reading of the 1st pulse input Yes*
. Point position of the 1st pulse input
INF
2 > mh
00000 000 Initial reading of the 2" pulse input Yes*
. Point position of the 2" pulse input
INF
1 €>
Initial address of M-bus protocol of the 1st | Yes*
b u SA 1 wire interface
1 €>
2400 E bPS Communication speed of the 1st wire | Yes*
hen interface, bits per second (E — parity Even)
2 >
Initial address of M-bus protocol of the 2" | Yes*
b u SA 1 wire interface
2 >
2400 E bPS Communication speed of the 2" wire | Yes*
ps interface, bits per second (E — parity Even)
«>
H ee Heat carrier type ( ---- - water)
INF
C . 0000000 Subscriber number Yes
INF
So Ft 0 01 Software version number
INF
«>
00000000 Meter factory (serial) number
INF
[=3
0000000 0 h Error-free meter operation time
INF
b 0000000 h Total operation time of the meter
INF
>
tESt on Wh For activating the test mode and the output of | Yes**
NF energy pulses through the optical interface
«> m?
tE St For activating the test mode and the output of | Yes**
on volume pulses through the optical interface
INF
For activating the RF interface installation | Yes**
nStALL mode by the press-button (press and hold)
PEE4V02 2023-05-19 13
Notes.
1) The symbol €-> shows that the meter is in the transport mode.
2) ‘*the marked parameters are displayed only in the transport mode
3) **the marked parameters can also be changed in the normal operation mode

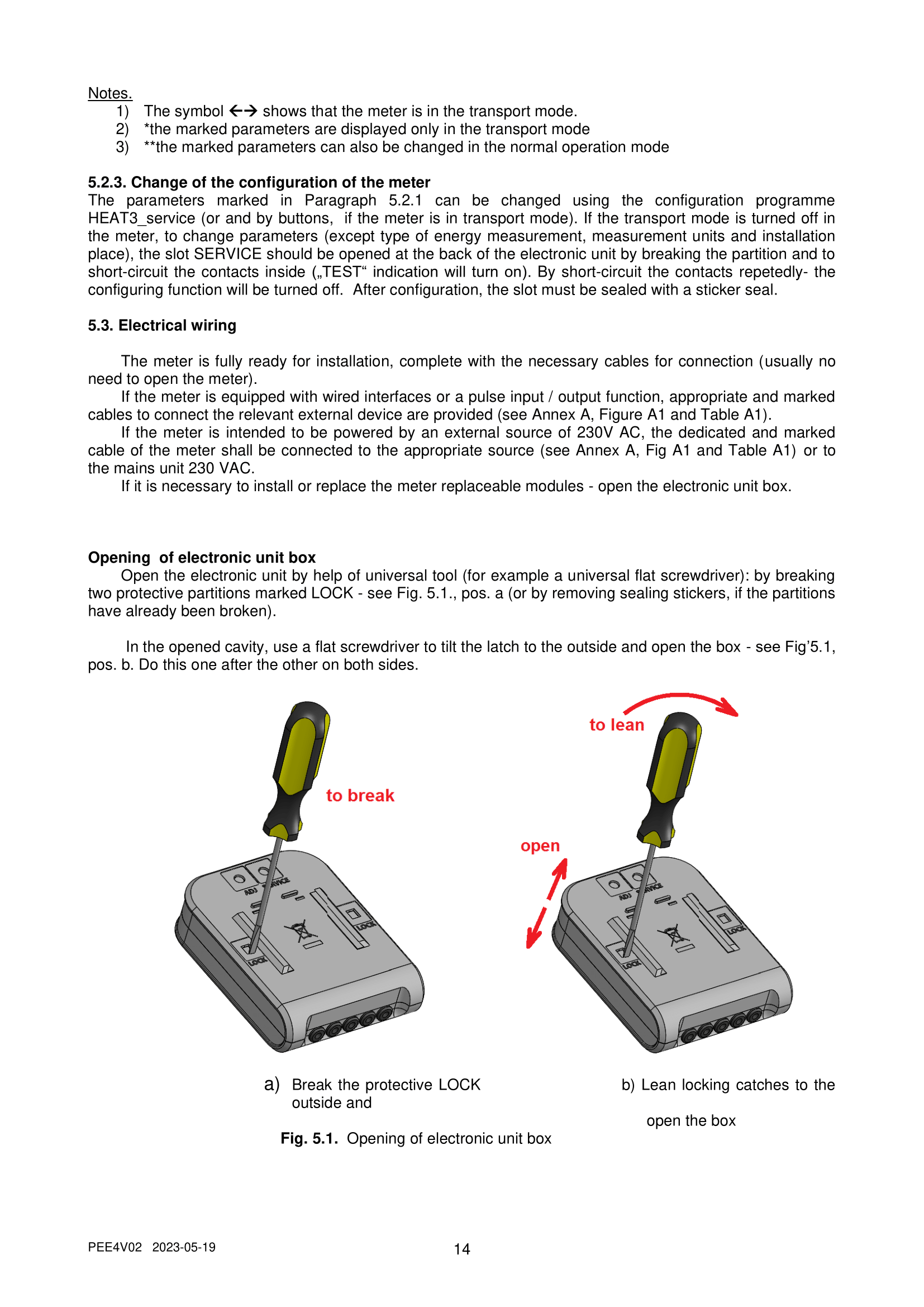

5.2.3. Change of the configuration of the meter
The parameters marked in Paragraph 5.2.1 can be changed using the configuration programme
HEAT3_service (or and by buttons, if the meter is in transport mode). If the transport mode is turned off in
the meter, to change parameters (except type of energy measurement, measurement units and installation
place), the slot SERVICE should be opened at the back of the electronic unit by breaking the partition and to
short-circuit the contacts inside (,TEST" indication will turn on). By short-circuit the contacts repetedly- the
configuring function will be turned off. After configuration, the slot must be sealed with a sticker seal.
5.3. Electrical wiring
The meter is fully ready for installation, complete with the necessary cables for connection (usually no
need to open the meter).
If the meter is equipped with wired interfaces or a pulse input / output function, appropriate and marked
cables to connect the relevant external device are provided (see Annex A, Figure A1 and Table At).
If the meter is intended to be powered by an external source of 230V AC, the dedicated and marked
cable of the meter shall be connected to the appropriate source (see Annex A, Fig A1 and Table A1) or to
the mains unit 230 VAC.
If it is necessary to install or replace the meter replaceable modules - open the electronic unit box.
Opening of electronic unit box
Open the electronic unit by help of universal tool (for example a universal flat screwdriver): by breaking
two protective partitions marked LOCK - see Fig. 5.1., pos. a (or by removing sealing stickers, if the partitions
have already been broken).
In the opened cavity, use a flat screwdriver to tilt the latch to the outside and open the box - see Fig'5.1,
pos. b. Do this one after the other on both sides.
to lean
to break
open
a) Break the protective LOCK b) Lean locking catches to the
outside and
open the box
Fig. 5.1. Opening of electronic unit box
PEE4V02 2023-05-19 14

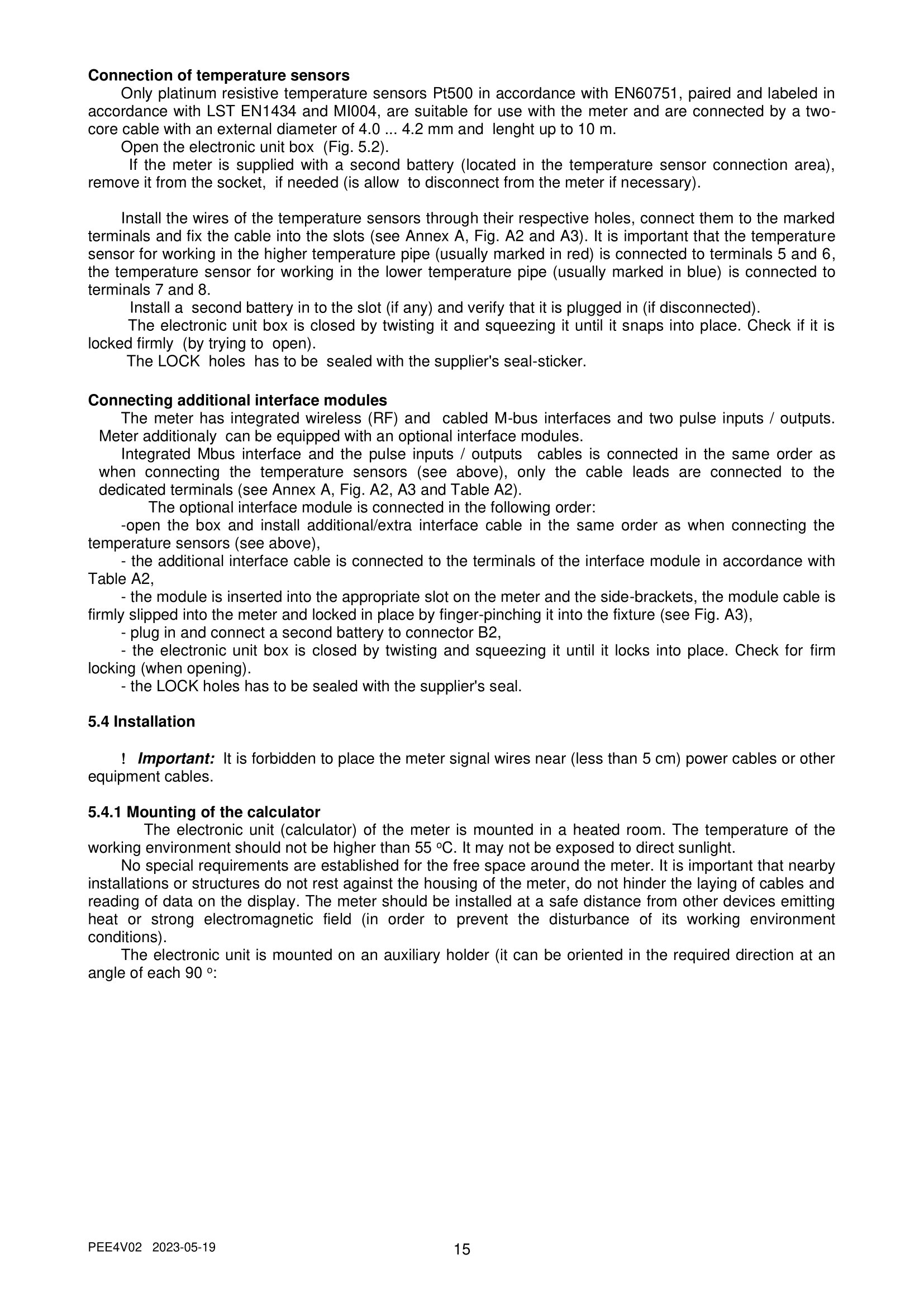

Connection of temperature sensors
Only platinum resistive temperature sensors Pt500 in accordance with EN60751, paired and labeled in
accordance with LST EN1434 and M1004, are suitable for use with the meter and are connected by a two-
core cable with an external diameter of 4.0 ... 4.2 mm and lenght up to 10 m.
Open the electronic unit box (Fig. 5.2).
If the meter is supplied with a second battery (located in the temperature sensor connection area),
remove it from the socket, if needed (is allow to disconnect from the meter if necessary).
Install the wires of the temperature sensors through their respective holes, connect them to the marked

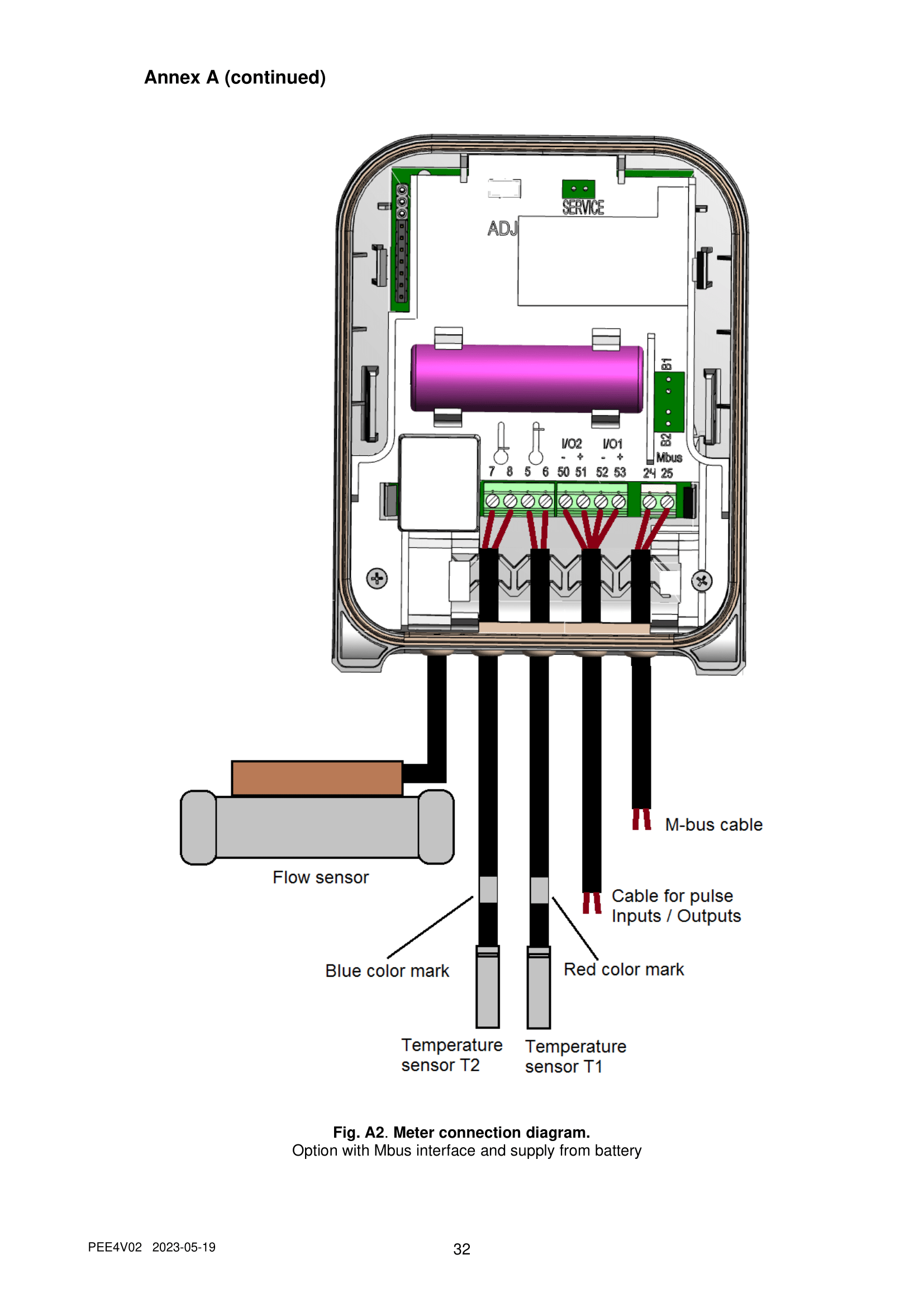

terminals and fix the cable into the slots (see Annex A, Fig. A2 and A3). It is important that the temperature
sensor for working in the higher temperature pipe (usually marked in red) is connected to terminals 5 and 6,
the temperature sensor for working in the lower temperature pipe (usually marked in blue) is connected to
terminals 7 and 8.
Install a second battery in to the slot (if any) and verify that it is plugged in (if disconnected).
The electronic unit box is closed by twisting it and squeezing it until it snaps into place. Check if it is
locked firmly (by trying to open).
The LOCK holes has to be sealed with the supplier's seal-sticker.
Connecting additional interface modules
The meter has integrated wireless (RF) and cabled M-bus interfaces and two pulse inputs / outputs.
Meter additionaly can be equipped with an optional interface modules.
Integrated Mbus interface and the pulse inputs / outputs cables is connected in the same order as
when connecting the temperature sensors (see above), only the cable leads are connected to the

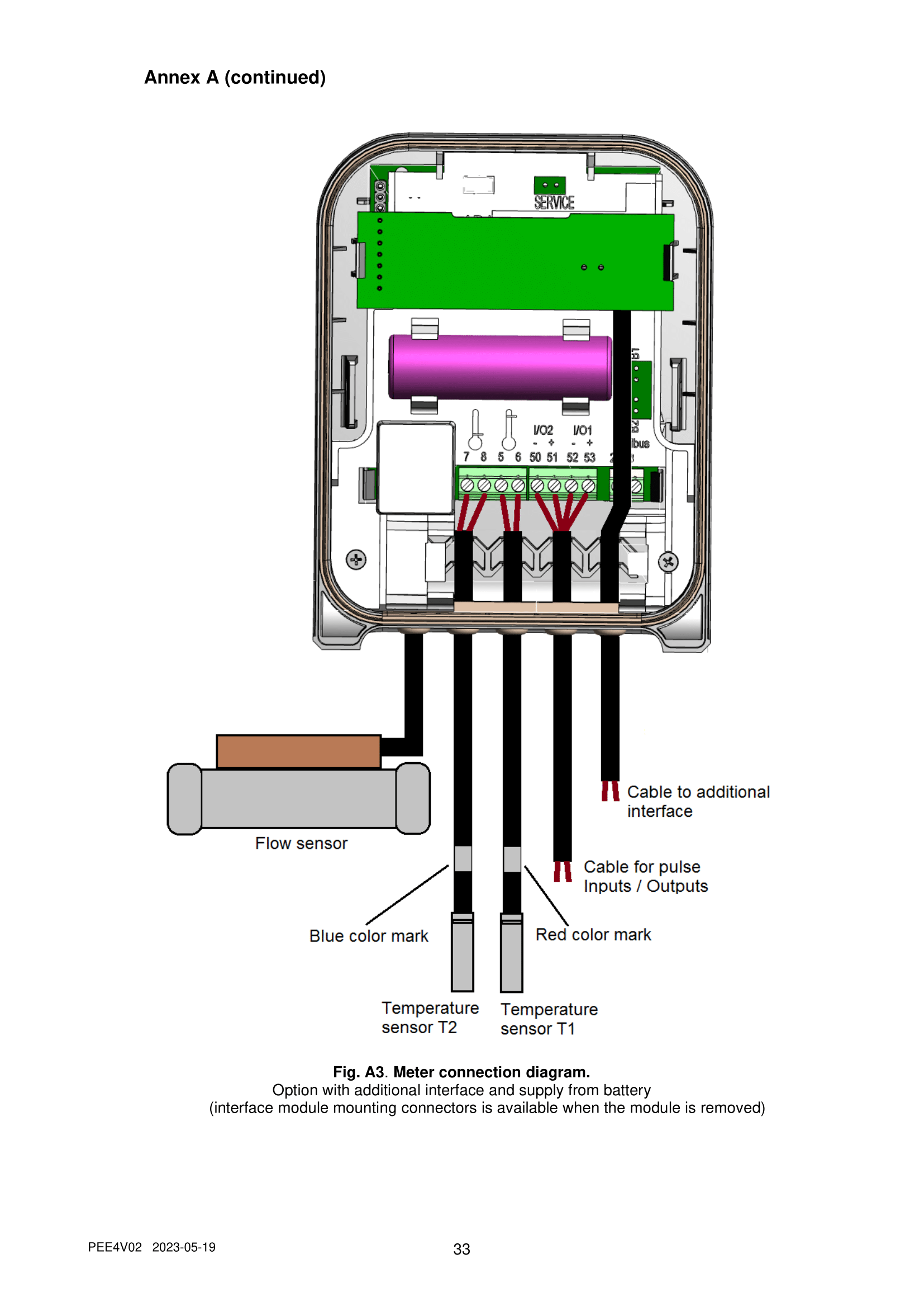

dedicated terminals (see Annex A, Fig. A2, A3 and Table A2).
The optional interface module is connected in the following order:
-open the box and install additional/extra interface cable in the same order as when connecting the
temperature sensors (see above),
- the additional interface cable is connected to the terminals of the interface module in accordance with
Table A2,
- the module is inserted into the appropriate slot on the meter and the side-brackets, the module cable is
firmly slipped into the meter and locked in place by finger-pinching it into the fixture (see Fig. A3),
- plug in and connect a second battery to connector B2,
- the electronic unit box is closed by twisting and squeezing it until it locks into place. Check for firm
locking (when opening).
- the LOCK holes has to be sealed with the supplier's seal.
5.4 Installation
!' Important: It is forbidden to place the meter signal wires near (less than 5 cm) power cables or other
equipment cables.
5.4.1 Mounting of the calculator
The electronic unit (calculator) of the meter is mounted in a heated room. The temperature of the
working environment should not be higher than 55 °C. It may not be exposed to direct sunlight.
No special requirements are established for the free space around the meter. It is important that nearby
installations or structures do not rest against the housing of the meter, do not hinder the laying of cables and
reading of data on the display. The meter should be installed at a safe distance from other devices emitting
heat or strong electromagnetic field (in order to prevent the disturbance of its working environment
conditions).

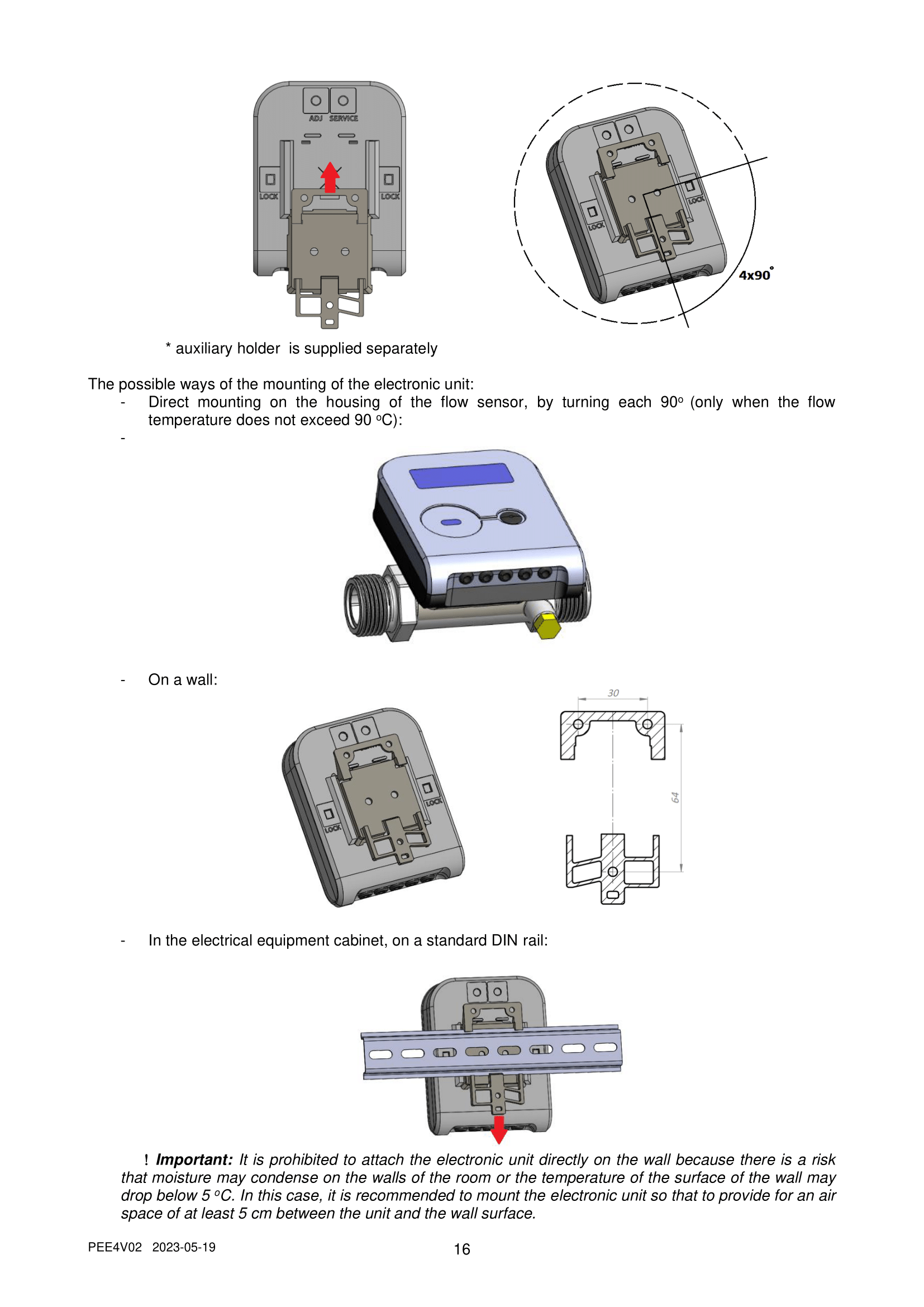

The electronic unit is mounted on an auxiliary holder (it can be oriented in the required direction at an
angle of each 90 ©:
PEE4V02 2023-05-19 15
a Ng
/ \
/ \
\
\
\ .
\ 4x90
N
* auxiliary holder is supplied separately
The possible ways of the mounting of the electronic unit:
- Direct mounting on the housing of the flow sensor, by turning each 90° (only when the flow
temperature does not exceed 90 °C):
AY
|
- Inthe electrical equipment cabinet, on a standard DIN rail:
! Important: It is prohibited to attach the electronic unit directly on the wall because there is a risk
that moisture may condense on the walls of the room or the temperature of the surface of the wall may
drop below 5 °C. In this case, it is recommended to mount the electronic unit so that to provide for an air
space of at least 5 cm between the unit and the wall surface.
PEE4V02 2023-05-19 16

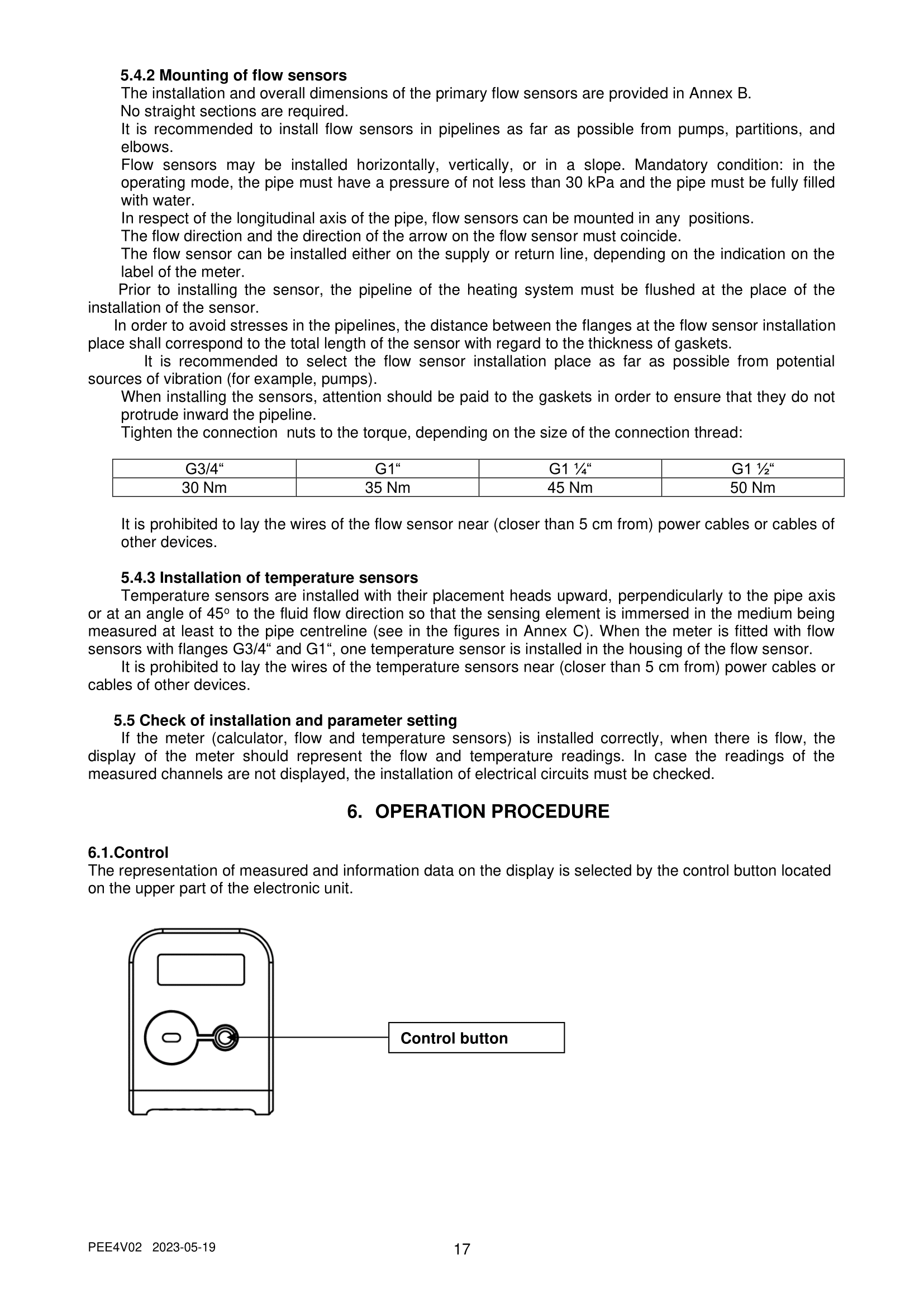

5.4.2 Mounting of flow sensors
The installation and overall dimensions of the primary flow sensors are provided in Annex B.
No straight sections are required.
It is recommended to install flow sensors in pipelines as far as possible from pumps, partitions, and
elbows.
Flow sensors may be installed horizontally, vertically, or in a slope. Mandatory condition: in the
operating mode, the pipe must have a pressure of not less than 30 kPa and the pipe must be fully filled
with water.
In respect of the longitudinal axis of the pipe, flow sensors can be mounted in any positions.
The flow direction and the direction of the arrow on the flow sensor must coincide.
The flow sensor can be installed either on the supply or return line, depending on the indication on the
label of the meter.
Prior to installing the sensor, the pipeline of the heating system must be flushed at the place of the
installation of the sensor.
In order to avoid stresses in the pipelines, the distance between the flanges at the flow sensor installation
place shall correspond to the total length of the sensor with regard to the thickness of gaskets.
It is recommended to select the flow sensor installation place as far as possible from potential
sources of vibration (for example, pumps).
When installing the sensors, attention should be paid to the gaskets in order to ensure that they do not
protrude inward the pipeline.
Tighten the connection nuts to the torque, depending on the size of the connection thread:
It is prohibited to lay the wires of the flow sensor near (closer than 5 cm from) power cables or cables of
other devices.
5.4.3 Installation of temperature sensors
Temperature sensors are installed with their placement heads upward, perpendicularly to the pipe axis
or at an angle of 45° to the fluid flow direction so that the sensing element is immersed in the medium being
measured at least to the pipe centreline (see in the figures in Annex C). When the meter is fitted with flow
sensors with flanges G3/4" and G1“, one temperature sensor is installed in the housing of the flow sensor.
It is prohibited to lay the wires of the temperature sensors near (closer than 5 cm from) power cables or
cables of other devices.
5.5 Check of installation and parameter setting
If the meter (calculator, flow and temperature sensors) is installed correctly, when there is flow, the
display of the meter should represent the flow and temperature readings. In case the readings of the
measured channels are not displayed, the installation of electrical circuits must be checked.
6. OPERATION PROCEDURE
6.1.Control
The representation of measured and information data on the display is selected by the control button located
on the upper part of the electronic unit.
PEE4V02 2023-05-19 17

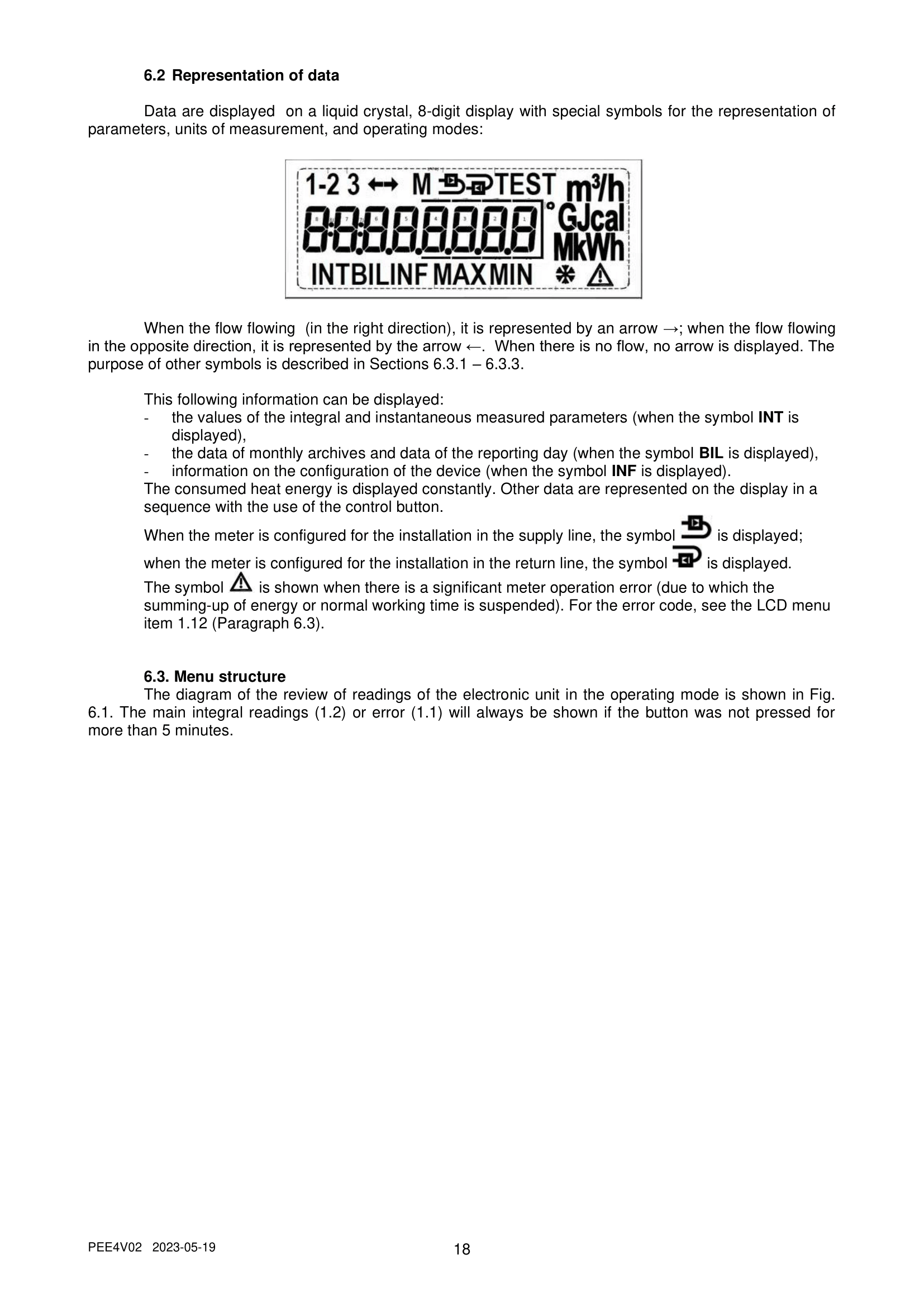

6.2 Representation of data
Data are displayed on a liquid crystal, 8-digit display with special symbols for the representation of
parameters, units of measurement, and operating modes:
When the flow flowing (in the right direction), it is represented by an arrow —; when the flow flowing
in the opposite direction, it is represented by the arrow «—. When there is no flow, no arrow is displayed. The
purpose of other symbols is described in Sections 6.3.1 — 6.3.3.
This following information can be displayed:
- the values of the integral and instantaneous measured parameters (when the symbol INT is
displayed),
- the data of monthly archives and data of the reporting day (when the symbol BIL is displayed),
- information on the configuration of the device (when the symbol INF is displayed).
The consumed heat energy is displayed constantly. Other data are represented on the display in a
sequence with the use of the control button.
When the meter is configured for the installation in the supply line, the symbol 5B is displayed;
when the meter is configured for the installation in the return line, the symbol = is displayed.
The symbol A is shown when there is a significant meter operation error (due to which the
summing-up of energy or normal working time is suspended). For the error code, see the LCD menu
item 1.12 (Paragraph 6.3).
6.3. Menu structure
The diagram of the review of readings of the electronic unit in the operating mode is shown in Fig.
6.1. The main integral readings (1.2) or error (1.1) will always be shown if the button was not pressed for
more than 5 minutes.
PEE4V02 2023-05-19 18
INT BIL INF
Integral parameters Statisucal data Informative parameters
= Short press
Long press Shift down
Shift to the right
Fig. 6.1 The diagram of the review ot readings in the operating mode.
6.3.1. Viewing the readings in the operating mode (User Menu)
Note: This is a complete list of represented parameters. It can be shortened at a specific meter for the
convenience of the user.
[ID [Parameter ~~ [Vawe ~~ [Notes ~~]
=
1.1 Integral heating energy 00000 000
: MWh
INT
1.2 | | cool os
; ntegral cooling energy 00000 000
: MWh
INT Ee;
1 = In the case of a combined
1.3 Integral energy, Tariff 1 device, the “%f" shows that
00000.000 MWh | the tarit is linked with a
INT cooling energy meter
2 I) In the case of a combined
1.4 Integral energy, Tariff 2 device, the “Xt” shows that
00000.000 MWh | the tarit is linked with a
INT cooling energy meter
PEE4V02 2023-05-19 19

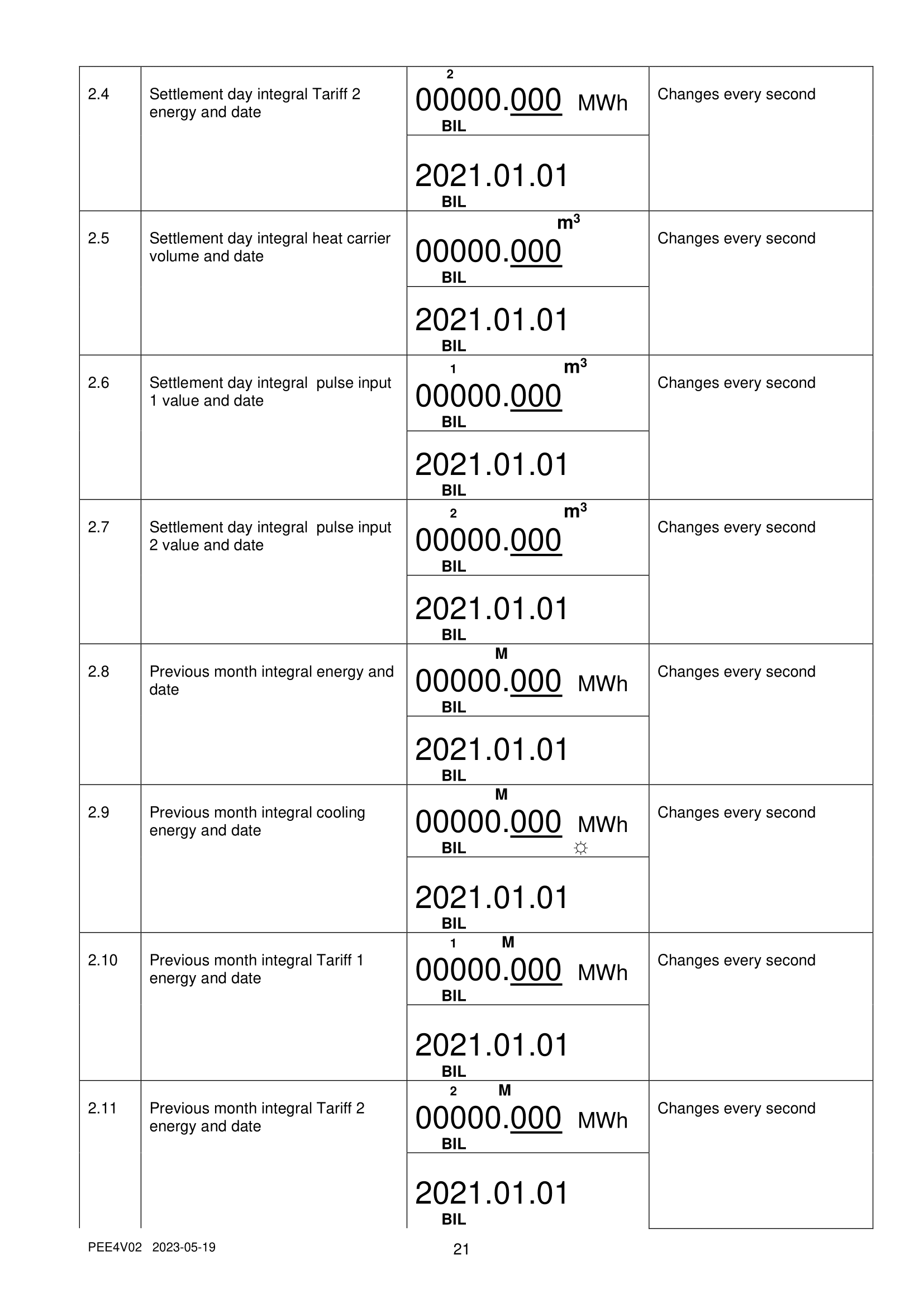

2
24 Settlement day integral Tariff 2 Changes every second
energy and date 00000.000 MWh ad
2021.01.01
BIL
m3
25 Settl t day int | heat i Ch d
salemens pg egral heat carrier 00000.000 anges every secon
BIL
2021.01.01
BIL
2.6 Settl t day int | pulse input ! = Ch d
\ : ov: i sing egral pulse inpu 00000 .000 anges every secon
BIL
2021.01.01
BIL
2:7 Settl t day int | pulse input 2 m? Ch d
: ettlement day integral pulse inpu anges every secon
BIL
2021.01.01
BIL
2.8 i month integral energy and 00000 .000 MWh Changes every second
BIL
2021.01.01
BIL
M
2.9 St © cooling 00000 .000 MWh hanges every second
2021.01.01
BIL
1 M
2.10 edith Tariff 1 00000 .000 MWh hanges every second
BIL
2021.01.01
BIL
2 M
2:11 Previ hi | Tariff 2 Ch d
Rhsdon diel ari 00000.000 MWh anges every secon
BIL
2021.01.01
BIL
PEE4V02 2023-05-19 21
M m?

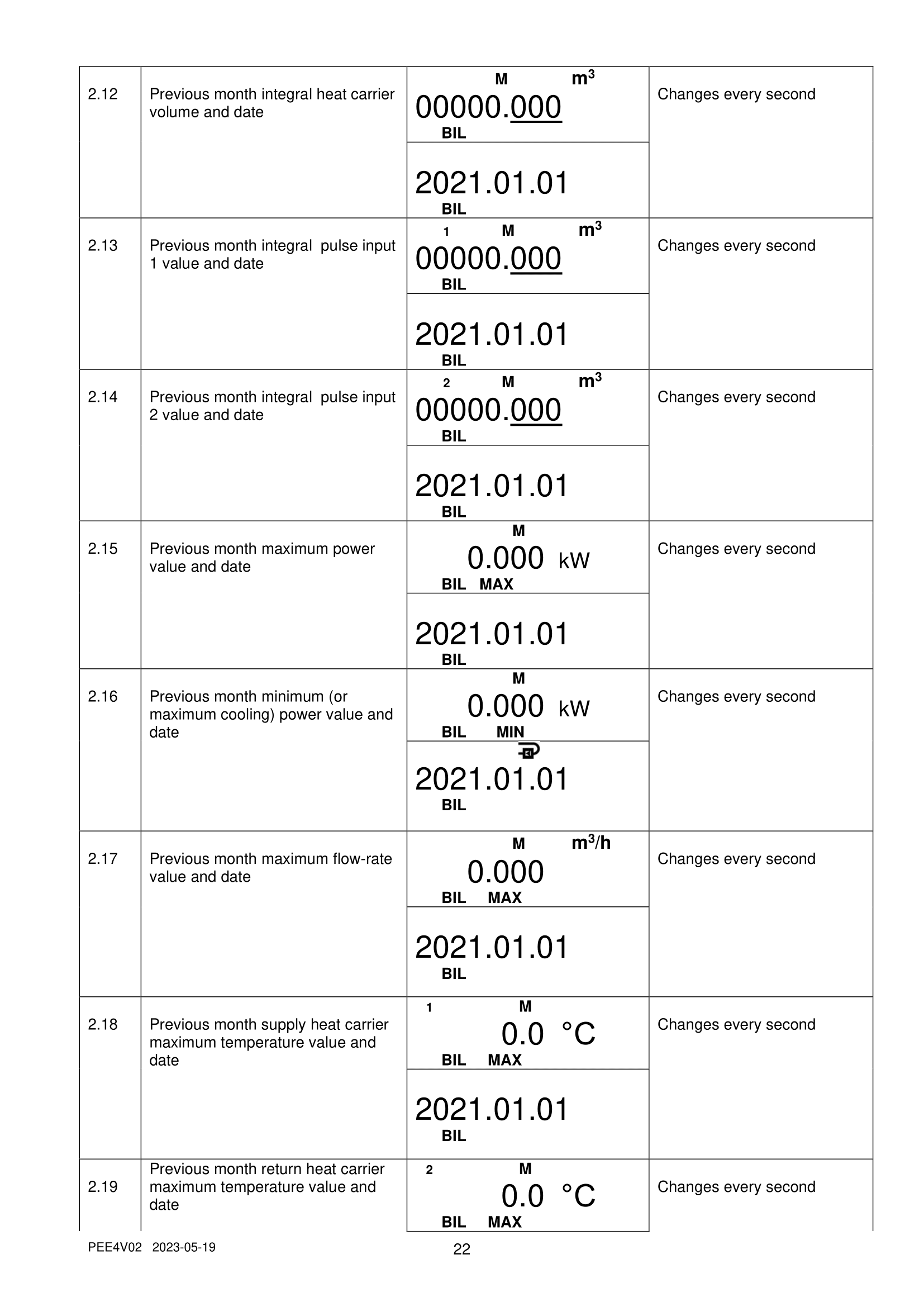

2.12 Previous month integral heat carrier Changes every second
volume and date 00000.000
BIL
2021.01.01
BIL
1 M md
2.13 Previous month integral pulse input Changes every second
BIL
2021.01.01
BIL
2 Mm m3
2.14 Previous month integral pulse input Changes every second
2 value and date 00000.000
BIL
2021.01.01
BIL
M
2.1 Previ h i Ch d
5 y rovious mont maximum power 0.000 KW anges every secon
BIL MAX
2021.01.01
BIL
M
2.16 Previ th mini Ch d
date BIL nS
2021.01.01
BIL
2.17 Previ th i fl t " mh Ch d
i revious month maximum flow-rate anges every secon
value and date 0 .000 : ’
BIL MAX
2021.01.01
BIL
1 M
2.18 Previous month supply heat carrier Changes every second
maximum temperature value and .
date BIL MAX
2021.01.01
BIL
Previous month return heat carrier 2 M
2.19 maximum temperature value and 0 0 o C Changes every second
date .
BIL MAX
PEE4V02 2023-05-19 22

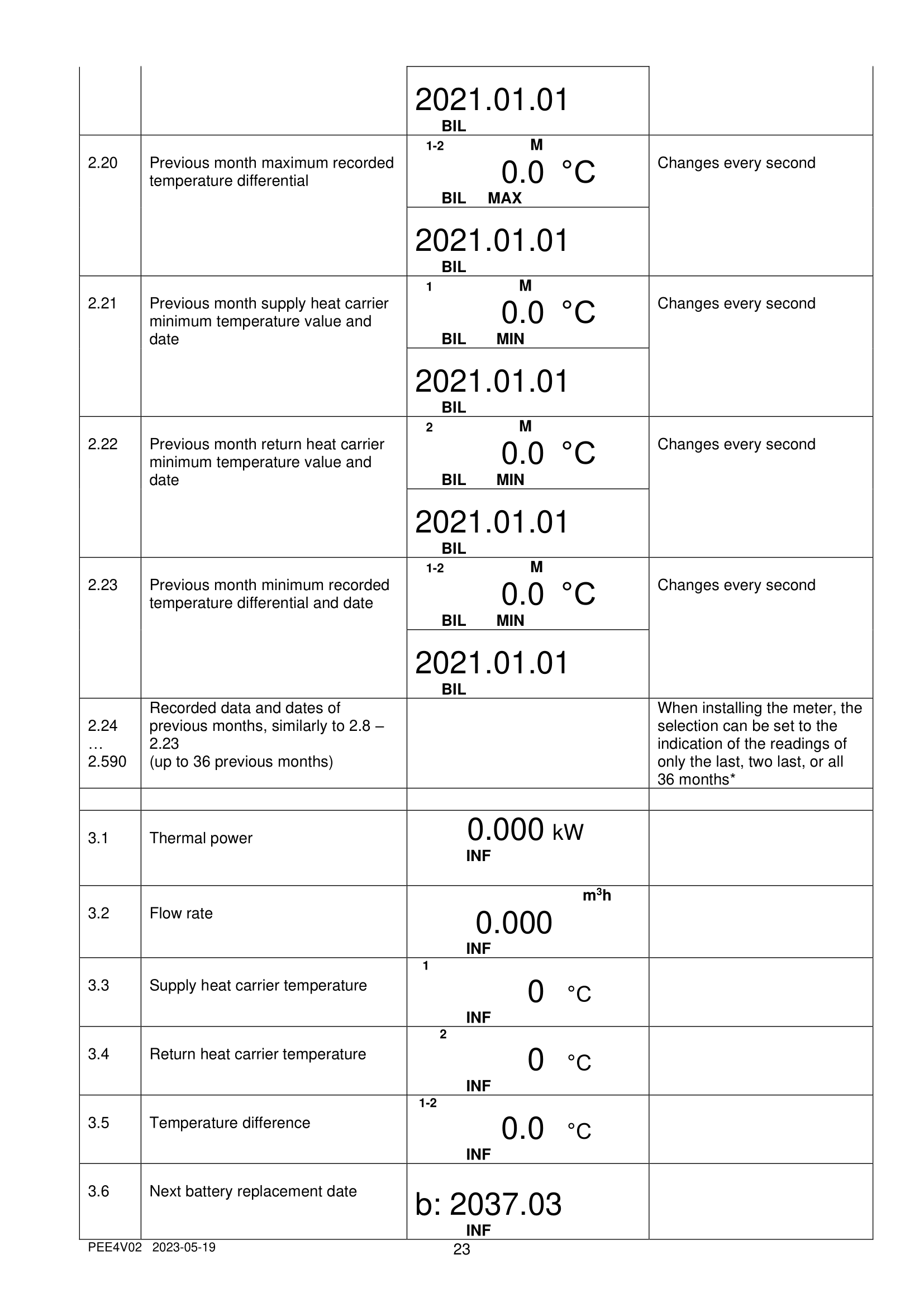

1-2 M
2.20 Previous month maximum recorded 0 0 o C Changes every second
temperature differential .
BIL MAX
1 M
2.21 Previous month supply heat carrier 0 0 8: Changes every second
minimum temperature value and .
date BIL MIN
2 M
2.22 Previous month return heat carrier 0 0 o C Changes every second
minimum temperature value and .
date BIL MIN
1-2 M
2.23 Previous month minimum recorded 0 0 o C Changes every second
temperature differential and date C
BIL MIN
Recorded data and dates of When installing the meter, the
2.24 previous months, similarly to 2.8 — selection can be set to the
hy 2.23 indication of the readings of
2.590 | (up to 36 previous months) only the last, two last, or all
36 months™
3.1 Thermal power 0 .000 kW
INF
mh
3.2 Flow rate 0 000
INF
1
3.3 Supply heat carrier temperature 0 °C
INF
2
3.4 Return heat carrier temperature 0 °C
INF
1-2
3.5 Temperature difference 0 0 °C
INF
3.6 Next battery replacement date b 2037 03
INF
PEE4V02 2023-05-19 23

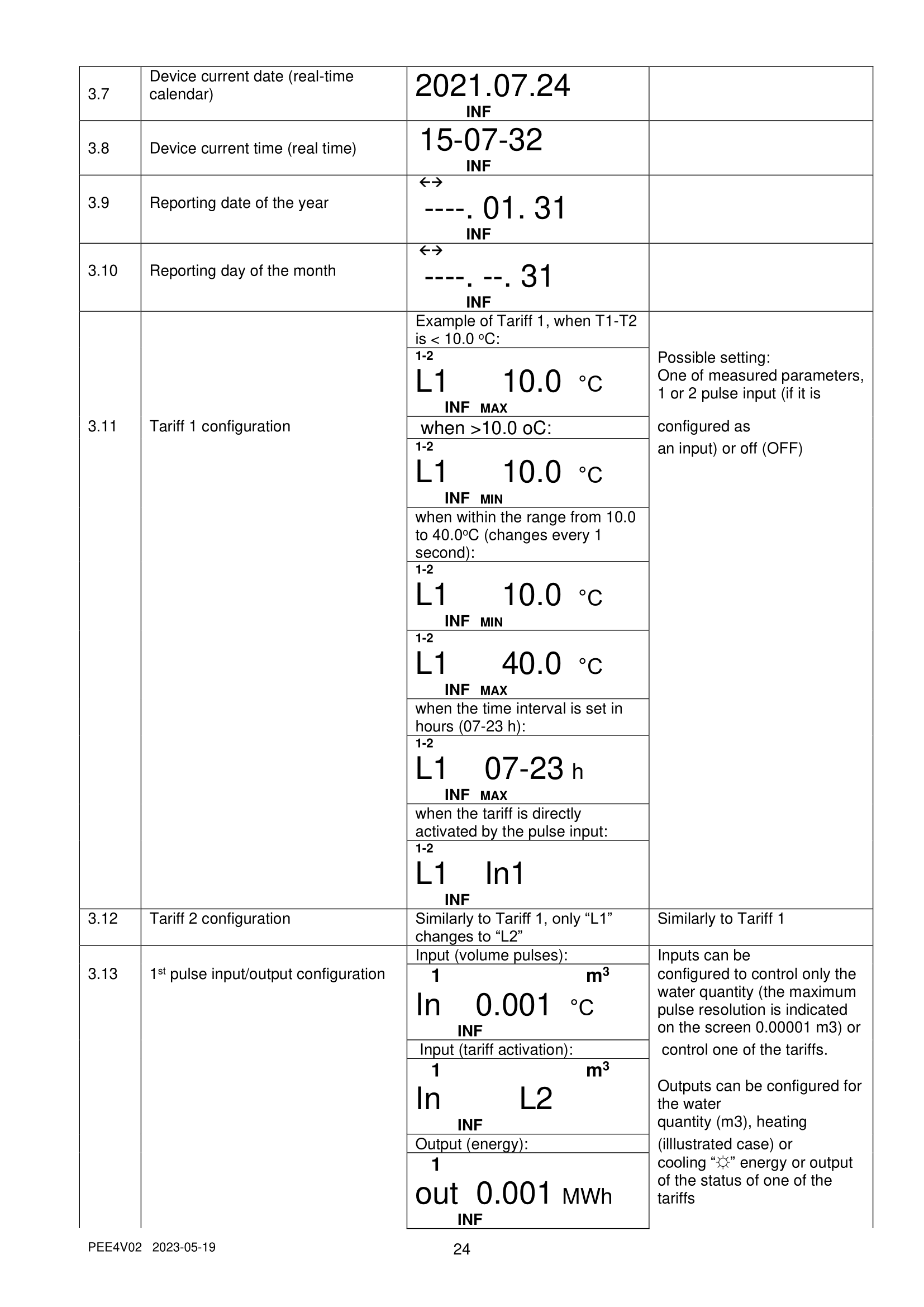

Device current date (real-time
INF
INF
3.9 Reporting date of the year ——— 01 31
INF
3.10 Reporting day of the month mee 31
INF
Example of Tariff 1, when T1-T2
is < 10.0 °C:
12 Possible setting:
L1 1 0 0 °C One of measured parameters,
® 1 or 2 pulse input (if it is
3.11 Tariff 1 configuration when >10.0 oC: configured as
1-2 an input) or off (OFF)
L1 10.0 °c
INF_MIN
when within the range from 10.0
to 40.0°C (changes every 1
second):
1-2
INF_MIN
1-2
L1 40.0 °c
when the time interval is set in
hours (07-23 h):
1-2
when the tariff is directly
activated by the pulse input:
1-2
INF
3.12 Tariff 2 configuration Similarly to Tariff 1, only “L1” Similarly to Tariff 1
changes to “L2"
Inputs can be
3.13 1s! pulse input/output configuration 1 m3 configured to control only the
water quantity (the maximum
In 0.001 °c pulse resolution is indicated
INF on the screen 0.00001 m3) or
Input (tariff activation): control one of the tariffs.
! m [¢] bi fi d fi
utputs can be configured for
| n L2 the water
INF quantity (m3), heating
(illustrated case) or
1 cooling “Xf” energy or output
of the status of one of the
out 0.001 mwn tariffs
INF
PEE4V02 2023-05-19 24
Output (tariff status):
1
out L1
INF

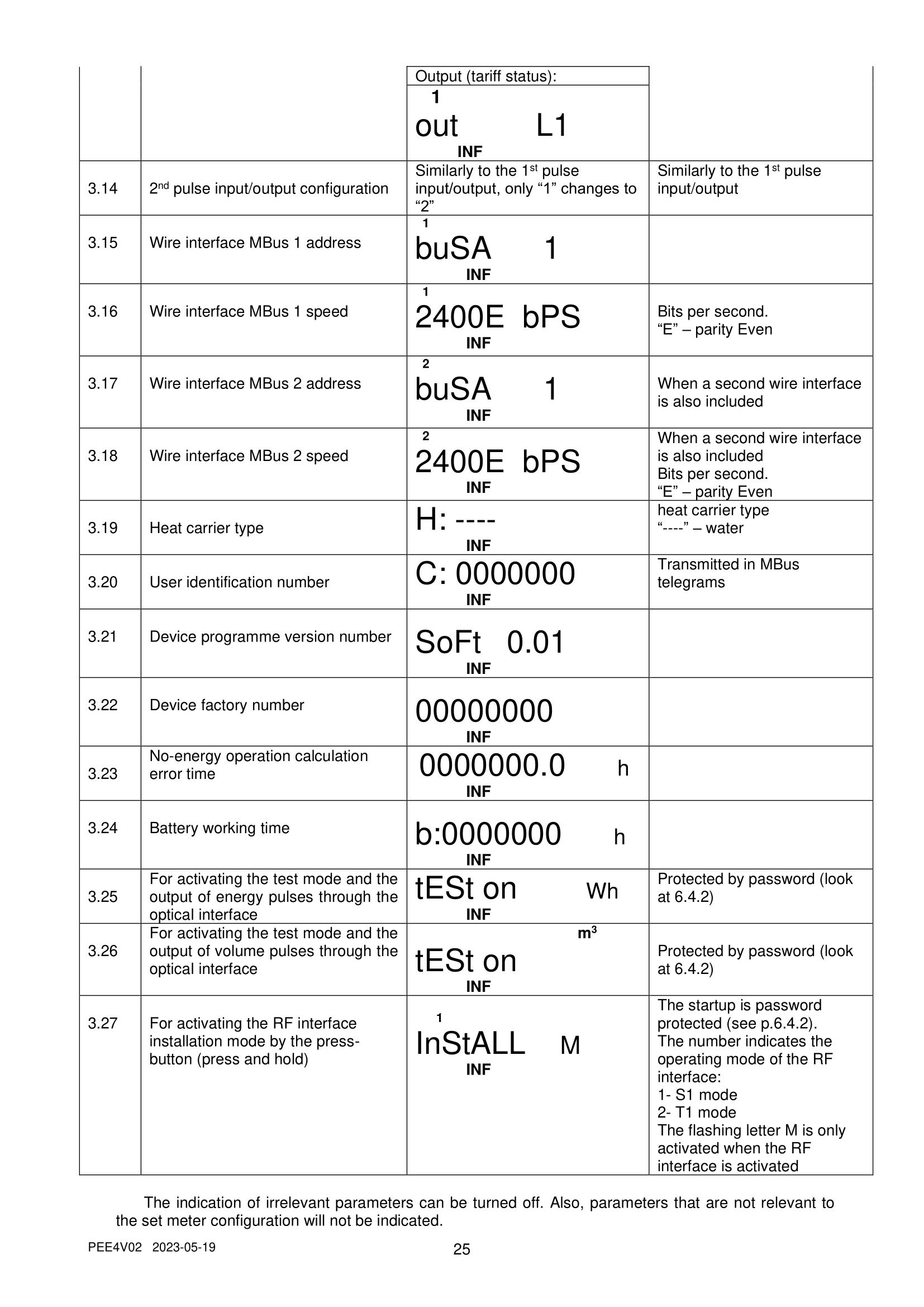

Similarly to the 1¢t pulse Similarly to the 1%! pulse
3.14 2" pulse input/output configuration | input/output, only “1” changes to | input/output
aon
1
3.15 Wire interface MBus 1 address buSA 1
INF
1
3.16 | Wire interface MBus 1 speed 2400 E bPS Bits per second.
“E” — parity Even
INF ps
2
3.17 Wire interface MBus 2 address buSA 1 When a second wire interface
is also included
INF
2 When a second wire interface
3.18 Wire interface MBus 2 speed 2400 E bPS is also included
Bits per second.
INF “E” — parity Even
H . heat carrier type
3.19 | Heat carrier type » TTT “--” — water
INF
C a 0000000 Transmitted in MBus
3.20 User identification number . telegrams
INF
Device programme version number So Ft 0 01
INF
3.22 Device factory number 00000000
INF
No-energy operation calculation
3.23 error time 0000000 . 0 h
INF
3.24 Battery working time b . 0000000 h
INF
For activating the test mode and the Protected by password (look
3.25 output of energy pulses through the tESt on Wh at 6.4.2)
optical interface INF
For activating the test mode and the m?
3.26 output of volume pulses through the Protected by password (look
optical interface t E St on at 6.4.2)
INF
The startup is password
3.27 For activating the RF interface 1 protected (see p.6.4.2).
installation mode by the press- INStALL M The number indicates the
button (press and hold) INF operating mode of the RF
interface:
1- S1 mode
2- T1 mode
The flashing letter M is only
activated when the RF
interface is activated
The indication of irrelevant parameters can be turned off. Also, parameters that are not relevant to
the set meter configuration will not be indicated.
PEE4V02 2023-05-19 25

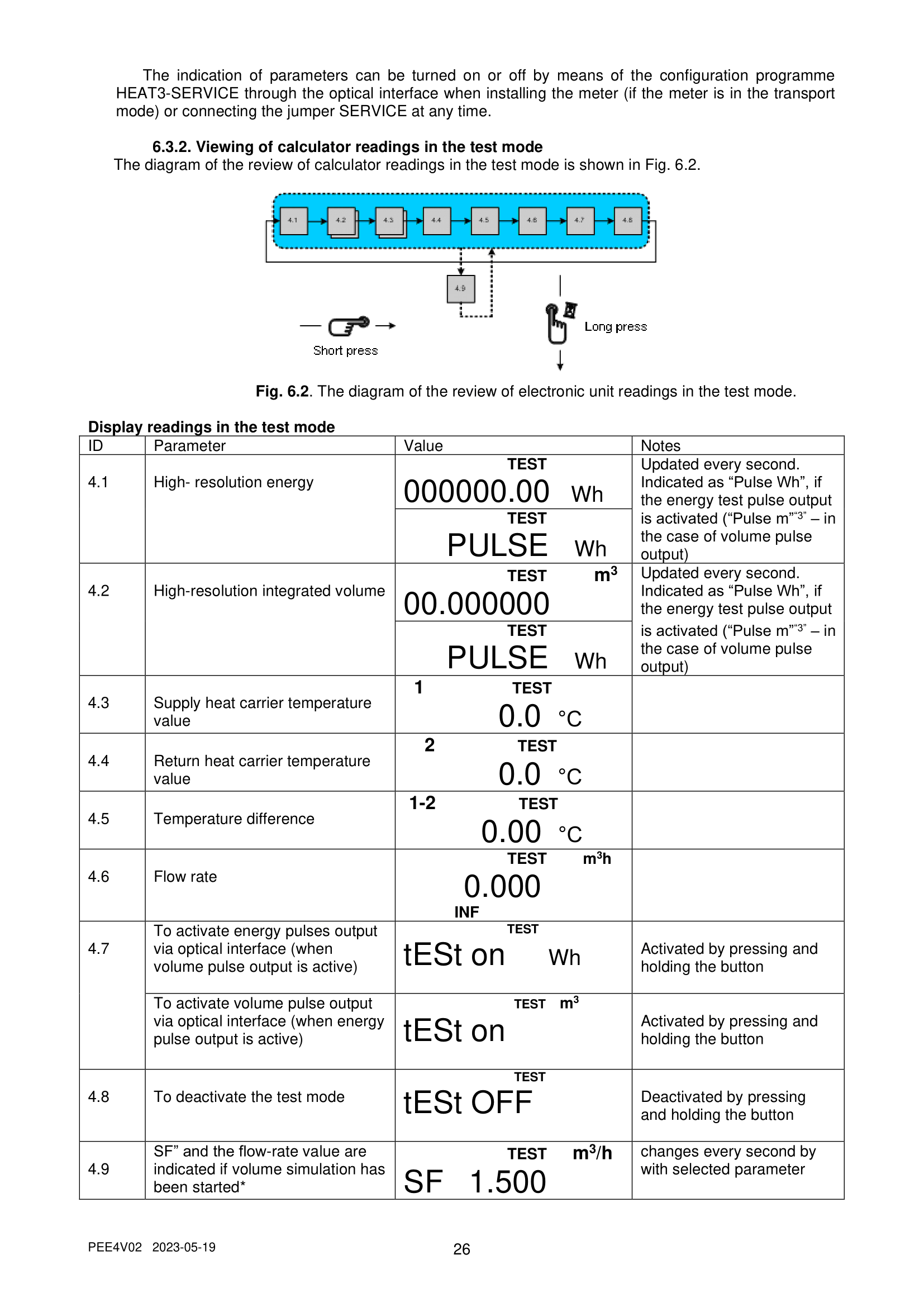

The indication of parameters can be turned on or off by means of the configuration programme
HEAT3-SERVICE through the optical interface when installing the meter (if the meter is in the transport
mode) or connecting the jumper SERVICE at any time.
6.3.2. Viewing of calculator readings in the test mode
The diagram of the review of calculator readings in the test mode is shown in Fig. 6.2.
a | | as ar
_— (pd — Long press
Short press |
Fig. 6.2. The diagram of the review of electronic unit readings in the test mode.
Display readings in the test mode
[ID [Parameter ~~ [value ~~ [Notes |
TEST Updated every second.
4.1 High- resolution energy Indicated as “Pulse Wh”, if
000000 .00 Wh the energy test pulse output
TEST is activated (“Pulse m™® —in
the case of volume pulse
PULSE wh | oipu
TEST m?3 | Updated every second.
4.2 High-resolution integrated volume 00 000000 Indicated as “Pulse Wh”, if
. the energy test pulse output
TEST is activated (“Pulse m”? — in
the case of volume pulse
PULSE wh | quot
: upply heat carrier temperature
value 0 .0 °C
Ad B i 2 TEST
5 eturn heat carrier temperature
value 0 .0 °C
AR i if 1-2 TEST
. emperature difference 0 0 0 .
TEST mh
4.6 Flow rate 0 000
INF
= via optical interface (when ctivated by pressing an
volume pulse output is active) tESt on Wh holding the button
To activate volume pulse output TEST m?
via optical interface (when energy Activated by pressing and
pulse output is active) tESt on holding the button
TEST
4.8 To deactivate the test mode t E St 0 F F Lo id pressing
SF” and the flow-rate value are TEST m3h changes every second by
indicated if volume simulation has with selected parameter
been started” SF 1 .500
PEE4V02 2023-05-19 26

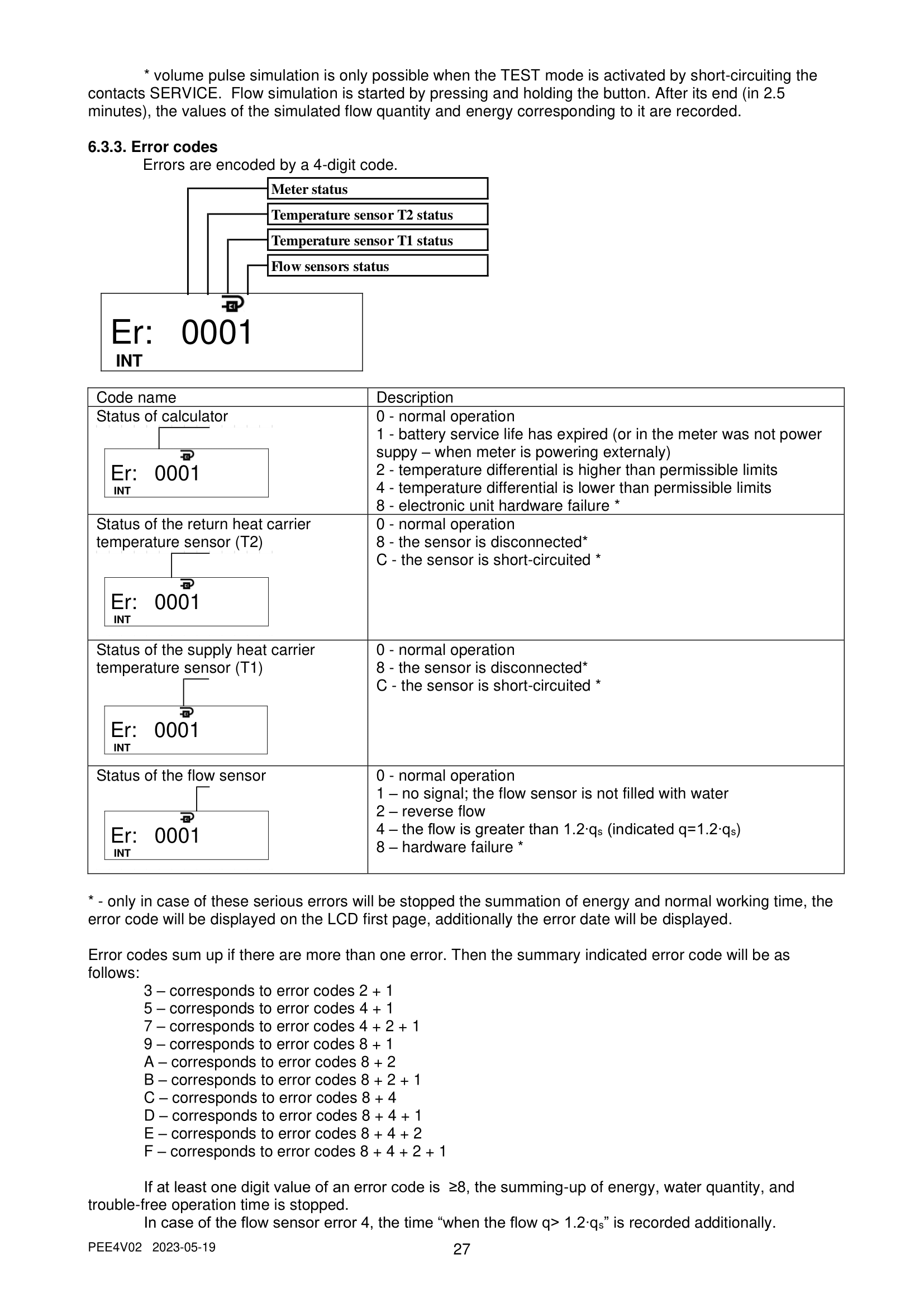

* volume pulse simulation is only possible when the TEST mode is activated by short-circuiting the
contacts SERVICE. Flow simulation is started by pressing and holding the button. After its end (in 2.5
minutes), the values of the simulated flow quantity and energy corresponding to it are recorded.
6.3.3. Error codes
Errors are encoded by a 4-digit code.
=
INT
Status of calculator 0 - normal operation
1 - battery service life has expired (or in the meter was not power
suppy — when meter is powering externaly)
Er: 0001 2 - temperature differential is higher than permissible limits
INT 4 - temperature differential is lower than permissible limits
8 - electronic unit hardware failure *
