Diehl Sharky 775 Technical Datasheet.pdf
Technical Datasheet
Diehl Sharky 775 Heat &
Cooling Meter

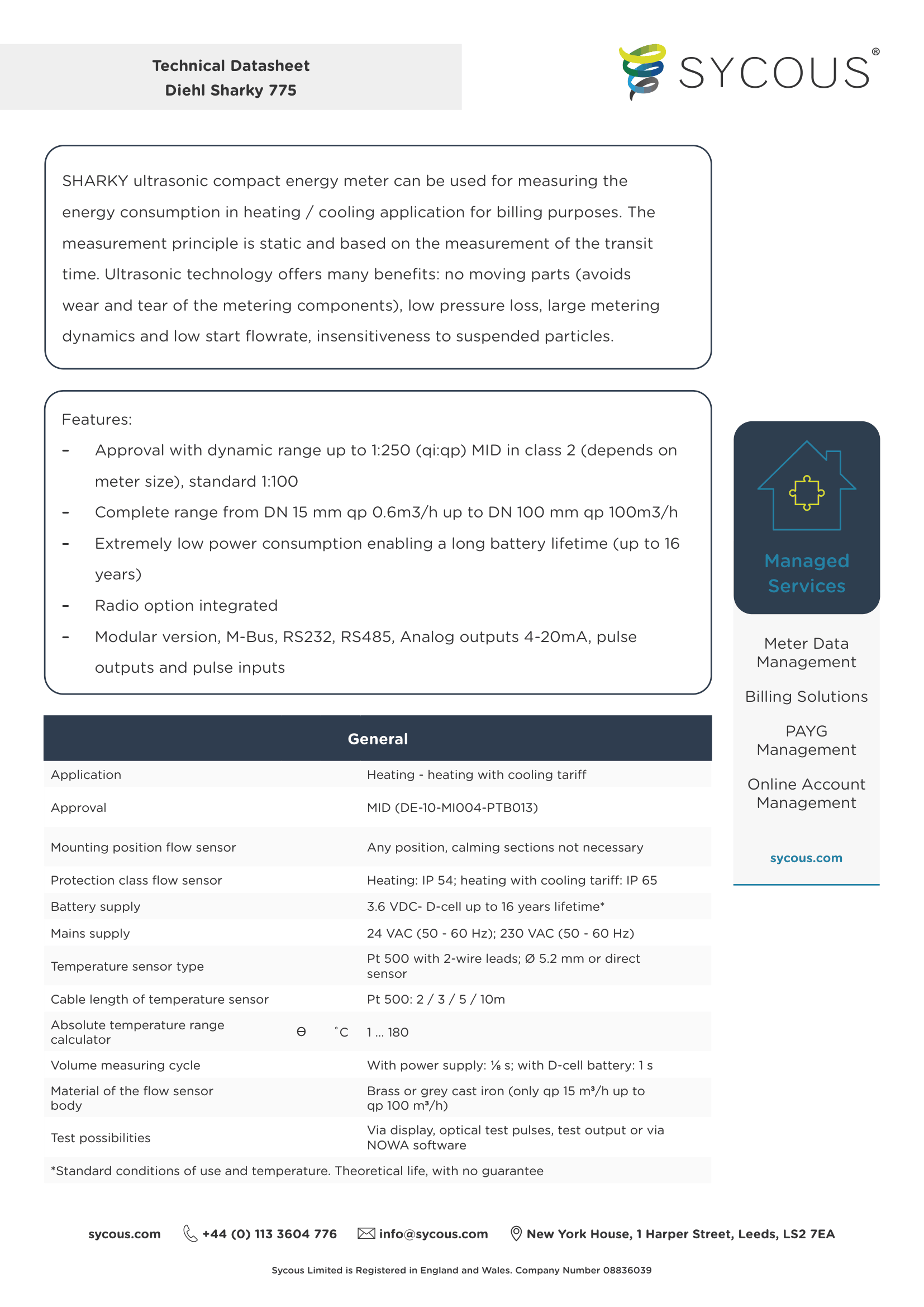

The SHARKY 775 is an ultrasonic compact energy meter for measuring energy consumption
in heating and cooling applications for billing purposes . It measures by transit time , so there
are no moving parts to wear , with low pressure loss , large metering dynamics , a low start
fl ow rate and insensitivity to suspended particles . It has extremely low power consumption
for a battery life of up to 16 years , an optional integrated radio and a modular design with
MBus , RS 232, RS 485, analogue 4 to 20 mA and pulse outputs .
Features :
MID approval with dynamic range up to
1:250 ( class 2, depends on size )
Sizes from DN 15 to DN 100, Qp 0.6 to 100
m ³ / h
Battery life of up to 16 years
Integrated radio option
Modular : MBus , RS 232, RS 485, 4 to 20
mA , pulse in and out
8 digit LCD display
Managed
Services
Meter Data
Management
Billing Solutions
PAYG
Management
Online Account
Management
sycous . com
sycous . com +44 (0) 113 3604 776 info @ sycous . com New York House , 1 Harper Street , Leeds , LS 2 7 EA
Sycous Limited is Registered in England and Wales . Company Number 08836039
Technical Datasheet
Diehl Sharky 775 Heat & Cooling Meter

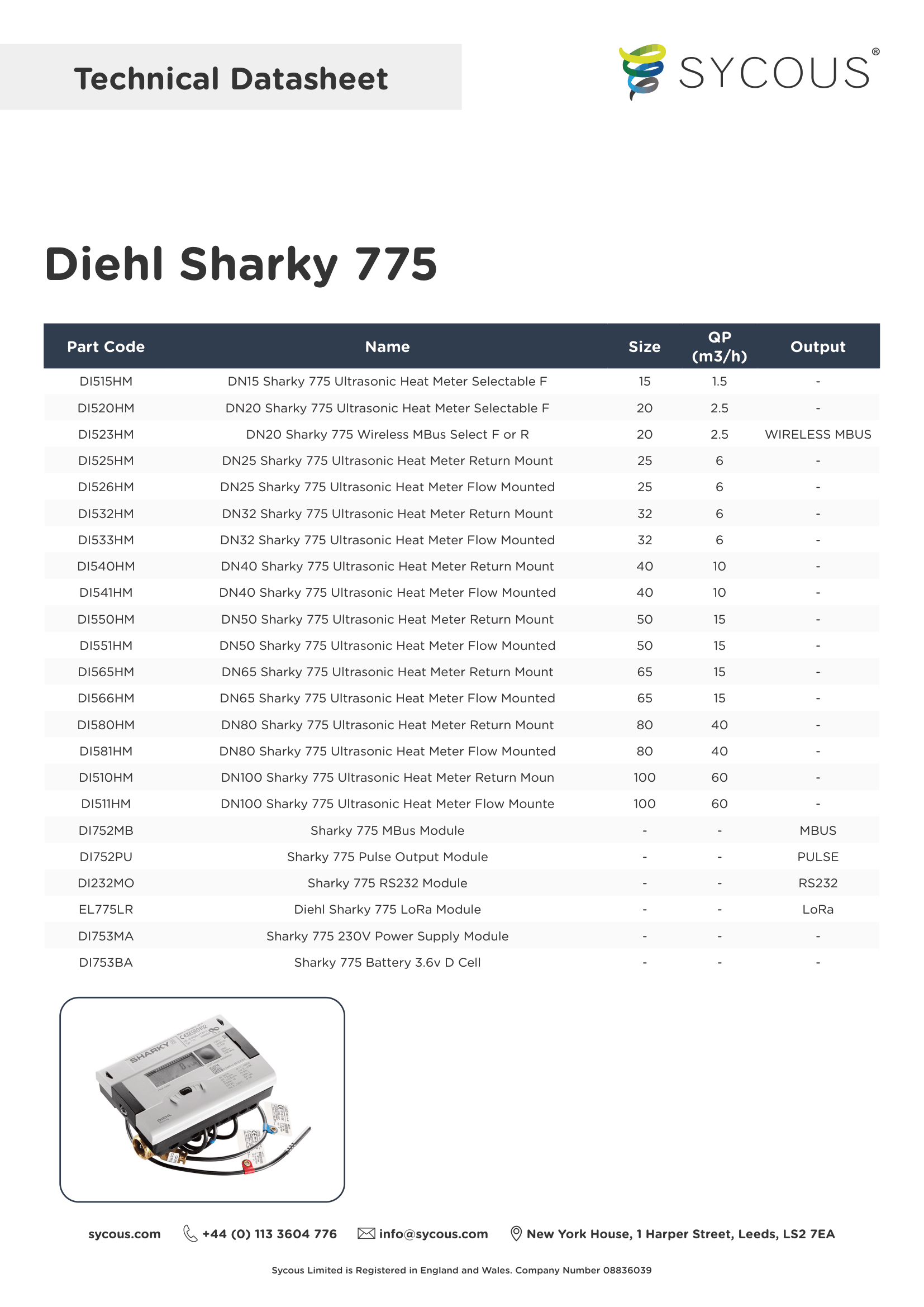

Part Codes
DI 525 HM DN 25 Sharky 775 Ultrasonic Heat Meter MBus , 25 mm , Qp 3.5
m ³ / h
DI 532 HM DN 32 Sharky 775 Ultrasonic Heat Meter MBus , 32 mm , Qp 6.0
m ³ / h
DI 540 HM DN 40 Sharky 775 Ultrasonic Heat Meter MBus , 40 mm , Qp 10.0
m ³ / h
DI 550 HM DN 50 Sharky 775 Ultrasonic Heat Meter MBus , 50 mm , Qp 15.0
m ³ / h
DI 526 HM DN 25 Sharky 775 Ultrasonic Heat Meter WMBus , 25 mm , Qp 3.5
m ³ / h
DI 533 HM DN 32 Sharky 775 Ultrasonic Heat Meter WMBus , 32 mm , Qp 6.0
m ³ / h
DI 541 HM DN 40 Sharky 775 Ultrasonic Heat Meter WMBus , 40 mm , Qp 10.0
m ³ / h
DI 551 HM DN 50 Sharky 775 Ultrasonic Heat Meter WMBus , 50 mm , Qp 15.0
m ³ / h
DI 775 MO Diehl Sharky 775 Modbus Card
Technical Speci fi cation
Display
Indication LCD , 8 digits
Units MWh , kWh , GJ , Gcal , MBtu , gal , GPM , ° C , ° F , m ³ , m ³ / h
Values displayed Energy , power , volume , fl ow rate , temperature

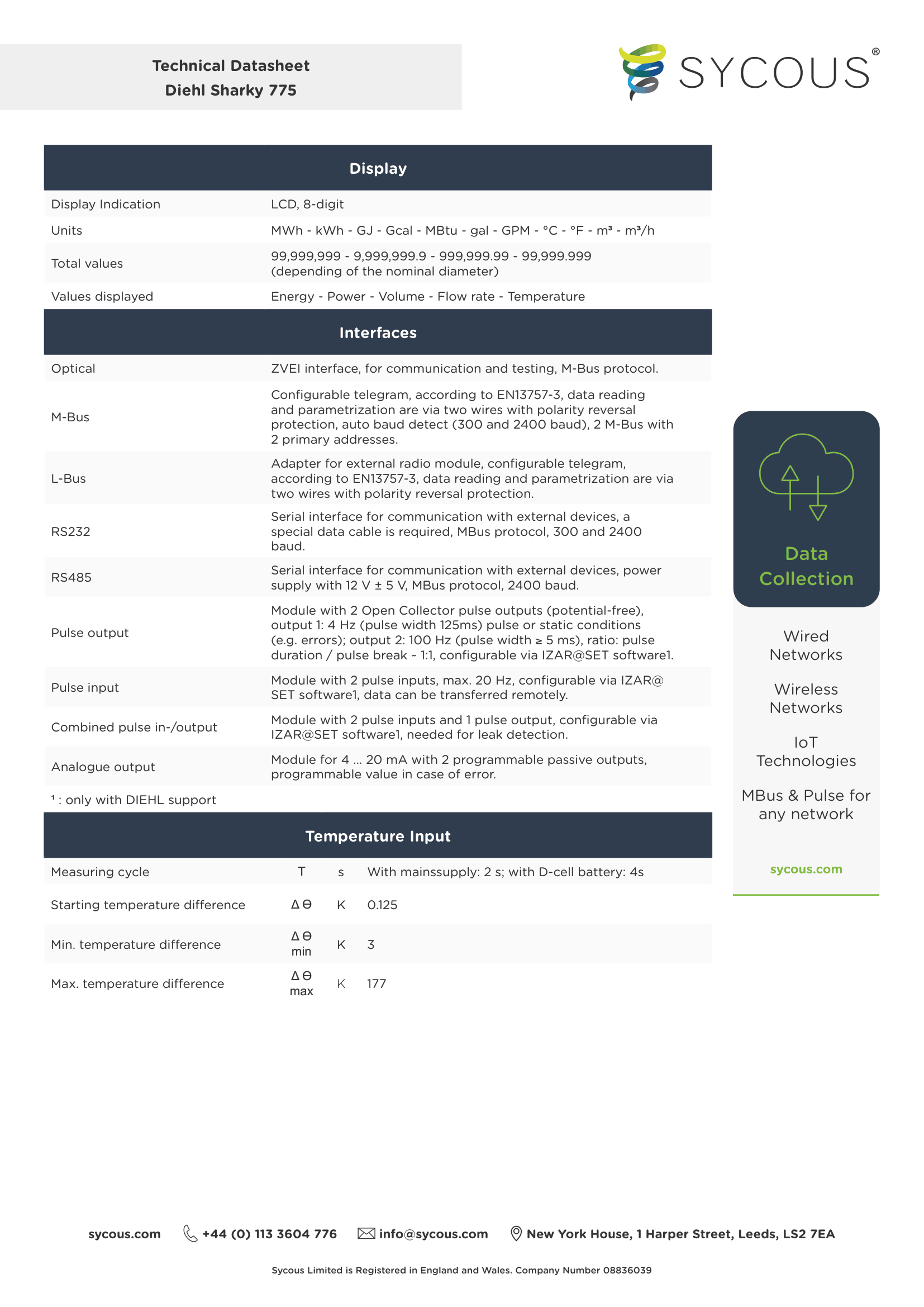

Interfaces
Optical ZVEI interface for communication and testing , MBus protocol
MBus
Con fi gurable telegram to EN 13757 3, two wire with polarity
protection , auto baud detect (300 and 2400 baud ), 2 MBus with
2 primary addresses
L Bus Adapter for external radio module , con fi gurable telegram to EN
13757 3

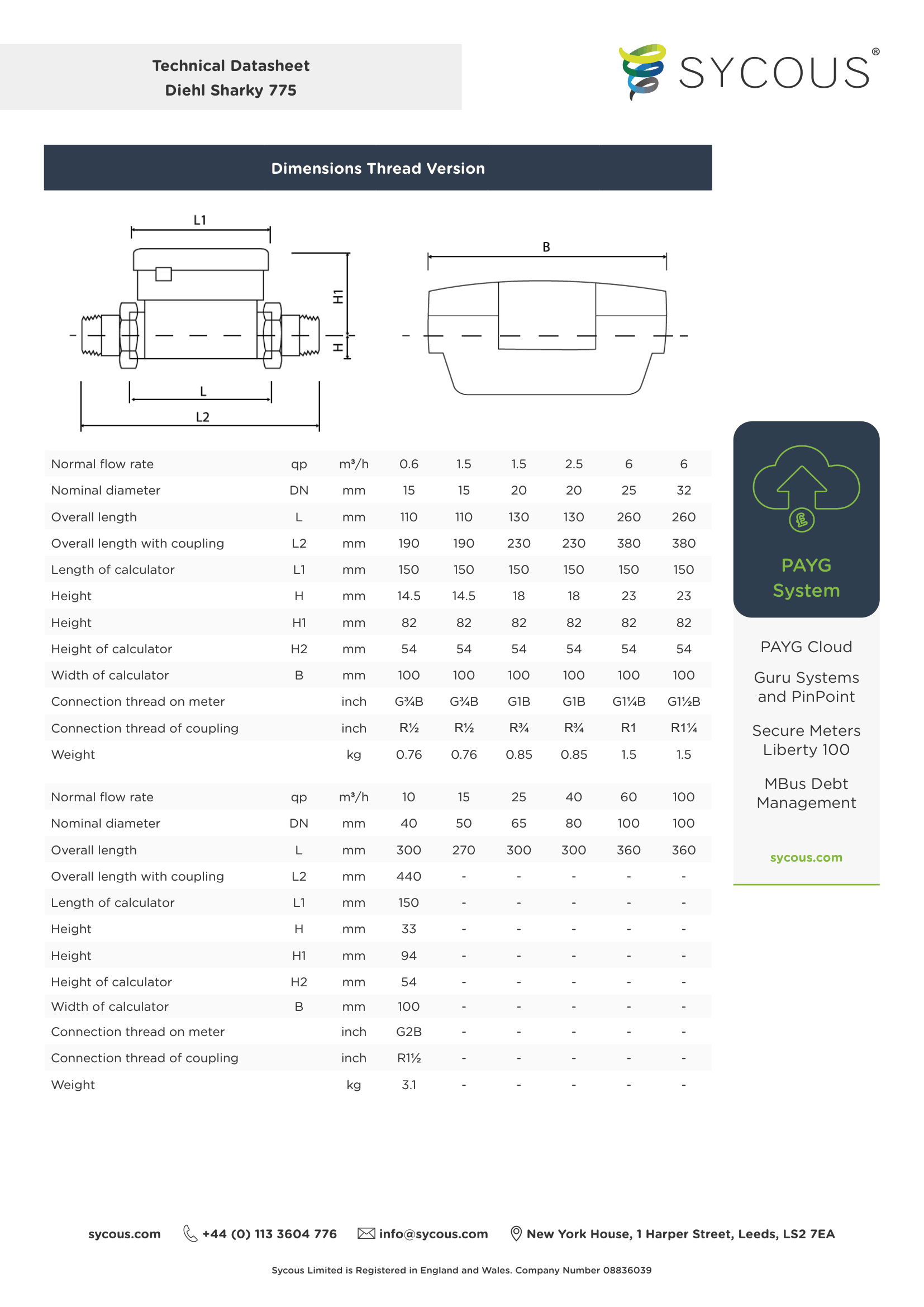

Dimensions ( DN 25 to DN 50)
DN 25, Qp 6 Overall length 260 mm , thread G 1 1/4 B
DN 32, Qp 6 Overall length 260 mm , thread G 1 1/2 B
DN 40, Qp 10 Overall length 300 mm , with coupling 440 mm
DN 50, Qp 15 Overall length 270 mm
