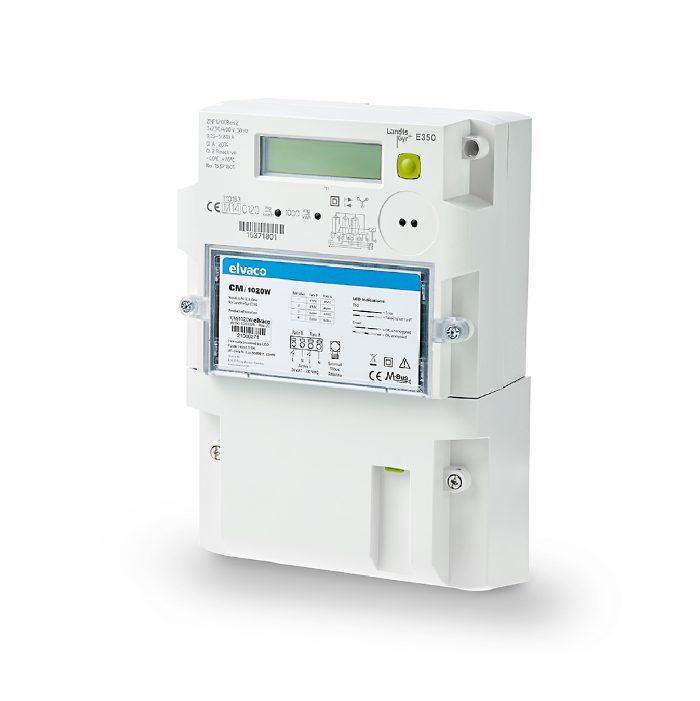

The Landis+Gyr E350 is a wall mounted electricity meter which provides information on a wide range of measurements with a high degree of accuracy. The meter can be ordered for either 1-phase or 3-phase systems as well as with or without a breaker. You can use the E350 in conjunction with Elvaco's integrated meter connectivity modules CMi1020 or CMi1020w, all meter data can be converted to M-Bus or Wireless M-Bus and be collected by a Sycous data collection system.
Features
- Single or Three Phase
- Direct Connected
- MBus or Wireless MBus Output
- MID Approved for billing purposes
- Wall Mounted
- Option for Internal breaker
Product Variants
| Part Code | Name | Phase | Connection | Output |
|---|---|---|---|---|
| EL350SP | L+G E350 Single Phase Direct Electric Meter MBus | Single | Direct | MBus |
| EL351SP | L+G E350 Single Phase Direct Electric Meter MBus c/w Breaker | Single | Direct | MBus |
| EL352SP | L+G E350 Single Phase Direct Electric Meter Wireless MBus | Single | Direct | Wireless MBus |
| EL350TP | L+G E350 Three Phase Direct Electric Meter MBus | Three | Direct | MBus |
| EL351TP | L+G E350 Three Phase Direct Electric Meter MBus Breaker | Three | Direct | MBus |
| EL352TP | L+G E350 Three Phase Direct Electric Meter Wireless MBus | Three | Direct | Wireless MBus |
