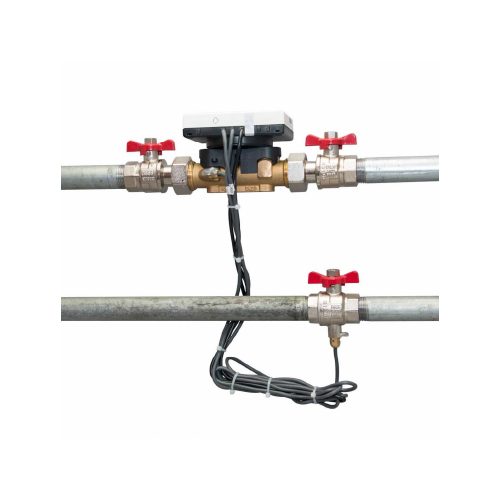

The installation-kit consists of three ball valves, one spool piece corresponding to the length of the meter and two gaskets.
The ball valves with sensor adapter M10 x 1 are used for the installation of the temperature sensors of the meter.
The special ball valves with internal thread and screw connections make the usual unions obsolete.
This reduces the time for replacement or maintenance of a meter to a process of only a few minutes.
Features
- Available in DN15 or DN20
- DN15 comes with 110mm spool piece
- DN20 comes with 130mm spool piece
- Allows for local isolation for easy meter replacement or maintenance
- Spool piece means system can be flushed without meters present
Product Variants
| Part Code | Name | Size |
|---|---|---|
| ZE015FK | DN15 Fitting Kit | 15 |
| ZE020FK | DN20 Fitting Kit | 20 |
