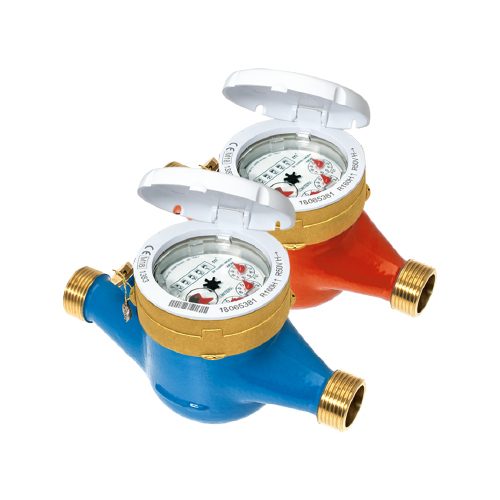

Multi-jet meter, dry dial, magnetic transmission with 360° rotating lid.
Inductive pre-equipment for the installation of data communication modules MBus wired, wireless OMS, LoRaWAN, and non-magnetic pulse output.
Features
- R100-H ↑ R50-VH→
- Magnetic transmission
- Pre-equipment for pulse emitter device mounting
- Dry dial
- Direct reading on 5 numeric rolls (6 rolls on DN40 and DN50)
- Available for Cold Water up to 50° C or Hot Water up to 90° C
- 360 degrees rotating lid (DN15-DN32)
- MBus, Wireless MBus, Pulse and LoRaWAN output
Product Variants
| Part Code | Name | Size | Qp (m3/h) | Output |
|---|---|---|---|---|
| BM015MJ | 15mm GMDM-I Multijet Cold Water Meter Pulse | 15 | 2.5 | PULSE |
| BM016MJ | 15mm GMDM-I Multijet Cold Water Meter MBus | 15 | 2.5 | MBUS |
| BM015MH | 15mm GMDM-I Multijet Hot Water Meter Pulse | 15 | 2.5 | PULSE |
| BM016MH | 15mm GMDM-I Multijet Hot Water Meter MBus | 15 | 2.5 | MBUS |
| BM020MJ | 20mm GMDM-I Multijet Cold Water Meter Pulse | 20 | 4 | PULSE |
| BM021MJ | 20mm GMDM-I Multijet Cold Water Meter MBus | 20 | 4 | MBUS |
| BM020MH | 20mm GMDM-I Multijet Hot Water Meter Pulse | 20 | 4 | PULSE |
| BM021MH | 20mm GMDM-I Multijet Hot Water Meter MBus | 20 | 4 | MBUS |
| BM025MJ | 25mm GMDM-I Multijet Cold Water Meter Pulse | 25 | 6.3 | PULSE |
| BM026MJ | 25mm GMDM-I Multijet Cold Water Meter MBus | 25 | 6.3 | MBUS |
| BM025MH | 25mm GMDM-I Multijet Hot Water Meter Pulse | 25 | 6.3 | PULSE |
| BM026MH | 25mm GMDM-I Multijet Hot Water Meter MBus | 25 | 6.3 | MBUS |
| BM032MJ | 32mm GMDM-I Multijet Cold Water Meter Pulse | 32 | 10 | PULSE |
| BM033MJ | 32mm GMDM-I Multijet Cold Water Meter MBus | 32 | 10 | MBUS |
| BM032MH | 32mm GMDM-I Multijet Hot Water Meter Pulse | 32 | 10 | PULSE |
| BM033MH | 32mm GMDM-I Multijet Hot Water Meter MBus | 32 | 10 | MBUS |
| BM040MJ | 40mm GMDM-I Multijet Cold Water Meter Pulse | 40 | 16 | PULSE |
| BM041MJ | 40mm GMDM-I Multijet Cold Water Meter MBus | 40 | 16 | MBUS |
| BM040MH | 40mm GMDM-I Multijet Hot Water Meter Pulse | 40 | 16 | PULSE |
| BM041MH | 40mm GMDM-I Multijet Hot Water Meter MBus | 40 | 16 | MBUS |
| BM050MJ | 50mm GMDM-I Multijet Cold Water Meter Pulse | 50 | 25 | PULSE |
| BM051MJ | 50mm GMDM-I Multijet Cold Water Meter MBus | 50 | 25 | MBUS |
| BM050MH | 50mm GMDM-I Multijet Hot Water Meter Pulse | 50 | 25 | PULSE |
| BM051MH | 50mm GMDM-I Multijet Hot Water Meter MBus | 50 | 25 | MBUS |
