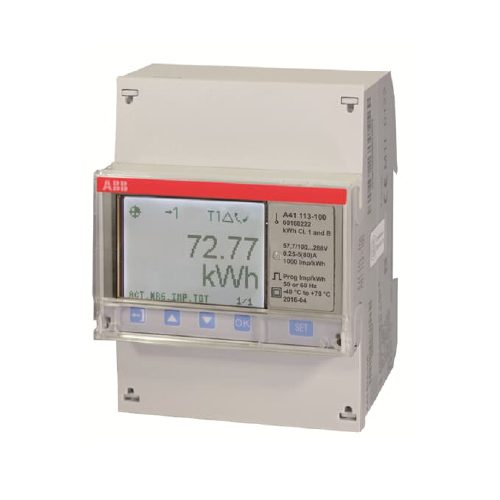

The ABB A41 is an advanced DIN-rail electric meter with a large and easy to read back lighted pixel-oriented display. The meter is intended for use in the industry, commercial buildings etc. The meter can be used in 3 or 4 wire systems with a wide voltage range.
The meter has several instrumentation values, 25 possible alarms and event logs. Single phase direct connected for active energy. The meter comes complete with either Pulse or MBus Output.
Accuracy class 1.0 (or B for MID meters). The meter is IEC approved + MID approved and verified.
Features
- Single Phase
- Direct Connected
- Max 80A
- MBus or Pulse Output
- MID Approved for billing purposes
- DIN Rail Mounted
Product Variants
| Part Code | Name | Phase | Connection | Output |
|---|---|---|---|---|
| AB080SD | ABB Single Phase Direct Connected Electricity Meter 80A with Pulse | SINGLE | DIRECT | PULSE |
| AB082SD | ABB Single Phase Direct Connected Electricity Meter 80A with Mbus/Pulse | SINGLE | DIRECT | MBUS/ PULSE |
