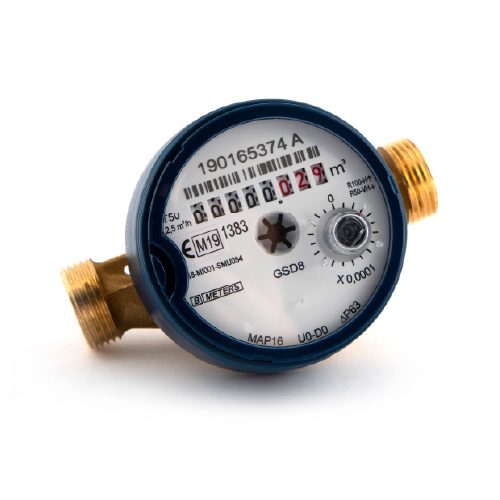

Single jet, dry dial, direct reading on 8 numerical rolls.
Produced in the versions for cold water and hot water in the diameters DN15 and DN20 mm (1/2"- 3/4"). 360° rotating dial.
Optical data communication modules for MBus wired, wireless OMS and LoRaWAN and NB-IoT capabilities.
Features
- R100-H ↑ R50-VH→
- Available for cold water 0,1°C-50° C and for hot water 30°C-90°C
- Magnetic transmission
- Direct reading on 8 numeric rolls
- 360° rotating dry dial
- Anti-magnetic fraud protection
- Available with either MBus, Wireless MBus, LoRaWAN or NB-IoT
Product Variants
| Part Code | Name | Size | Qp (m3/h) | Output |
|---|---|---|---|---|
| BM215CW | 15MM Cold Water Meter MBus | 15 | 2.5 | - |
| BM215HW | 15MM Hot Water Meter MBus | 15 | 2.5 | - |
| BM220CW | 20MM Cold Water Meter MBus | 20 | 4 | - |
| BM220HW | 20MM Hot Water Meter MBus | 20 | 4 | - |
| BM001MB | B Meters Wired Mbus Communication Module | - | - | MBUS |
