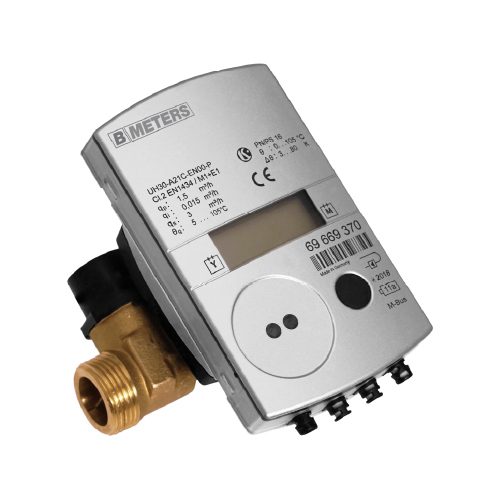

The B-Meters Ultrasonic thermal energy meter, designed to measure heating and cooling.
It can be used for commercial metering of energy consumption for local heating systems: in dwelling houses, office buildings, energy plants and similar applications.
The meter is light-in-weight, compact/robust, economic efficiency, and is user-friendly.
Features
- Available as heat, cooling or combined heat/cooling meters
- DN15-DN20
- Low design height, prefect for HIU’s
- MBus, Wireless MBus or LoRaWAN available as an option
- Any installation position (even overhead)
- Precise, long-term stable, wear-free
- MID Class 2
Product Variants
| Part Code | Name | Size | QP (m3/h) | Output |
|---|---|---|---|---|
| BM015HM | 15MM Hydrosonis - ULC Ultrasonic Heat Meter MBus | 15 | 1.5 | MBUS |
| BM016HM | 15MM Hydrosonis Ultrasonic wMBus Heat Meter | 15 | 1.5 | WIRELESS MBUS |
| BM017HM | 15MM Hydrosonis Ultrasonic LoRaWAN Heat Meter | 15 | 1.5 | LoRaWAN |
