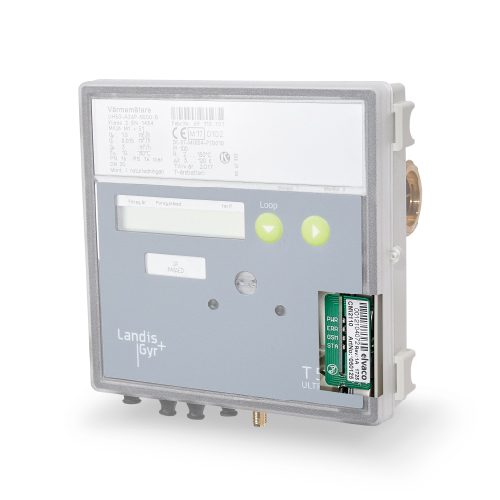

CMi2110 is a powerful and versatile meter connectivity module which is mounted inside a Landis+Gyr UH50 / UC50 heat meter to act as a Gateway for the mobile network.
The module is easily installed via text messages, and is thereafter ready to read the meter and deliver customized meter data reports to a receiving system by a selected time schedule and integration protocol via the mobile network.
Features
- Module for Landis Gyr UH50/UC50 range of energy meters
- Requires power supply, sold separately
- GSM Connectivity
- Option for 8 additional hardwired MBus meters to be connected to the CMi2110
Product Variants
| Part Code | Name | Size | Input | Output |
|---|---|---|---|---|
| EL211MC | CMi2110 Integrated MCM for L+G UH50 | L+G Meter | Meter | GSM |
| EL218MC | CMi2110 Integrated GSM Module for L+G UH50 + 8 Hardwired MBus Meters | L+G Meter & MBUS | Meter + MBus | GSM |
| EL210PO | L&G UH50 230v Power Module + power Cmi2110 | 230v | - | - |
| EL212MC | CMi2110 Integrated GSM Module for L+G UH50 | L&G Meter | Meter | GSM |
| EL219MC | CMi2110 Integrated GSM Module for L+G UH50 + 8 Hardwired MBus Meters | L&G Meter | Meter + GSM | GSM |
