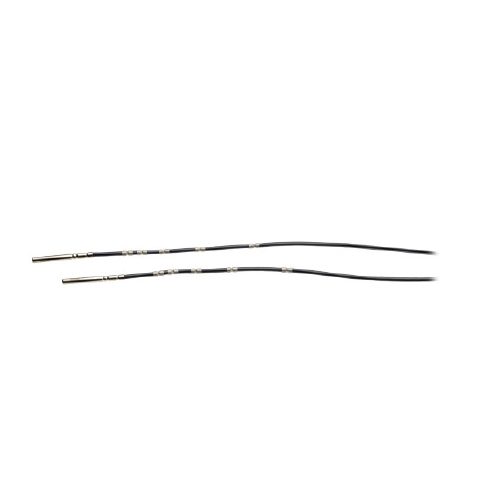

Sycous provide a range of temperature sensor pairs which determine the supply and return temperature in closed water circuits in heating and cooling systems. Depending on the measuring point requirements they can be installed in a pocket or directly in the pipe using a ball valve.
All the versions have an MID type testing certificate in accordance with guideline 2014/32/EU and are supplied with a corresponding conformity assessment.
A new kind of temperature sensor type 'Universal 6 x 60 -230' that can be used for all standard sleeves for temperature sensors with an installation length of 50 to 210 mm and an internal diameter of 6 mm is now available.
Features
- Available from 45mm to 230mm in length
- MID Approved for billing purposes
- RHI Complaint
- Available with various cable lengths
- PT500
- 2 wire. 4 wire available on special order
Product Variants
| Part Code | Name | Size |
|---|---|---|
| ZE045TS | 45MM Temperature Sensors Pair, PT500, MID, 5.2,45mm,1.5m | 45 |
| ZE046TS | 45MM Temperature Sensors Pair, PT500, MID, 5.2,45mm,3m | 45 |
| ZE047TS | 45MM Temperature Sensors Pair, PT500, MID, 5.2 | 45 |
| ZE105TS | 105MM Temperature Sensors Pair, PT500, MID, 6.0 | 105 |
| ZE106TS | 105MM Temperature Sensors Pair, PT500, MID, 10m | 105 |
| ZE140TS | 140MM Temperature Sensors Pair, PT500, MID, 6.0,140mm,3m | 140 |
| ZE141TS | 140MM Temperature Sensors Pair, PT500, MID, 10M | 140 |
| ZE230TS | 230MM Temperature Sensors Pair, PT500, MID, 6.0 | 230 |
| ZE231TS | 230MM Temperature Sensors Pair, PT500, MID, 10M | 230 |
| ZE150TS | K150 Temperature Sensors 6x60-230 3m Cable PT500 | 60-230 |
| ZE151TS | K150 Temperature Sensors 6x60-230 10m Cable PT500 | 60-230 |
