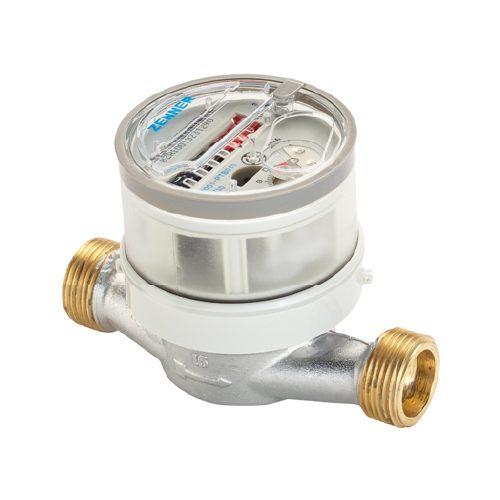

The ETKD/ETWD single jet cold water meters by Zenner are suitable for use with either cold or hot water. The single jet water meter is MID approved for fiscal billing purposes and is available with a range of outputs for remote communication including Pulse, MBus, Wireless MBus and LoRaWAN.
Features
- Available in either DN15 or DN20
- Available for cold water up to 30° C and for hot water up to 90°C
- MID Approved
- WRAS Approved
- Available with either MBus, Wireless MBus or LoRaWAN.
Product Variants
| Part Code | Name | Size | Qp (m3/h) | Output |
|---|---|---|---|---|
| ZE015CW | 15MM ETKD-N Cold Water Meter | 15 | 2.5 | - |
| SY216CW | 15MM Zenner ETKD-M Cold Water Meter MBus 80MM Body Length | 15 | 2.5 | MBUS |
| SY215CW | 15MM Zenner ETKD-M Cold Water Meter with Mbus | 15 | 2.5 | MBUS |
| SY315CW | 15MM ZENNER ETKD-M Cold Water Meter with Wireless MBus | 15 | 2.5 | WIRELESS MBUS |
| SY415CW | 15MM ZENNER ETKD-M Cold Water Meter with LoRa | 15 | 2.5 | LoRa |
| ZE015HW | 15MM ETWD-N Hot Water Meter | 15 | 2.5 | - |
| SY215HW | 15MM Zenner ETWD-M Hot Water Meter with Mbus | 15 | 2.5 | MBUS |
| SY315HW | 15MM ZENNER ETWD-M Hot Water Meter with Wireless MBus | 15 | 2.5 | WIRELESS MBUS |
| SY415HW | 15MM Zenner ETWD-M Hot Water Meter with LoRa | 15 | 2.5 | LoRa |
| ZE020CW | 20MM Single-Jet Cold Water Meter Q3 4 | 20 | 4 | - |
| SY220CW | 20MM Zenner ETKD-M Cold Water Meter with Mbus | 20 | 4 | MBUS |
| SY320CW | 20MM ZENNER ETKD-M Cold Water Meter with Wireless MBus | 20 | 4 | WIRELESS MBUS |
| SY420CW | 20MM Zenner ETKD-M Cold Water Meter with LoRa | 20 | 4 | LoRa |
| ZE021HW | 20MM Single-Jet Hot Water Meter Q3 4 | 20 | 4 | - |
| SY220HW | 20MM Zenner ETWD-M Hot Water Meter with Mbus | 20 | 2.5 | MBUS |
| SY221HW | 20MM Zenner ETWD-M Hot Water Meter with Mbus | 20 | 4 | MBUS |
| SY320HW | 20MM ZENNER ETWD-M Hot Water Meter with Wireless MBus | 20 | 4 | WIRELESS MBUS |
| SY420HW | 20MM Zenner ETWD-M Hot Water Meter with LoRa | 20 | 4 | LoRa |
| ZE002MB | Zenner Wireless Mbus EDC Communication Module | - | - | WIRELESS MBUS |
| ZE001PU | Pulse Counter 1/10L | - | - | PULSE |
| ZE001MB | Zenner Mbus EDC Communication Module | - | - | MBUS |
