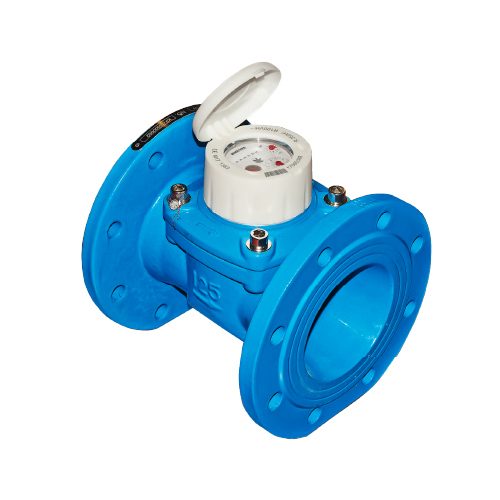

Horizontal Woltmann meter with removable insert. Sealed counter mechanism with magnetic transmission.
Inductive pre-equipment for the installation of optional data communication modules wireless, including OMS MBus, LoRaWAN and non-magnetic pulse output.
Features
- R100-H↑ VH→
- Available for cold water 0,1°C-50°C and for hot water 30°C-90°C
- Magnetic transmission
- Direct reading on 7 numeric rolls
- With removable insert
- 360° rotating dry dial
- MBus, Wireless MBus, Pulse and LoRaWAN output
Product Variants
| Part Code | Name | Size | Qp (m3/h) | Output |
|---|---|---|---|---|
| BM050BC | DN50 WDE-K50 Flanged Cold Water Meter Pulse | 50 | 40 | PULSE |
| BM051BC | DN50 WDE-K50 Flanged Cold Water Meter MBus | 50 | 40 | MBUS |
| BM050BH | DN50 WDE-K50 Flanged Hot Water Meter Pulse | 50 | 40 | PULSE |
| BM051BH | DN50 WDE-K50 Flanged Hot Water Meter MBus | 50 | 40 | MBUS |
| BM065BC | DN65 WDE-K50 Flange Cold Water Meter Pulse | 65 | 63 | PULSE |
| BM066BC | DN65 WDE-K50 Flange Cold Water Meter MBus | 65 | 63 | MBUS |
| BM065BH | DN65 WDE-K50 Flange Hot Water Meter Pulse | 65 | 63 | PULSE |
| BM066BH | DN65 WDE-K50 Flange Hot Water Meter MBus | 65 | 63 | MBUS |
| BM080BC | DN80 WDE-K50 Flange Cold Water Meter Pulse | 80 | 100 | PULSE |
| BM081BC | DN80 WDE-K50 Flange Cold Water Meter MBus | 80 | 100 | MBUS |
| BM080BH | DN80 WDE-K50 Flange Hot Water Meter Pulse | 80 | 100 | PULSE |
| BM081BH | DN80 WDE-K50 Flange Hot Water Meter MBus | 80 | 100 | MBUS |
| BM100BC | DN100 WDE-K50 Flange Cold Water Meter Pulse | 100 | 160 | PULSE |
| BM101BC | DN100 WDE-K50 Flange Cold Water Meter MBus | 100 | 160 | MBUS |
| BM100BH | DN100 WDE-K50 Flange Hot Water Meter Pulse | 100 | 160 | PULSE |
| BM101BH | DN100 WDE-K50 Flange Hot Water Meter MBus | 100 | 160 | MBUS |
| BM125BC | DN125 WDE-K50 Flange Cold Water Meter Pulse | 125 | 160 | PULSE |
| BM126BC | DN125 WDE-K50 Flange Cold Water Meter MBus | 125 | 160 | MBUS |
| BM125BH | DN125 WDE-K50 Flange Hot Water Meter Pulse | 125 | 160 | PULSE |
| BM126BH | DN125 WDE-K50 Flange Hot Water Meter MBus | 125 | 160 | MBUS |
| BM150BC | DN150 WDE-K50 Flange Cold Water Meter Pulse | 150 | 250 | PULSE |
| BM151BC | DN150 WDE-K50 Flange Cold Water Meter MBus | 150 | 250 | MBUS |
| BM150BH | DN150 WDE-K50 Flange Hot Water Meter Pulse | 150 | 250 | PULSE |
| BM151BH | DN150 WDE-K50 Flange Hot Water Meter MBus | 150 | 250 | MBUS |
| BM200BC | DN200 WDE-K50 Flange Cold Water Meter Pulse | 200 | 400 | PULSE |
| BM201BC | DN200 WDE-K50 Flange Cold Water Meter MBus | 200 | 400 | MBUS |
| BM200BH | DN200 WDE-K50 Flange Hot Water Meter Pulse | 200 | 400 | PULSE |
| BM201BH | DN200 WDE-K50 Flange Hot Water Meter MBus | 200 | 400 | MBUS |
