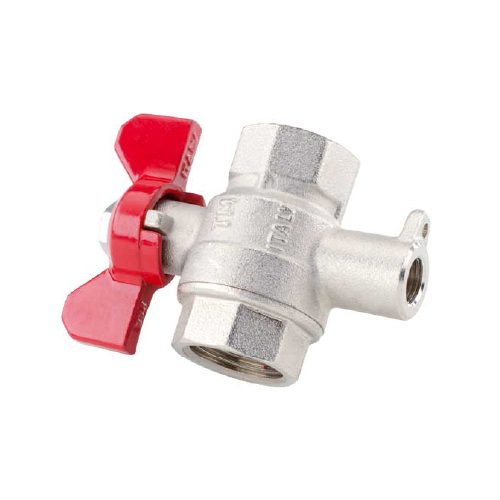

The ball valve with drill bore M10x1 is ideally suited to the installation of direct sensors. If the ball valve is closed then the temperature sensor can be exchanged without draining the heating water. When the ball valve is open the sensor is surrounded by the heat carrier and can react quickly and reliably to changes in temperature.
Features
- Ball valves for hot water heating systems with sensor connection
- M 10 x 1
- Internal thread on both sides
- Available from DN15 to DN40
Product Variants
| Part Code | Name | Size | Connection | Sensor Connection |
|---|---|---|---|---|
| FE015BV | 15MM Ball Valve | DN15 | ½” | M10 |
| FE020BV | 20MM Ball Valve | DN20 | ¾” | M10 |
| FE025BV | 25MM Ball Valve | DN25 | 1” | M10 |
| FE030BV | 30MM Ball Valve | DN30 | 1 ¼” | M10 |
| FE040BV | 40MM Ball Valve | DN40 | 1 ½” | M10 |
