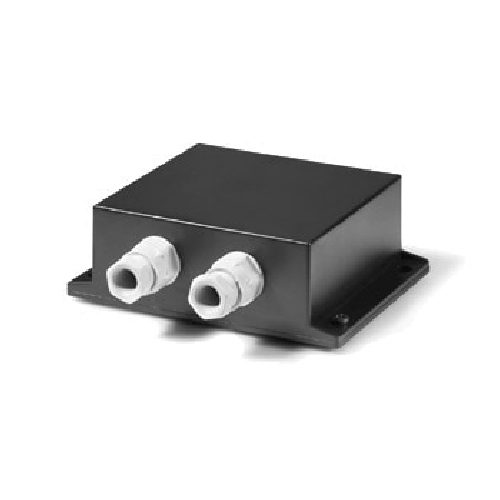

The 1-channel pulse adaptor PadPuls M1 allows the use of meters with pulse output as MBus slaves.
The device will convert pulses to MBus output.
Can be used with a range of pulsed output meters including water, heat, gas, oil & electric.
Features
- Power is supplied by MBus, or integrated battery at an MBus failure, needs no power supply unit externally.
- Maximum pulse frequency 20Hz
- Debouncing of pulses
- Adjustable pulse values and pulse unit
- MBus protocol according to EN1434-3
- Onsite programming by MBus, including overwrite protection
- Wall mounted
- Protective class IP 54
Product Variants
| Part Code | Name | Input | Output |
|---|---|---|---|
| UK010PD | Pulse to MBus Converter 1 Input | Pulse | MBus |
