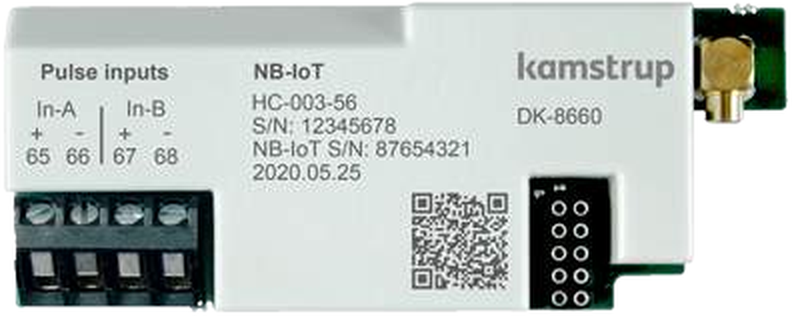

The NB-IoT module plugs into the module slot of a Kamstrup MULTICAL 403 or 603 and sends readings straight to a reading system over the mobile NB-IoT network, with no gateway on site. Battery life depends on the installation and the NB-IoT coverage level, called the CE level.
Features
- Point to point communication from the meter to the reading database over the existing NB-IoT network
- Works with battery or mains supplied meters, with the transmission interval and datagram configured to suit the job
- Data can go to Kamstrup READy or to a third party reading system
- Individual encryption keys
- Up to 16 years of battery life on a 603 and up to 12 years on a 403 with daily transmission, depending on the site and the CE level
- Compatible with the MULTICAL 403 and MULTICAL 603
Product Variants
| Part Code | Name | Meter | Output |
|---|---|---|---|
| SC402AN | Mini triangle antenna for wMBus, NB-IoT and 2G or 4G modules | Kamstrup MULTICAL 403 and 603 | Antenna |
Things to know
NB-IoT needs a signal from a mobile network where the meter is fitted. For a MULTICAL 603 an IoT battery module is available, which suits the higher current of the NB-IoT radio.
The MULTICAL 603 has two module slots and the MULTICAL 403 has one. The module fits the slot under the calculator cover, and the cover is marked with the module name, serial number and a QR code.
