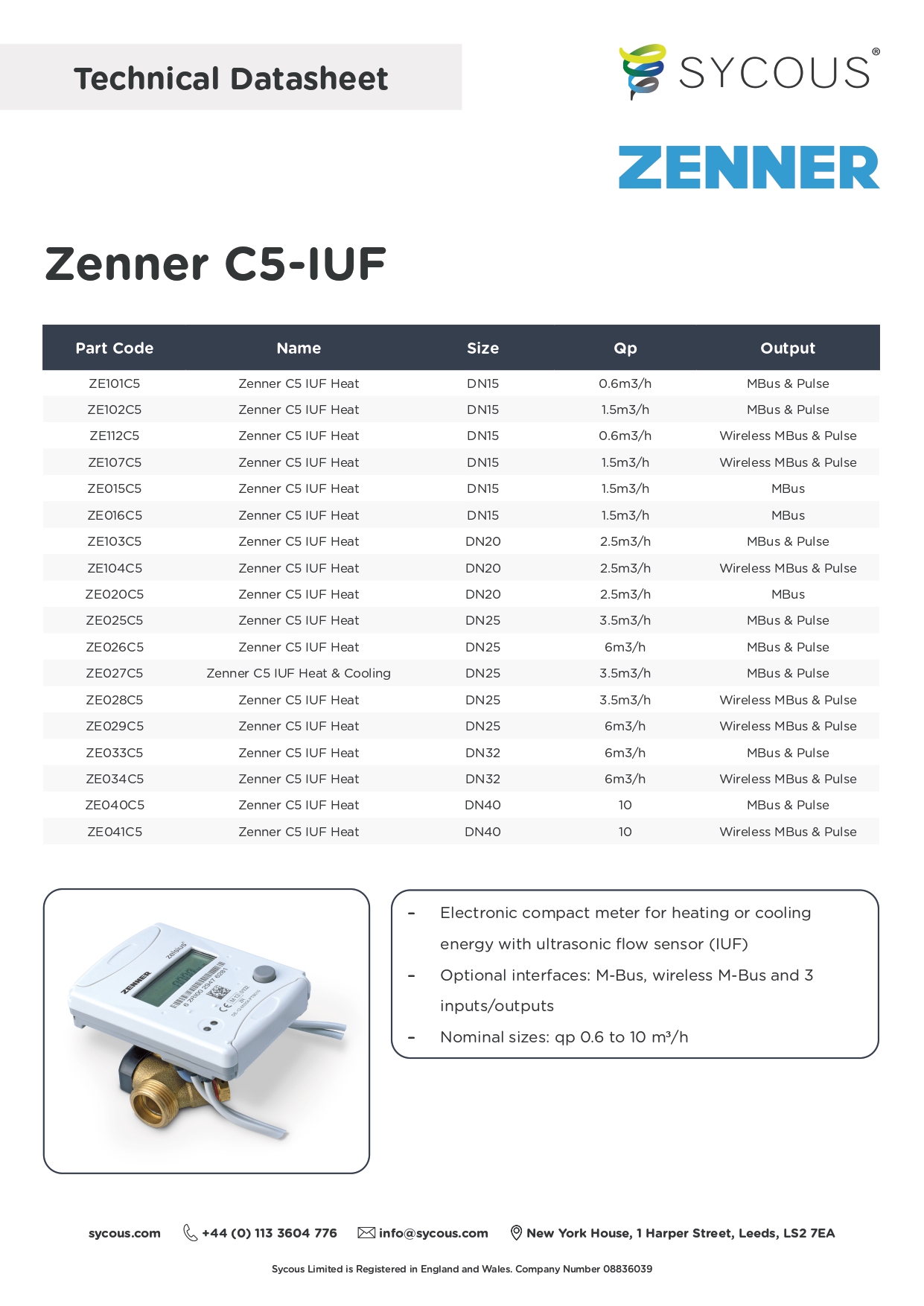

– Electronic compact meter for heating or cooling
energy with ultrasonic flow sensor (IUF)
– Optional interfaces: M-Bus, Wireless MBus and 3
inputs/outputs
– Nominal sizes: qp 0.6 to 10 m ³ /h
Part Code Name Size Qp Output
ZE101C5 Zenner C5 IUF Heat DN15 0.6m3/h MBus & Pulse
ZE102C5 Zenner C5 IUF Heat DN15 1.5m3/h MBus & Pulse
ZE112C5 Zenner C5 IUF Heat DN15 0.6m3/h Wireless MBus & Pulse
ZE107C5 Zenner C5 IUF Heat DN15 1.5m3/h Wireless MBus & Pulse
ZE015C5 Zenner C5 IUF Heat DN15 1.5m3/h MBus
ZE016C5 Zenner C5 IUF Heat DN15 1.5m3/h MBus
ZE103C5 Zenner C5 IUF Heat DN20 2.5m3/h MBus & Pulse
ZE104C5 Zenner C5 IUF Heat DN20 2.5m3/h Wireless MBus & Pulse
ZE020C5 Zenner C5 IUF Heat DN20 2.5m3/h MBus
ZE025C5 Zenner C5 IUF Heat DN25 3.5m3/h MBus & Pulse
ZE026C5 Zenner C5 IUF Heat DN25 6m3/h MBus & Pulse
ZE027C5 Zenner C5 IUF Heat & Cooling DN25 3.5m3/h MBus & Pulse
ZE028C5 Zenner C5 IUF Heat DN25 3.5m3/h Wireless MBus & Pulse
ZE029C5 Zenner C5 IUF Heat DN25 6m3/h Wireless MBus & Pulse
ZE033C5 Zenner C5 IUF Heat DN32 6m3/h MBus & Pulse
ZE034C5 Zenner C5 IUF Heat DN32 6m3/h Wireless MBus & Pulse
ZE040C5 Zenner C5 IUF Heat DN40 10 MBus & Pulse
ZE041C5 Zenner C5 IUF Heat DN40 10 Wireless MBus & Pulse
Technical Datasheet
sycous.com info@sycous.com
Sycous Limited is Registered in England and Wales. Company Number 08836039
New York House, 1 Harper Street, Leeds, LS2 7EA +44 (0) 113 3604 776 Connection sizes

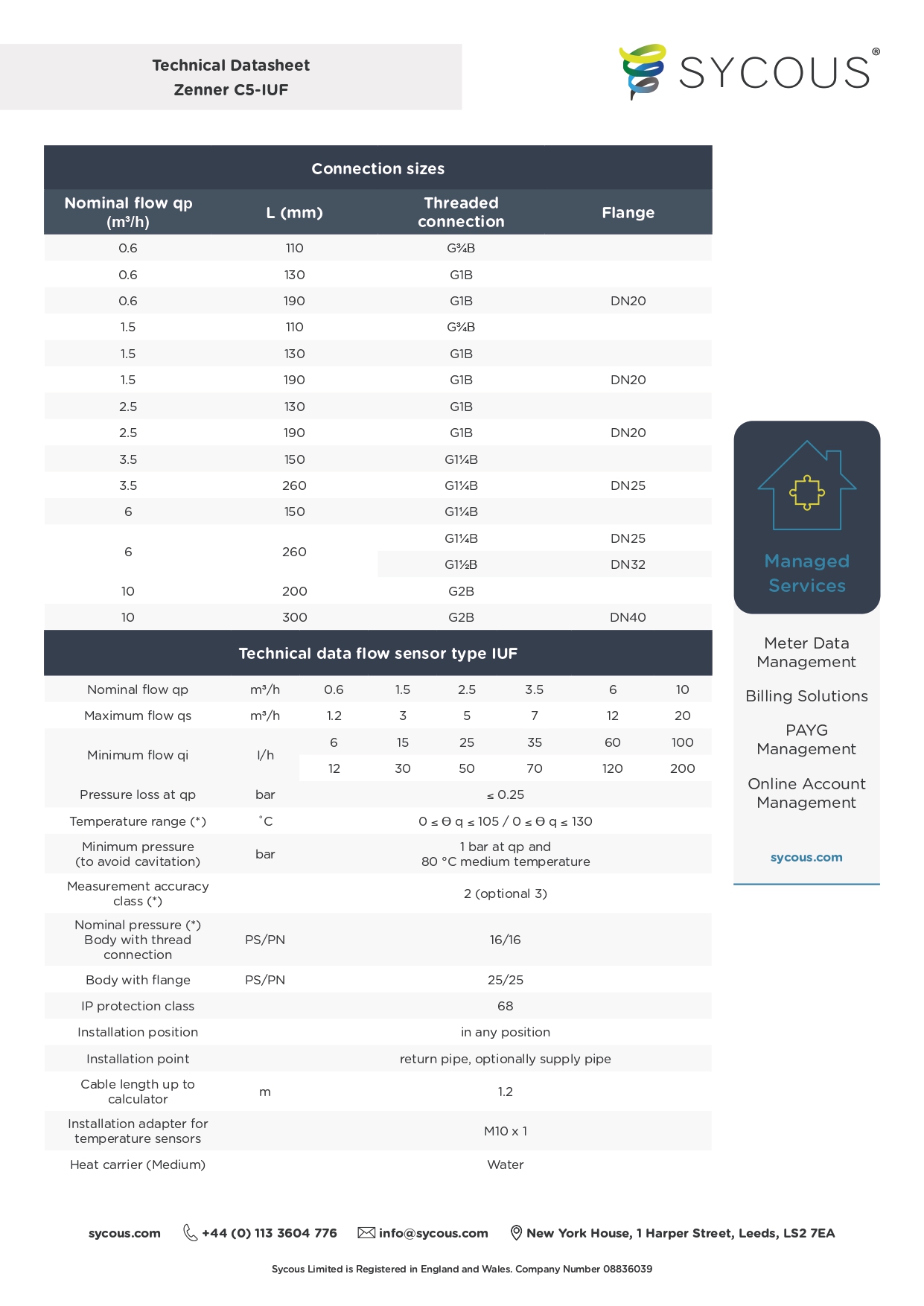

Nominal flow q p
(m³/h) L (mm) Threaded
connection Flange
0.6 110 G ¾B
0.6 130 G1B
0.6 190 G1B DN20
1.5 110 G ¾B
1.5 130 G1B
1.5 190 G1B DN20
2.5 130 G1B
2.5 190 G1B DN20
3.5 150 G1 ¼ B
3.5 260 G1 ¼ B DN25
6 150 G1 ¼ B
6 260
G1 ¼ B DN25
G1 ½B DN32
10 200 G2B
10 300 G2B DN40
Technical data flow sensor type IUF
Nominal flow qp m ³ /h 0.6 1.5 2.5 3.5 6 10
Maximum flow qs m ³ /h 1.2 3 5 7 12 20
Minimum flow qi I/h
6 15 25 35 60 100
12 30 50 70 120 200
Pressure loss at qp bar ≤ 0.25
Temperature range (*) ˚ C 0 ≤ Ɵ q ≤ 105 / 0 ≤ Ɵ q ≤ 130
Minimum pressure
(to avoid cavitation) bar 1 bar at qp and
80 °C medium temperature
Measurement accuracy
class (*) 2 (optional 3)
Nominal pressure (*)
Body with thread
connection
PS/PN 16/16
Body with flange PS/PN 25/25
IP protection class 68
Installation position in any position
Installation point return pipe, optionally supply pipe
Cable length up to
calculator m 1.2
Installation adapter for
temperature sensors M10 x 1
Heat carrier (Medium) Water
Managed
Services
Meter Data
Management
Billing Solutions
PAYG
Management
Online Account
Management
sycous.com
Technical Datasheet
Zenner C5-IUF
sycous.com info@sycous.com
Sycous Limited is Registered in England and Wales. Company Number 08836039
New York House, 1 Harper Street, Leeds, LS2 7EA +44 (0) 113 3604 776 Technical data calculator

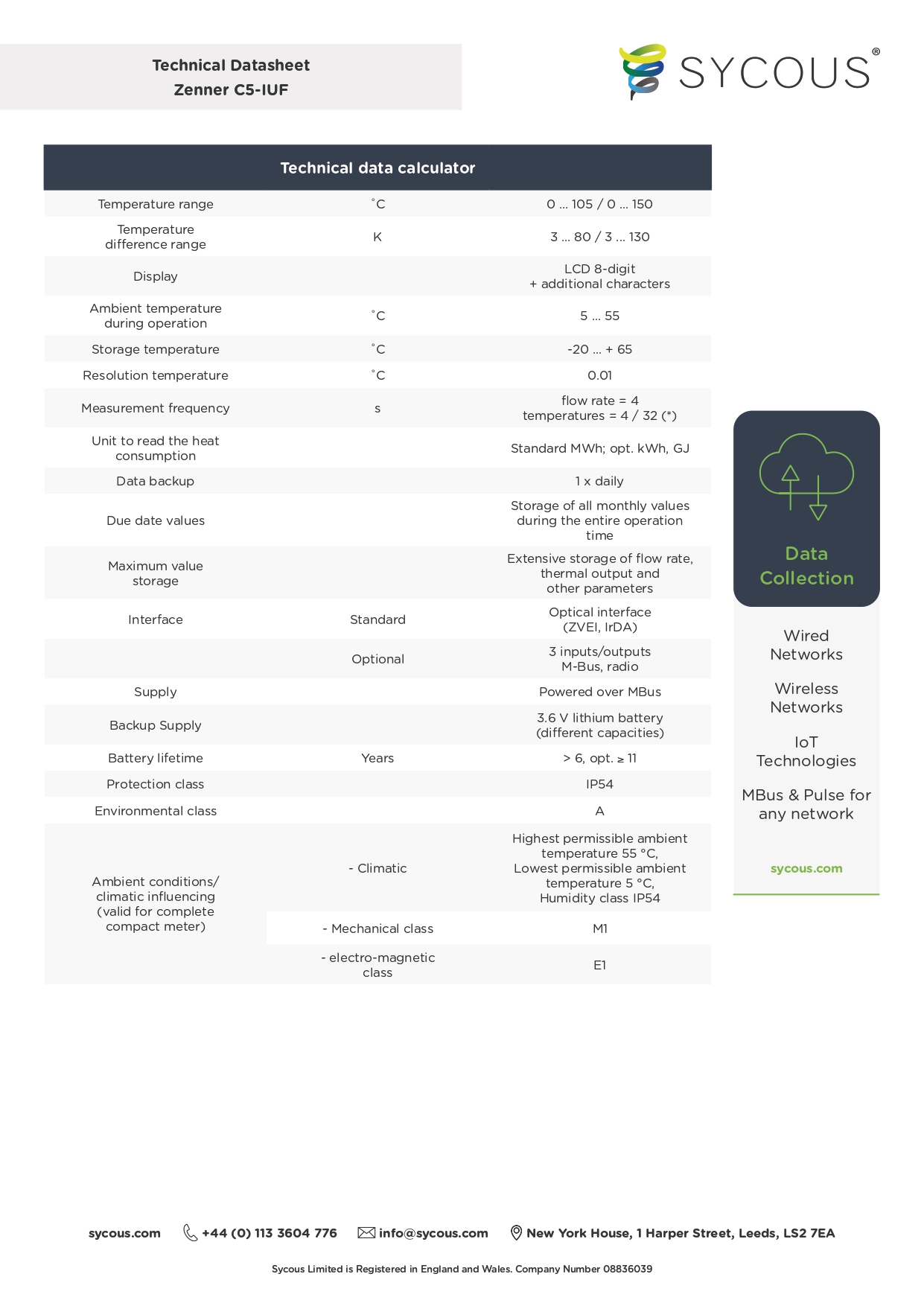

Temperature range ˚ C 0 ... 105 / 0 ... 150
Temperature
difference range K 3 ... 80 / 3 ... 130
Display LCD 8-digit
+ additional characters
Ambient temperature
during operation ˚ C 5 ... 55
Storage temperature ˚ C -20 ... + 65
Resolution temperature ˚ C 0.01
Measurement frequency s flow rate = 4
temperatures = 4 / 32 (*)
Unit to read the heat
consumption Standard MWh; opt. kWh, GJ
Data backup 1 x daily
Due date values
Storage of all monthly values
during the entire operation
time
Maximum value
storage
Extensive storage of flow rate,
thermal output and
other parameters
Interface Standard Optical interface
(ZVEI, IrDA)
Optional 3 inputs/outputs
M-Bus, radio
Supply Powered over MBus
Backup Supply 3.6 V lithium battery
(different capacities)
Battery lifetime Years > 6, opt. ≥ 11
Protection class IP54
Environmental class A
Ambient conditions/
climatic influencing
(valid for complete
compact meter)
- Climatic
Highest permissible ambient
temperature 55 °C,
Lowest permissible ambient
temperature 5 °C,
Humidity class IP54
- Mechanical class M1
- electro-magnetic
class E1
Data
Collection
Wired
Networks
Wireless
Networks
IoT
Technologies
MBus & Pulse for
any network
sycous.com
Technical Datasheet
Zenner C5-IUF
sycous.com info@sycous.com
Sycous Limited is Registered in England and Wales. Company Number 08836039
New York House, 1 Harper Street, Leeds, LS2 7EA +44 (0) 113 3604 776 Technical data temperature sensors

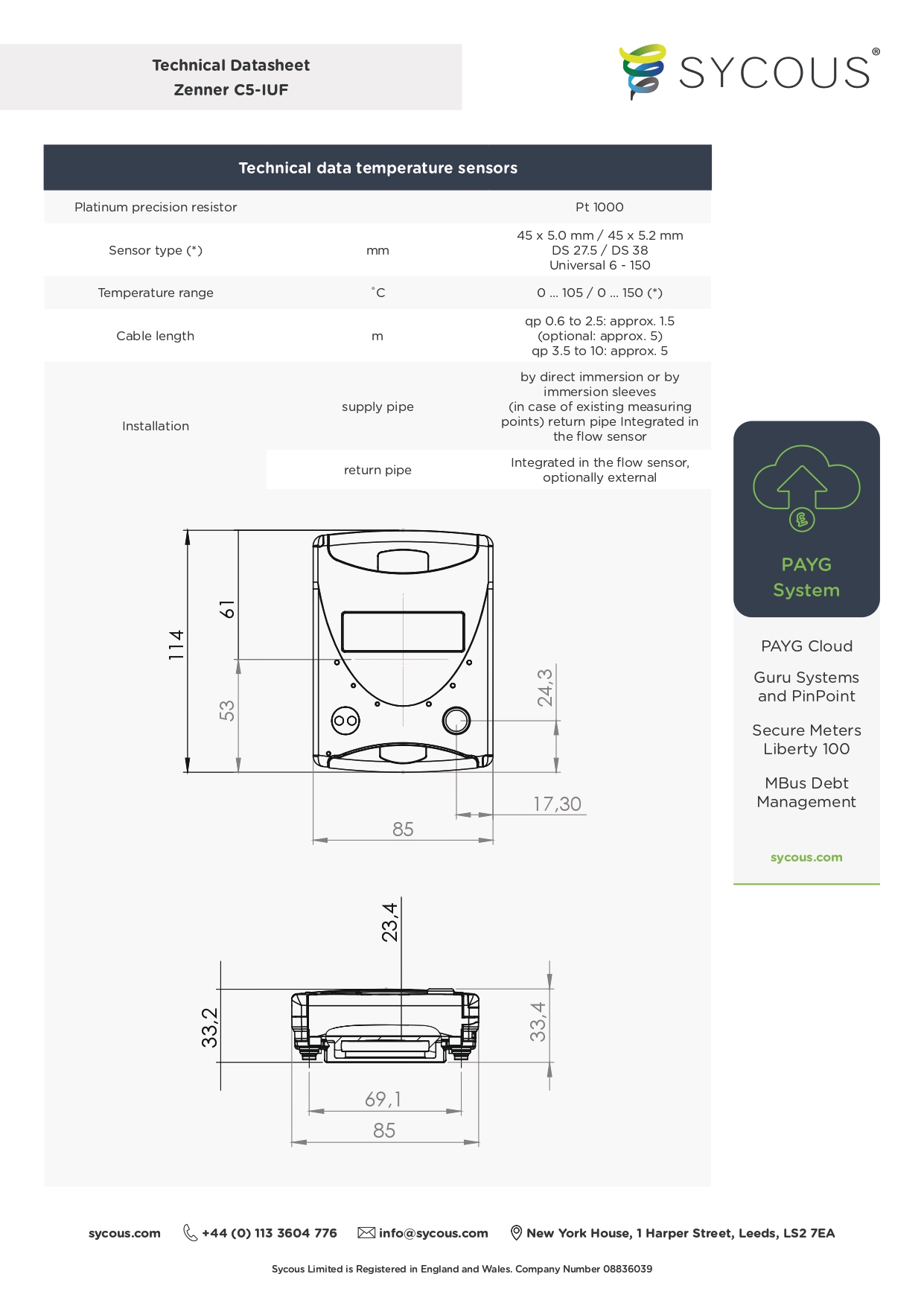

Platinum precision resistor Pt 1000
Sensor type (*) mm
45 x 5.0 mm / 45 x 5.2 mm
DS 27.5 / DS 38
Universal 6 - 150
Temperature range ˚ C 0 ... 105 / 0 ... 150 (*)
Cable length m
qp 0.6 to 2.5: approx. 1.5
(optional: approx. 5)
qp 3.5 to 10: approx. 5
Installation
supply pipe
by direct immersion or by
immersion sleeves
(in case of existing measuring
points) return pipe Integrated in
the flow sensor
return pipe Integrated in the flow sensor,
optionally external
85
17,30
114
61 53
24,3 33,4
85
69,1 23,4
33,2
PAYG
System
PAYG Cloud
Guru Systems
and PinPoint
Secure Meters
Liberty 100
MBus Debt
Management
sycous.com
Technical Datasheet
Zenner C5-IUF
sycous.com info@sycous.com
Sycous Limited is Registered in England and Wales. Company Number 08836039

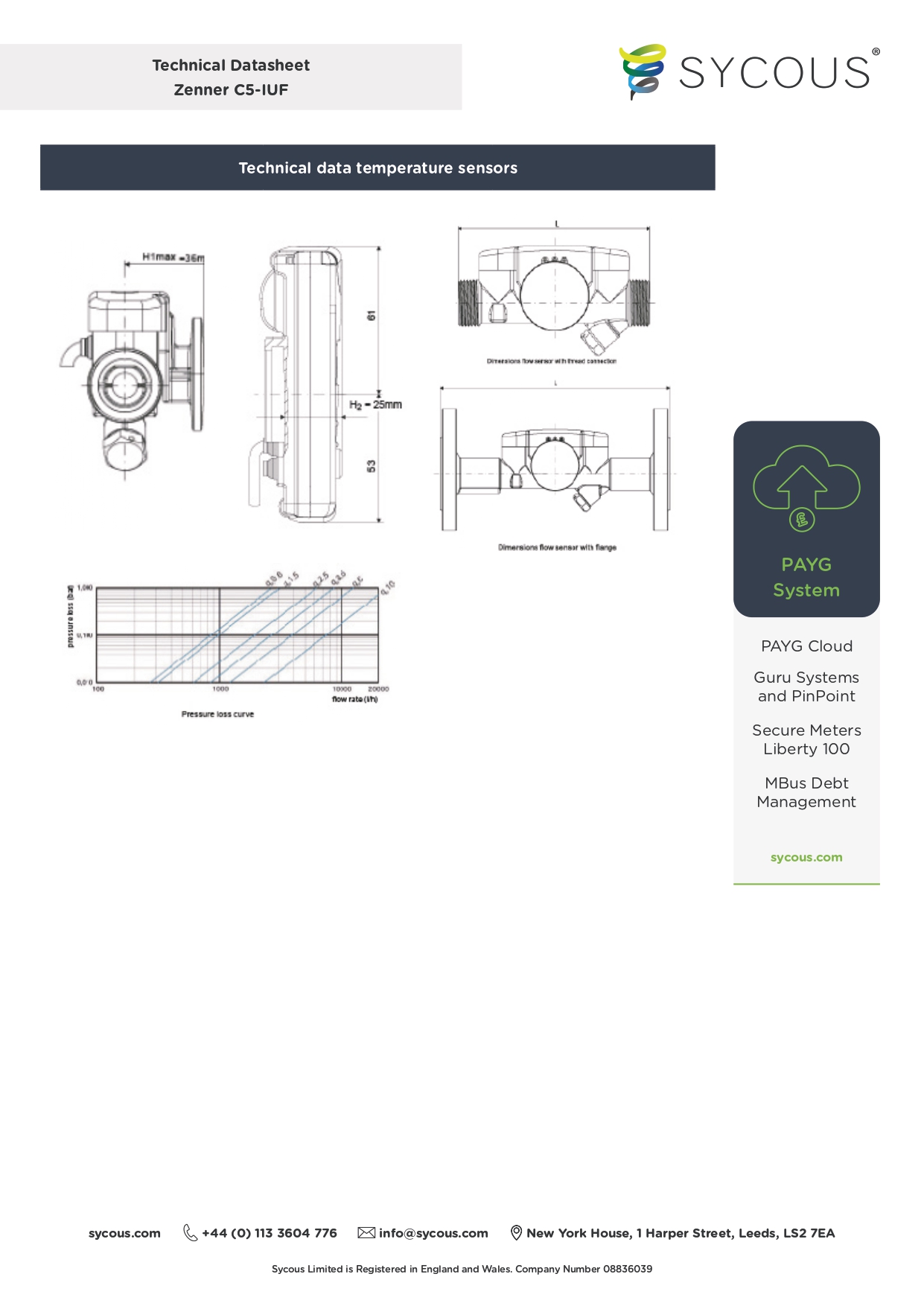

New York House, 1 Harper Street, Leeds, LS2 7EA +44 (0) 113 3604 776 Technical data temperature sensors
PAYG
System
PAYG Cloud
Guru Systems
and PinPoint
Secure Meters
Liberty 100
MBus Debt
Management
sycous.com
Technical Datasheet
Zenner C5-IUF
