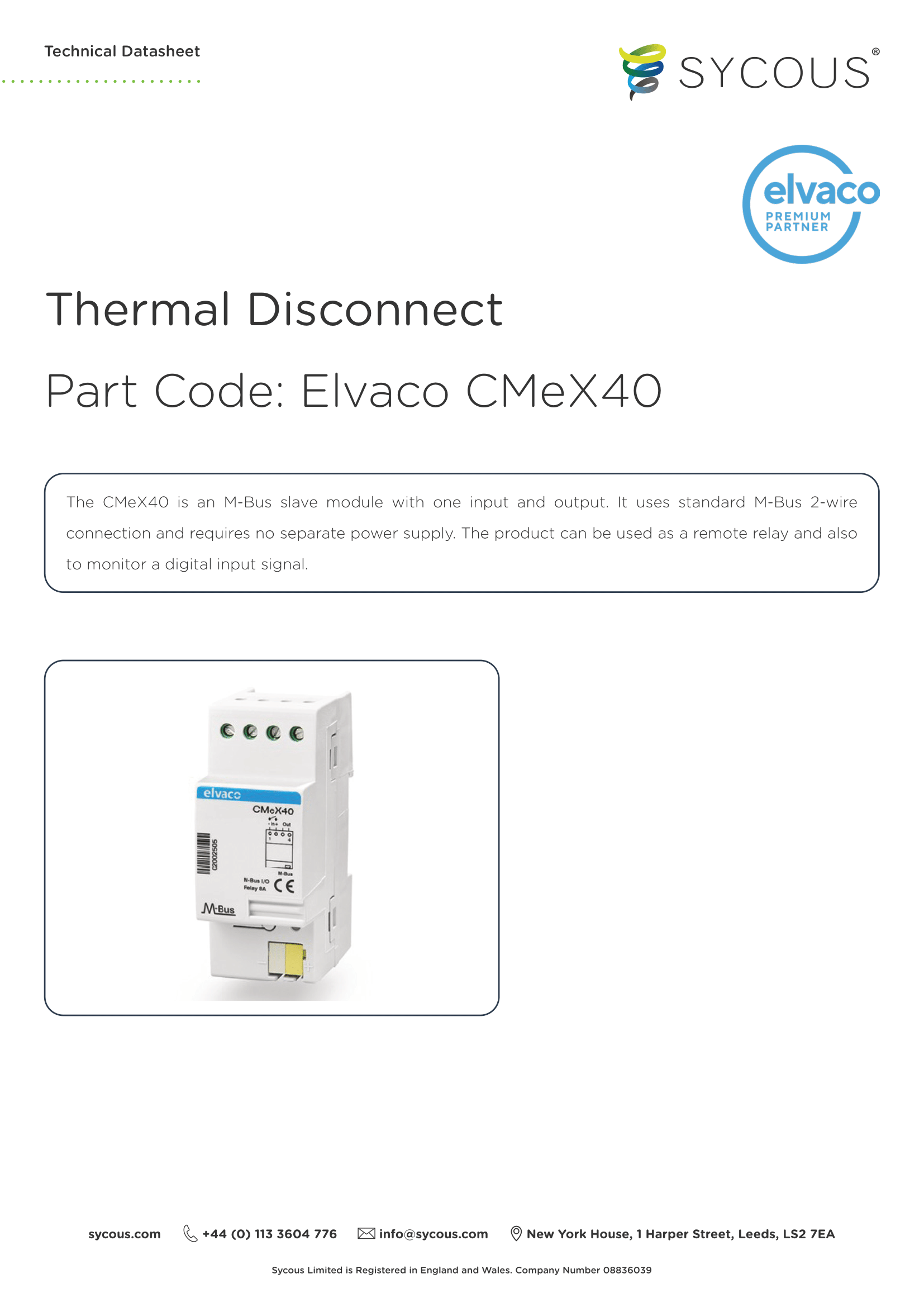

Technical Datasheet
Elvaco CMeX 40 I / O Module
Thermal Disconnect
Part Code Name Input Output Mounting
EL 040 RE MBus Relay and Signal Monitor 1 digital input 1 relay output DIN rail
The CMeX 40 is an MBus slave module with one input and one output . It connects over the
standard MBus two wire connection and needs no separate power supply . It can be used as
a remote relay , controlling loads of up to 230 VAC at 8 A , and to monitor a digital input
signal . It is ready to use with no con fi guration in the fi eld and can be connected to a CMe
Series master or any master that follows the MBus standard . Its open protocol design works
with any software that supports MBus , so existing MBus systems can use it without
proprietary solutions .
Features :
MBus controlled relay , up to 230 VAC 8
A
One digital input for signal monitoring
Powered from the MBus , no separate
supply
Standard open protocol , EN 13757
Ready to use , no con fi guration in the
fi eld
Green power and red error LEDs
Push button for testing the relay output
DIN rail mounting , 3 module polyamide
case
Managed
Services
Meter Data
Management
Billing Solutions
PAYG
Management
Online Account
Management
sycous . com
sycous . com +44 (0) 113 3604 776 info @ sycous . com New York House , 1 Harper Street , Leeds , LS 2 7 EA
Sycous Limited is Registered in England and Wales . Company Number 08836039

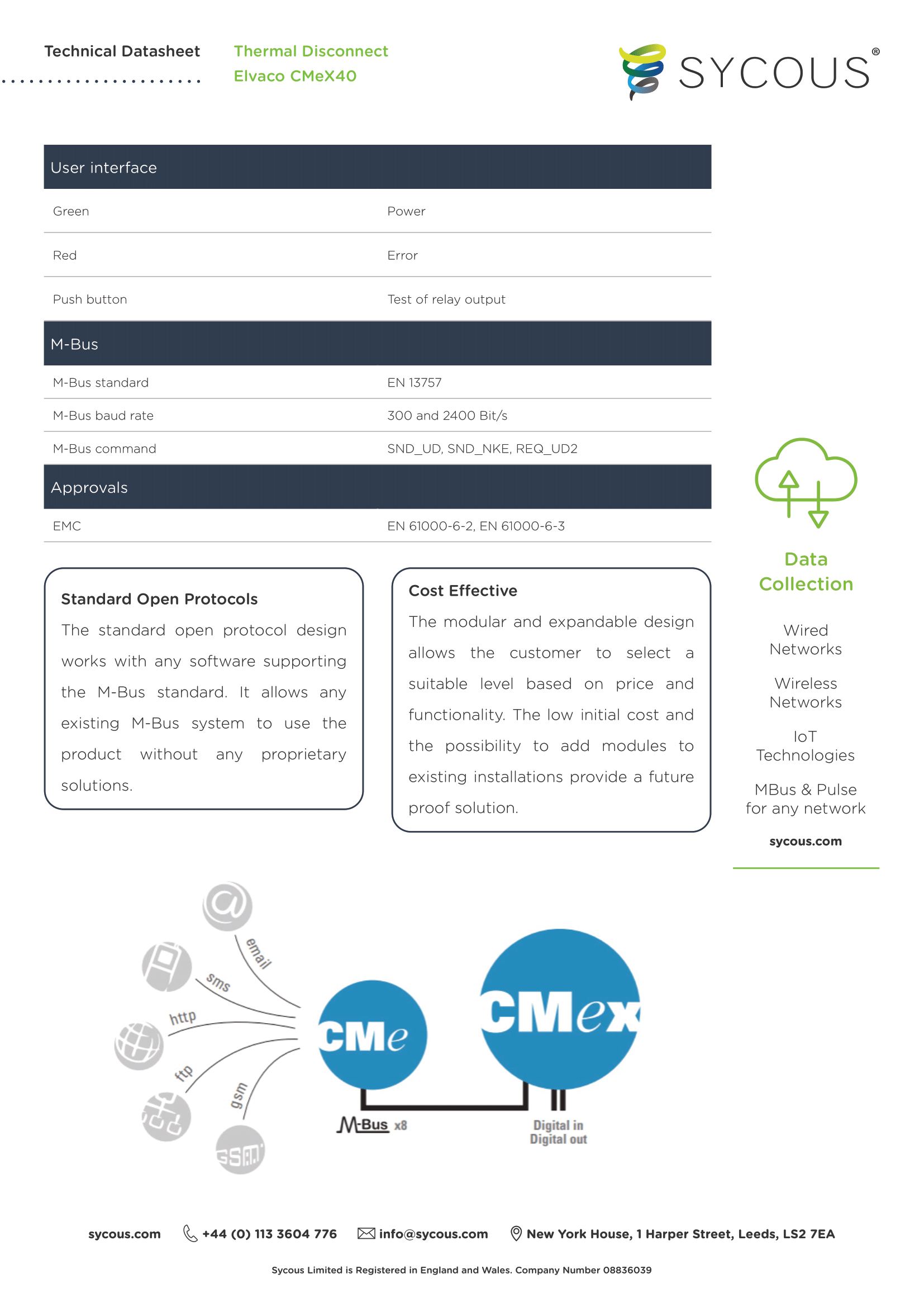

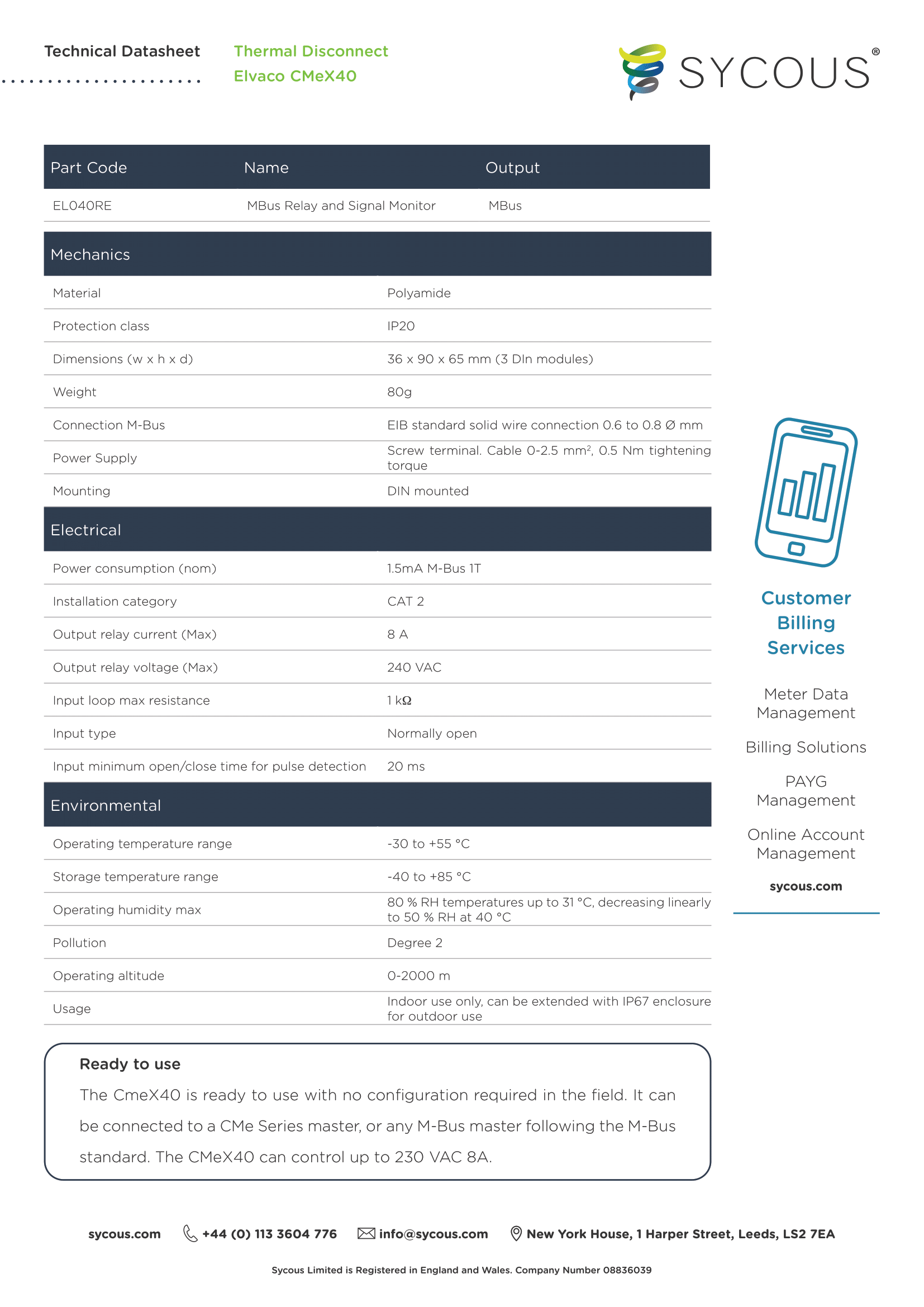

Technical Datasheet
Elvaco CMeX 40 I / O Module Thermal Disconnect
Technical Speci fi cation
MBus
MBus standard EN 13757
MBus baud rates 300 and 2400 bps
MBus commands SND _ UD , SND _ NKE , REQ _ UD 2
Approvals
EMC EN 61000 6 2 and EN 61000 6 3
Mechanics
Material Polyamide
Protection class IP 20
Dimensions ( w x h x d ) 36 x 90 x 65 mm (3 DIN modules )
Weight 80 g
MBus connection EIB standard solid wire , 0.6 to 0.8 mm diameter
Power supply connection Screw terminal , cable 0 to 2.5 mm ² , 0.5 Nm tightening torque
Mounting DIN rail
Electrical
Power consumption ( nominal ) 1.5 mA MBus (1 T )
Installation category CAT 2
Output relay current ( max ) 8 A
Output relay voltage ( max ) 240 VAC
Input loop maximum resistance 1 k Ω
Input type Normally open
Minimum input open or close time for pulse
detection 20 ms
Environment
Operating temperature Minus 30 to plus 55 ° C
Storage temperature Minus 40 to plus 85 ° C
Operating humidity 80 % RH up to 31 ° C , falling linearly to 50 % RH at 40 ° C
Pollution Degree 2
Operating altitude 0 to 2000 m
Usage Indoor use only , can be extended with an IP 67 enclosure for
outdoor use
User interface
Green LED Power
Red LED Error
Push button Test of the relay output
