Application description
CMeX50 receives up to 800 wireless MBus meters and drives up to 32 wired MBus meters. It works in all the common wireless modes: T1, C1 and S1. It presents the wireless meters as if they were ordinary wired MBus slaves, so they can be read with standard MBus commands over RS232, USB or the MBus 2 wire interface. This makes it usable in any standard MBus system, with no knowledge of wireless MBus needed.
It can be combined with Elvaco CMe and CMeX products to add GSM or GPRS, TCP/IP, MBus master extension and more. Typical uses:
- Radio networks in villa areas
- Radio networks in tenant owners associations
- Reading any type of wired MBus meter
- Reading any wireless MBus meter that supports T1, C1 or S1

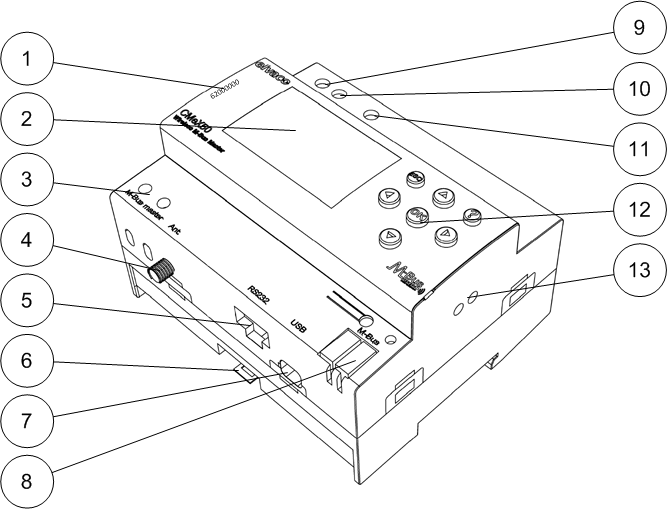

Parts overview
- Serial number
- LCD display
- MBus master
- Antenna connector
- RS232 connector
- DIN rail lock
- USB connector
- MBus slave
- Power supply L
- Power supply N
- Protective earth
- Keypad
- IR interface right (there is also an IR interface on the left side)
LCD display and keypad

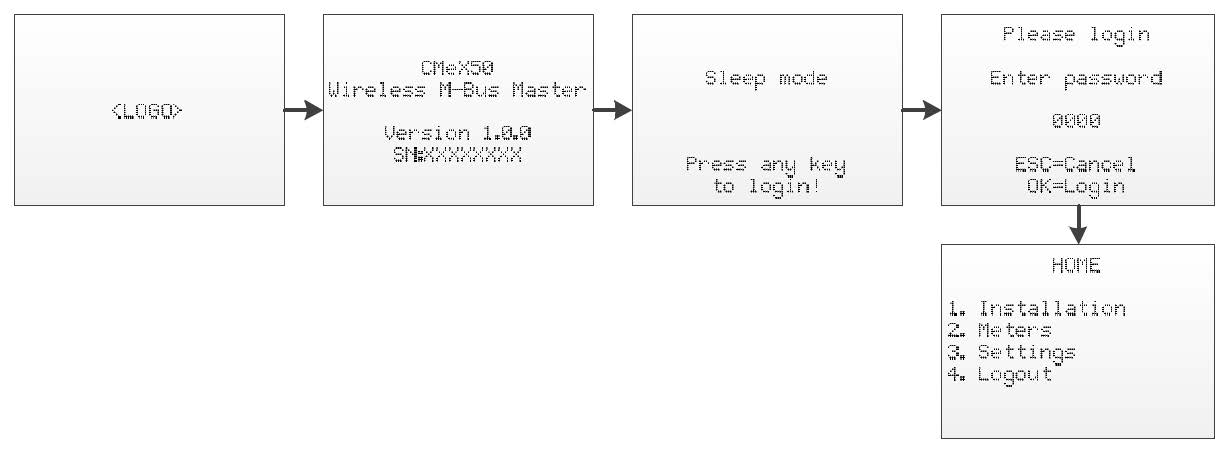

The display and keypad are used to move around the menu. After power up the unit stays in sleep mode until a key is pressed. It then asks for a login password. The factory password is 0000, so change it as part of commissioning.
Menu overview
| Menu | What it covers |
|---|---|
| 1. Installation | Choose a manufacturer or meter type, then start installation keeping meters, clearing meters, or running continuously. List the meters found. |
| 2. Meters | List meters by medium or manufacturer, view meter information, sort by ID, age or status, and edit or delete a meter, including its primary address and encryption key. |
| 3. Settings | Wireless MBus (global encryption key, wireless mode, automatic installation, installation time and mode, data age limit, handling of CI 0x79). Wired MBus (baud rate, secondary and primary address, wired mode, DIF and VIF mode, status byte, access rules, hexdump). System (language, display contrast, password, sleep time, system information, radio status). |
| 4. Factory reset | Returns the unit to factory settings. |
| 5. Reboot | Restarts the unit. |
| Logout | Ends the session. |
Factory default settings
| Section | Setting | Value |
|---|---|---|
| Wireless MBus | Global encryption key | Random, set at the factory |
| Wireless MBus | Wireless mode | C1 and T1 combined |
| Wireless MBus | Wireless sensitivity | Wide |
| Wireless MBus | Installation time | 60 minutes |
| Wireless MBus | Installation mode | All (SND_IR and SND_NR) |
| Wireless MBus | Data age limit | 1440 minutes |
| Wired MBus | Baud rate | 2400 bit/s |
| Wired MBus | Secondary address | Product serial number |
| Wired MBus | Primary address | 251 |
| Wired MBus | Wired mode | Auto |
| Wired MBus | DIF and VIF mode | Auto address |
| System | Language | English |
| System | LCD contrast | 0 |
| System | Password | 0000 |
| System | Sleep time | 5 minutes |
For type approval, refer to the Elvaco Declaration of Conformity.
