Introduction

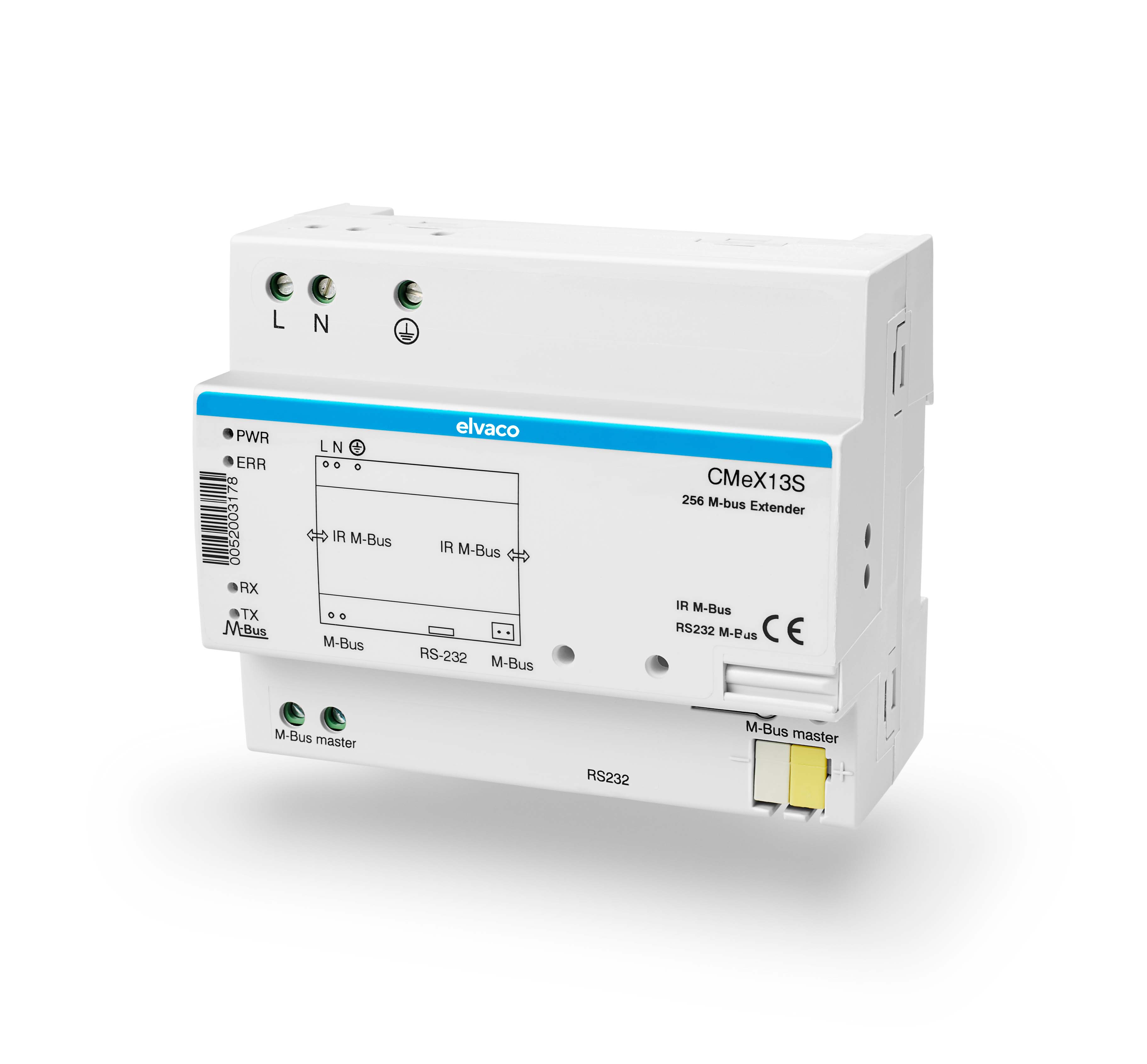

CMeX13S is an MBus master that adds drive strength, so a CMe series gateway can read more meters. It has a unique IR pass through feature, which lets up to four CMe or CMeX units talk over IR when stacked side by side. It also supports RS232, so it can be added to an existing MBus system.

This unit works with both the CMe2100 LTE and the CMe3100 gateways.

Features

• Drives up to 256 MBus slaves
• IR interface and IR pass through, with up to four units side by side
• RS232 interface, so it can act as a standalone RS232 to MBus master
• Up to 5000 m of MBus cable
• Light and heavy collision detection and short circuit protection
• DIN rail mounting
