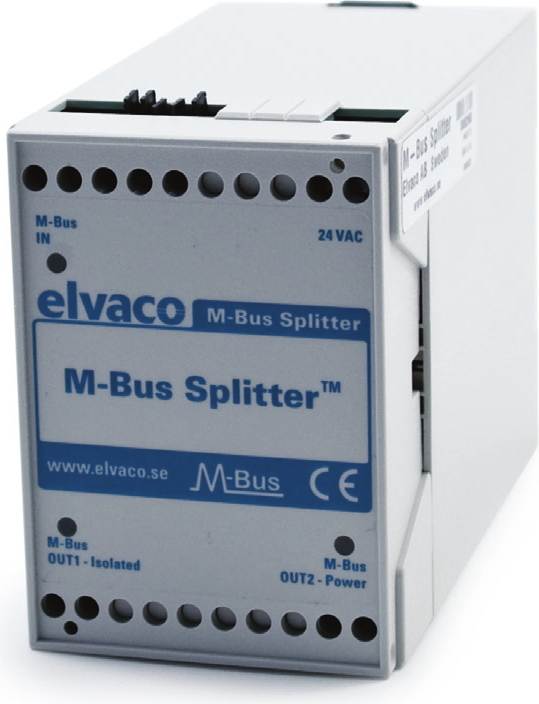

The MBus Splitter lets two parties read the same MBus meters. Up to four meters connect to one input, and two MBus masters connect to the two outputs, so each master registers its own readings. A typical use is a main meter that is read by both the energy company and the monitoring system of the property.
It works with any MBus meter, whatever the manufacturer, and finds the meters itself by scanning the loop. LED indicators show that it is working and how many meters it has found. It mounts on a DIN rail or directly on a wall and needs no maintenance.
Features
- Shares up to four MBus meters between two MBus masters
- Works with any MBus meter, independent of the meter manufacturer
- Scans the meter loop automatically and configures itself
- LED indicators for the number of meters and for faults on the bus
- Jumpers to set baud rate, scanning speed and readout interval
- Readout interval from 1 minute to 12 hours
- DIN rail or wall mounting
- Optional external 24 V supply for installations with more than one meter
Part code
| Part Code | Name | Details |
|---|---|---|
| EL004MS | MBus Splitter | Shares up to 4 MBus meters between two MBus masters |
Where to go next
- Product Overview for how it works and where it is used
- Technical Data Sheet for the full specification
- Quick Start Guide for mounting, wiring, settings and fault finding
