Technical Datasheet
Liberty 100 Electricity Credit
and PAYG Unit

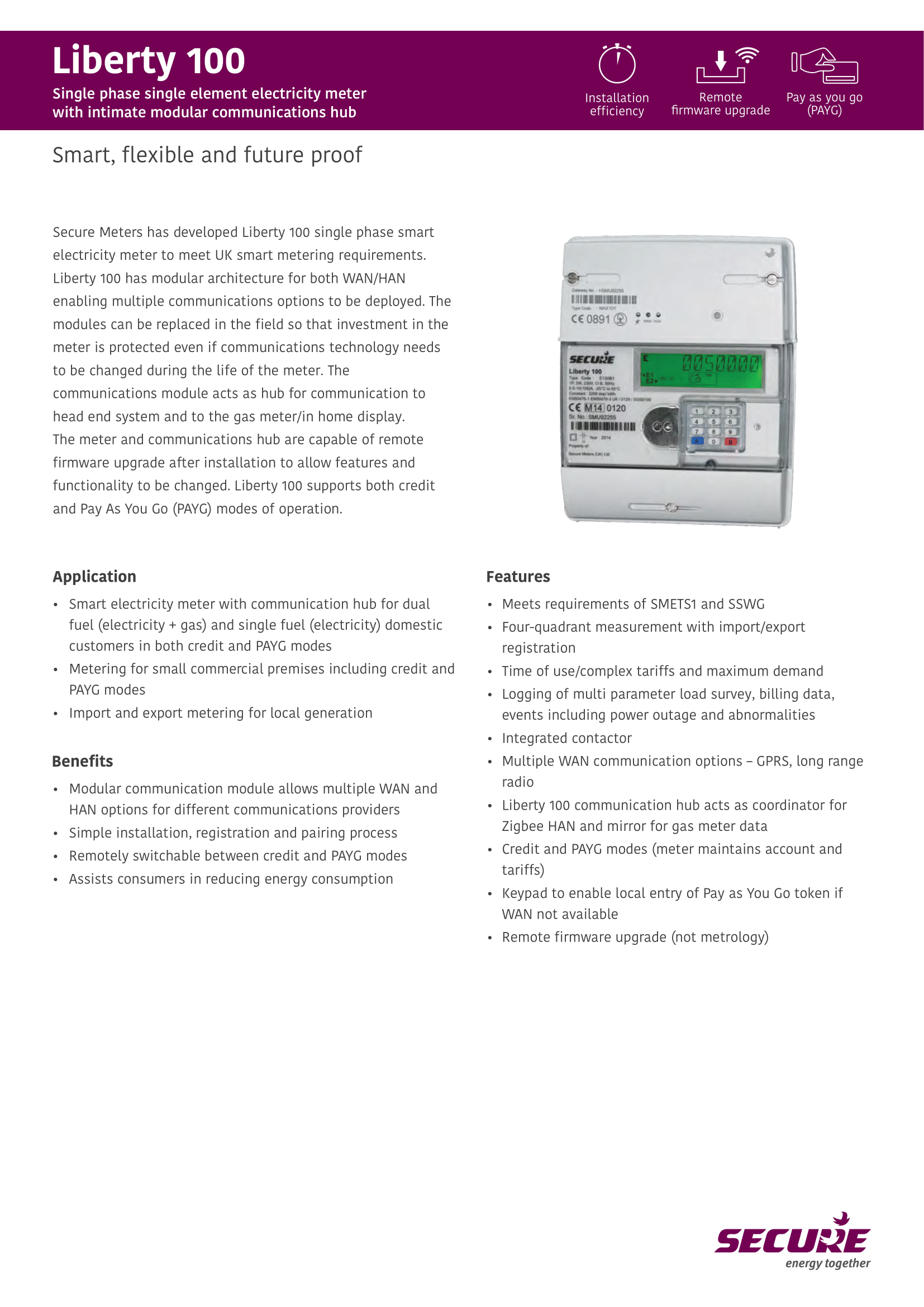

The Liberty 100 is a single phase smart electricity meter with an integrated communications
hub for domestic customers and small commercial premises , in both credit and PAYG
modes . It has a modular architecture for both WAN and HAN , so communications modules
can be replaced in the fi eld and the investment is protected if technology changes . It uses
NB - IoT and Cat M 1 for reliable remote communication , and the meter and hub support
remote fi rmware upgrade after installation .
Features :
Four quadrant measurement with import
and export registration
NB - IoT and Cat M 1 communications
Modular , fi eld replaceable
communications module
Credit and PAYG modes , remotely
switchable
Time of use and complex tari ff s ,
maximum demand
Keypad for local PAYG token entry
Integrated contactor
Remote fi rmware upgrade with rollback
Managed
Services
Meter Data
Management
Billing Solutions
PAYG
Management
Online Account
Management
sycous . com
sycous . com +44 (0) 113 3604 776 info @ sycous . com New York House , 1 Harper Street , Leeds , LS 2 7 EA
Sycous Limited is Registered in England and Wales . Company Number 08836039
Technical Datasheet
Liberty 100 Electricity Credit and PAYG Unit
Part Codes
SE 100 EL Sycous Liberty 100 with Pipit
SE 200 EL Sycous Liberty 100 Unit without Pipit
SY 910 CO Liberty 100 Commissioning
SY 911 CO Liberty 100 Installation
SE 100 CH Secure Liberty Pipit Charger
SE 100 AN Wall Mounted Antenna , 2 G /3 G /4 G
SE 300 PP Secure Pipit In Home Display Unit
Technical Speci fi cation
Electrical
Connection type Direct connected , single phase two wire
Voltage 230 VAC nominal
Current range 0.5 to 20 (100) A
Accuracy Active energy MID class B , reactive energy class 2.0
Mains frequency 50 Hz plus or minus 5 %
Standards MID class B , EN 50470 1 and 3, IEC 62053 23
Mechanical
Dimensions ( w x h x d ) 140 x 175 x 60 mm
Weight 1 kg approx .
Terminals Tunnel type with 2 screws compliant to BS 7856
Enclosure Flame retardant polycarbonate
Environmental
Ingress protection IP 54
Insulation class Protective class II
Temperature Minus 25 to plus 55 ° C operating , minus 25 to plus 70 ° C storage
Humidity 95 % non condensing
Features
Load survey 13 months , 4 channels
Display Backlit 10 character alphanumeric starburst display with status
icons
Keypad 12 way , 0 to 9, A , B , for PAYG code entry
Security AES 128 encryption , tamper detection
