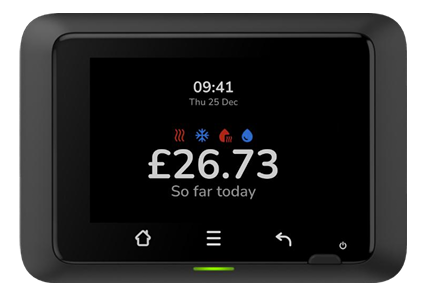

It shows residents how much energy they are using to heat and cool their home, as well as the amount of hot and cold water they use. Pipit 200 is part of the Secure Liberty Connect 200 smart metering solution and gives residents access to real time energy consumption data.
The Pipit 200 connects wirelessly to the smart meters, so there is nothing to plug in or set up. An engineer will already have installed and paired it. It can be used by customers who top up a PAYG meter and by customers who receive bills each month.
As Sycous is not the manufacturer of the Pipit 200 system, any faults should be reported to the Sycous team, who will contact the utility supplier on the resident’s behalf.
Features
- Colour touchscreen with Home, Menu and Back buttons and a Standby button
- Home screen that configures its layout to the number of meters connected (heat, cool, hot water and cold water)
- For each meter, view usage, history, live data and tariff, including standing charge, current rate and next rate
- Bar charts of usage, cost and CO2 on a daily, weekly and monthly basis
- Set daily, weekly or monthly targets by usage (kWh) or cost, with adjustable target thresholds
- If a meter is in PAYG mode, view the credit balance, the estimated days until credit expires, friendly credit and emergency credit status
- Top up on the device using a 20, 40, 60 or 80 digit code from the supplier
- Low credit alert with a balance threshold set by the resident
- Inbox for messages from the supplier, with up to 10 messages available
- Status icons and pop up windows to alert or warn of actions needed
- Standby mode with a summary screen
- Adjustable display brightness, sounds, language and timers
Product Variants
| Part Code | Name |
|---|---|
| SE401PP | Sycous Liberty 200 In Home Display Unit (Heat), Colour Screen. This unit will require commissioning to the correct Liberty 200. |
Technical Specification
| Features | Description |
|---|---|
| Dimension | 116 x 81 x 40 mm |
| Weight | 0.2 kg approx. |
| Power consumption | Less than 0.6 W |
| Display | Area 74 x 49 mm, resolution 480 x 320 TFT |
| Touchscreen | Capacitive type |
| Material | Acrylonitrile Butadiene Styrene (ABS) / Polycarbonate Flame Retardant (PCFR) |
| Colour | Black |
| Replaceable battery | 3 x AAA alkaline non rechargeable batteries |
| Temperature | Operating minus 10°C to 50°C, storage minus 20°C to 60°C |
| Relative humidity | 0 to 95% |
| Ingress protection | IP40 |
| Communication | BLE, 10 dBm |
| Operating life | 7 years |
The full Pipit 200 guide is available in the Hub Guide article in this section.
