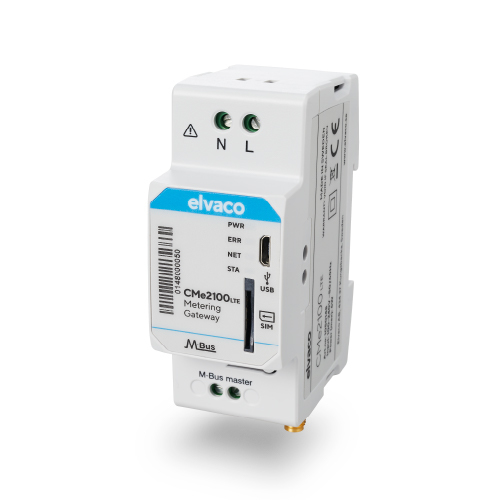

CMe2100 LTE is an MBus Metering Gateway for Mobile Networks with support for LTE communication and automatic fallback function (2G/3G/LTE). CMe2100 LTE reads up to 256 MBus meters, compiles meter data into customized reports and delivers it to a receiving system. The product is equipped with an IR interface which enables it to communicate with other devices from Elvaco's CMe/CMeX Series.
CMe2100 LTE is compatible with all other meters that use the MBus standard protocol. The product can be configured and updated remotely through text messages or HTTP, which means that settings can easily be changed without having to visit the installation site.
An external antenna is needed for CMe2100 LTE, sold separately.
Features
- Reads up to 256 MBus meters. Expanders required. Sold separately
- Can read up to 16 meters without an expander
- 2G/3G/LTE
- DIN Rail Mounted
- Suitable Enclosures available on request
Product Variants
| Part Code | Name | Size | Input | Output |
|---|---|---|---|---|
| EL066DC | CMe2100 LTE GSM MBus Master 64 Meter | 64 | MBus | GSM |
| EL129DC | CMe2100 LTE GSM MBus Master 128 Meters | 128 | MBus | GSM |
| EL256DC | CMe2100 LTE GSM MBus Master 256 Meters | 256 | MBus | GSM |
| EL016DC | CMe2100 LTE GSM MBus Master 16 Meters | 16 | MBus | GSM |
| EL034DC | CMe2100 LTE GSM MBus Master 32 Meters | 32 | MBus | GSM |
