Technical Datasheet
Elvaco CMe2100 LTE
Part Code Name Size Input Included
EL001CM CMe2100 LTE Data Logger for up to 1 meter 1 MBus Enclosure, antenna sold separately
EL016CM CMe2100 LTE Data Logger for up to 16 meters 16 MBus Enclosure, no expander, antenna sold separately
EL032CM CMe2100 LTE Data Logger for up to 32 meters 32 MBus Enclosure and CMeX10 expander, antenna sold separately
EL064CM CMe2100 LTE Data Logger for up to 64 meters 64 MBus Enclosure and expander, antenna sold separately
EL065CM CMe2100 LTE Data Logger for up to 64 meters, RS232 64 MBus Enclosure and expander, RS232, antenna sold separately
EL128CM CMe2100 LTE Data Logger for up to 128 meters 128 MBus Enclosure and expander, antenna sold separately
EL256CM CMe2100 LTE Data Logger for up to 256 meters 256 MBus Enclosure and expander, antenna sold separately
EL256WL CMe2100 LTE Wireless MBus Enhanced Data Logger for up to 256 meters 256 MBus, wMBus Enclosure and wireless expander, antenna sold separately
EL016DC CMe2100 LTE MBus Master for up to 16 meters 16 MBus Unit only, antenna sold separately
EL034DC CMe2100 LTE MBus Master for up to 32 meters 32 MBus Unit only, antenna sold separately
EL066DC CMe2100 LTE MBus Master for up to 64 meters 64 MBus Unit only, antenna sold separately
EL129DC CMe2100 LTE MBus Master for up to 128 meters 128 MBus Unit only, antenna sold separately
EL256DC CMe2100 LTE MBus Master for up to 256 meters 256 MBus Unit only, antenna sold separately

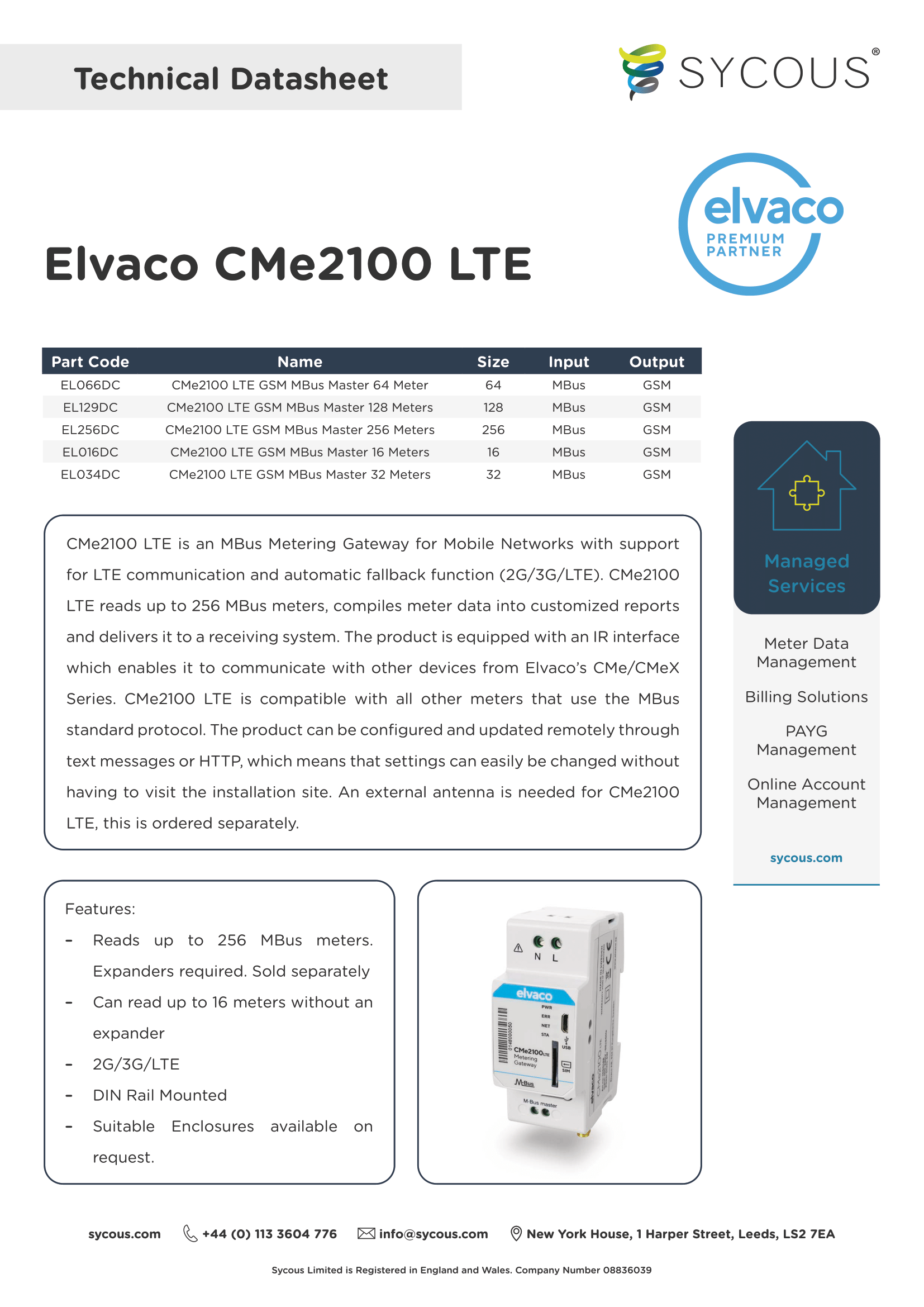

CMe2100 LTE is an MBus metering gateway for mobile networks, with LTE and automatic fallback to 3G and 2G. It reads up to 256 MBus meters and sends customised reports to a receiving system. Settings can be changed remotely by text message or HTTP. CM part codes are complete data loggers in an enclosure, with an expander. DC part codes are the CMe2100 LTE unit on its own. An external antenna is needed and is ordered separately.
Features:
Reads up to 256 MBus meters
Up to 16 meters without an expander
2G, 3G and LTE with automatic fallback
DIN rail mounted
Remote settings by text message or HTTP

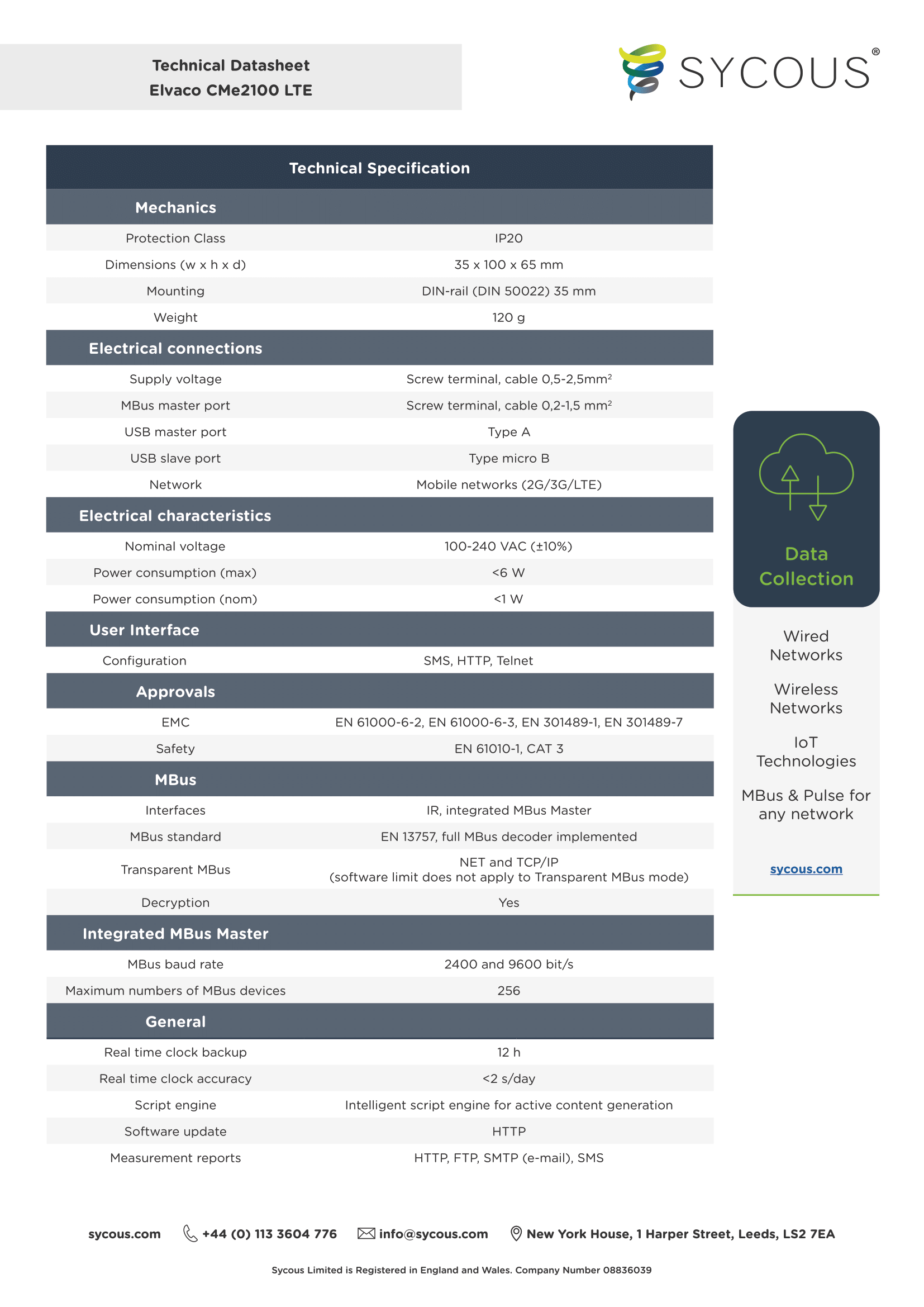

Technical Specification
Mechanics
Protection class IP20
Dimensions (w x h x d) 35 x 100 x 65 mm
Mounting DIN rail (DIN 50022) 35 mm
Weight 120 g
Electrical connections
Supply voltage Screw terminal, cable 0.5 to 2.5 mm²
MBus master port Screw terminal, cable 0.2 to 1.5 mm²
USB master port Type A
USB slave port Type micro B
Network Mobile networks (2G, 3G, LTE)
Electrical characteristics
Nominal voltage 100 to 240 VAC (plus or minus 10%)
Power consumption (max) Below 6 W
Power consumption (nominal) Below 1 W
User interface and approvals
Configuration SMS, HTTP, Telnet
EMC EN 61000-6-2, EN 61000-6-3, EN 301489-1, EN 301489-7
Safety EN 61010-1, CAT 3
MBus
Interfaces IR, integrated MBus master
MBus standard EN 13757, full MBus decoder implemented
Transparent MBus NET and TCP/IP (software limit does not apply to transparent MBus mode)
Decryption Yes
MBus baud rate 2400 and 9600 bit/s
Maximum MBus devices 256
General
Real time clock backup 12 h
Real time clock accuracy Below 2 s/day
Script engine Intelligent script engine for active content generation
Software update HTTP
Measurement reports HTTP, FTP, SMTP (email), SMS
