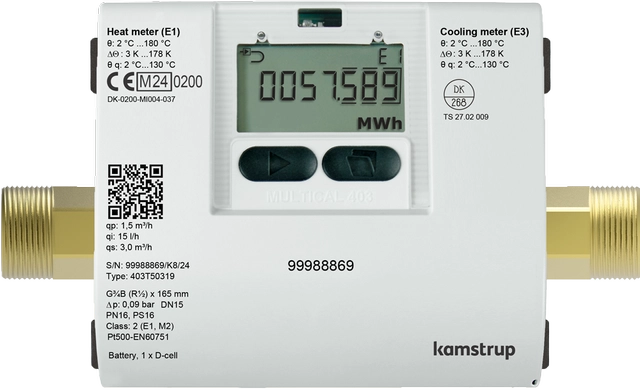

The Kamstrup MULTICAL 403 is a static heat, cooling or combined heat and cooling meter that measures with ultrasound, so there are no moving parts to wear. It is a compact meter with the calculator and flow sensor built together, with two temperature sensors, and it is made for flats, houses, housing associations, blocks of flats and small industry. The meter range covers nominal flow qp from 0.6 to 15 m³/h, with sizes from DN15 to DN50.
Features
- Heat, cooling or combined heat and cooling metering
- Ultrasonic flow sensor with an IP68 rating and a temperature range of 2 to 130 °C for heat
- Calculator and flow sensor are supplied together and cannot be separated
- Programmable data logger with minute loggers
- Many settings can be changed from the front keys, such as flow sensor position, energy unit, MBus address, radio on or off and target dates
- One slot for a communication module, with wired MBus, wireless MBus, BACnet, Modbus and analog output available
- Battery supply with up to 16 years of life, or a 24 VAC or 230 VAC mains supply module
- Seven or eight digit display resolution
- Approved to MID 2014/32/EU and EN 1434
403 and 303
The MULTICAL 303 is the smaller residential version for DN15 and DN20, with its modules built in. The MULTICAL 403 is the larger range with a slot for a plug in communication module. This section covers the 403.
Product Variants
The last two letters of each meter part code show the output fitted. MO is MBus, NO is no comms, PO is pulse and WO is wireless MBus. The size is the flow part connection and Qp is the nominal flow.
| Part Code | Name | Size | Qp (m3/h) | Output |
|---|---|---|---|---|
| KA415MO | Kamstrup MULTICAL 403 MBus | 15mm | 1.5 | MBus |
| KA415NO | Kamstrup MULTICAL 403 No comms | 15mm | 1.5 | No comms |
| KA415PO | Kamstrup MULTICAL 403 Pulse | 15mm | 1.5 | Pulse |
| KA415WO | Kamstrup MULTICAL 403 Wireless MBus | 15mm | 1.5 | Wireless MBus |
| ZZ403KA | Kamstrup MULTICAL 403 MBus | 15mm | 1.5 | MBus |
| KA420MO | Kamstrup MULTICAL 403 MBus | 20mm | 2.5 | MBus |
| KA420NO | Kamstrup MULTICAL 403 No comms | 20mm | 2.5 | No comms |
| KA420PO | Kamstrup MULTICAL 403 Pulse | 20mm | 2.5 | Pulse |
| KA420WO | Kamstrup MULTICAL 403 Wireless MBus | 20mm | 2.5 | Wireless MBus |
| KA425MO | Kamstrup MULTICAL 403 MBus | 25mm | 3.5 | MBus |
| KA425NO | Kamstrup MULTICAL 403 No comms | 25mm | 3.5 | No comms |
| KA425PO | Kamstrup MULTICAL 403 Pulse | 25mm | 3.5 | Pulse |
| KA425WO | Kamstrup MULTICAL 403 Wireless MBus | 25mm | 3.5 | Wireless MBus |
| KA426MO | Kamstrup MULTICAL 403 MBus | 25mm | 6 | MBus |
| KA426NO | Kamstrup MULTICAL 403 No comms | 25mm | 6 | No comms |
| KA426PO | Kamstrup MULTICAL 403 Pulse | 25mm | 6 | Pulse |
| KA426WO | Kamstrup MULTICAL 403 Wireless MBus | 25mm | 6 | Wireless MBus |
| KA440MO | Kamstrup MULTICAL 403 MBus | 40mm | 10 | MBus |
| KA440NO | Kamstrup MULTICAL 403 No comms | 40mm | 10 | No comms |
| KA440PO | Kamstrup MULTICAL 403 Pulse | 40mm | 10 | Pulse |
| KA440WO | Kamstrup MULTICAL 403 Wireless MBus | 40mm | 10 | Wireless MBus |
| KA450MO | Kamstrup MULTICAL 403 MBus | DN50 | 15 | MBus |
| KA450NO | Kamstrup MULTICAL 403 No comms | DN50 | 15 | No comms |
| KA450PO | Kamstrup MULTICAL 403 Pulse | DN50 | 15 | Pulse |
| KA450WO | Kamstrup MULTICAL 403 Wireless MBus | DN50 | 15 | Wireless MBus |
Accessories
| Part Code | Name |
|---|---|
| KA403BA | Kamstrup 403 D cell battery |
| KA500TS | Kamstrup 403 Pt500 direct temperature sensors, 1.5m cable |
Power Options
| Supply | Detail |
|---|---|
| Battery | Smaller battery without transport restrictions, or the larger battery with up to 16 years of life |
| 230 VAC or 24 VAC | Mains supply modules, with a SuperCap to cover short power failures |
Where to find more
- Product Overview for how it is used.
- Technical Data Sheet for the full specification.
- Installation and Configuration for installing, activating and configuring the meter.
- Information Codes for error codes and alarms.
Communication modules that fit this meter are in the Communication Modules section: CMi4140 LoRaWAN Module, NB-IoT Module, Wired MBus Module and Wireless MBus Module.
