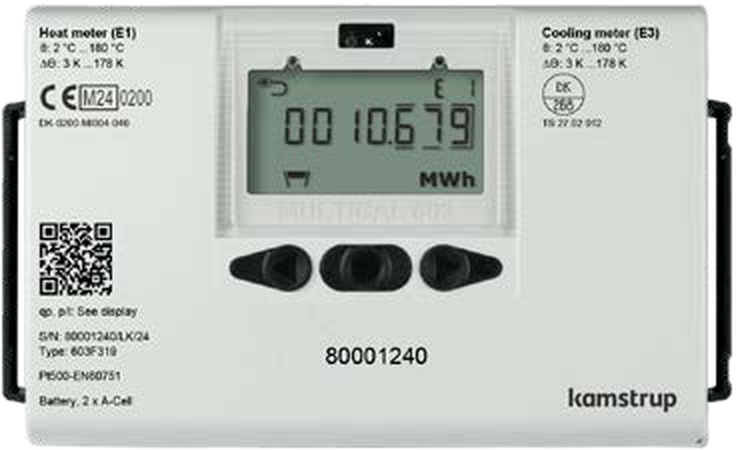

Kamstrup MULTICAL 603 heat and cooling meter calculator

The Kamstrup MULTICAL 603 is a calculator for heat meters, cooling meters and combined heat and cooling meters. It works with one or two ULTRAFLOW ultrasonic flow sensors and two or three temperature sensors, and calculates the energy used from the flow and the temperature difference between inlet and outlet. It is a fully programmable meter with a minute data logger, a two second integration interval and two slots for communication modules, so it suits everything from a single flat to a plant room or a large site.

Features

  • Heat, cooling or combined heat and cooling metering in one calculator
  • One or two ULTRAFLOW flow sensors and two or three Pt100 or Pt500 temperature sensors
  • Fully programmable data logger with minute loggers, from one minute up to one year
  • Two second integration interval
  • Up to 16 years of battery life at a reading interval down to 10 seconds
  • Two communication module slots, with the option of a built in wired MBus
  • Seven or eight digit display resolution, with a backlit display variant (603 F)
  • Simple interface with three push buttons on the front
  • Auto Detect of ULTRAFLOW X4, which adjusts the pulse figure and qp to match the connected flow sensor
  • Compatible with mixed fluids
  • Powered by a D cell battery, two A cell batteries, or 24 VAC or 230 VAC mains supply modules
  • IP65 calculator, approved to MID 2014/32/EU and EN 1434

Product Variants

The last two letters of each meter part code show the output fitted. MO is MBus, NO is no comms, PO is pulse and WO is wireless MBus. The size is the flow part connection and Qp is the nominal flow.

Part Code Name Size Qp (m3/h) Output
KA615MO Kamstrup MULTICAL 603 MBus 15mm 1.5 MBus
KA615NO Kamstrup MULTICAL 603 No comms 15mm 1.5 No comms
KA615PO Kamstrup MULTICAL 603 Pulse 15mm 1.5 Pulse
KA615WO Kamstrup MULTICAL 603 Wireless MBus 15mm 1.5 Wireless MBus
KA620CM Kamstrup MULTICAL 603 cooling meter Wireless MBus 20mm 2.5 Wireless MBus
KA620MO Kamstrup MULTICAL 603 MBus 20mm 2.5 MBus
KA620NO Kamstrup MULTICAL 603 No comms 20mm 2.5 No comms
KA620PO Kamstrup MULTICAL 603 Pulse 20mm 2.5 Pulse
KA620WO Kamstrup MULTICAL 603 Wireless MBus 20mm 2.5 Wireless MBus
KA621MO Kamstrup MULTICAL 603 cooling meter MBus 20mm 2.5 MBus
KA625MO Kamstrup MULTICAL 603 MBus 25mm 3.5 MBus
KA625NO Kamstrup MULTICAL 603 No comms 25mm 3.5 No comms
KA625PO Kamstrup MULTICAL 603 Pulse 25mm 3.5 Pulse
KA625WO Kamstrup MULTICAL 603 Wireless MBus 25mm 3.5 Wireless MBus
KA626MO Kamstrup MULTICAL 603 MBus 25mm 6 MBus
KA626NO Kamstrup MULTICAL 603 No comms 25mm 6 No comms
KA626PO Kamstrup MULTICAL 603 Pulse 25mm 6 Pulse
KA626WO Kamstrup MULTICAL 603 Wireless MBus 25mm 6 Wireless MBus
KA630MO Kamstrup MULTICAL 603 MBus 30mm 6 MBus
KA640MO Kamstrup MULTICAL 603 MBus 40mm 10 MBus
KA640NO Kamstrup MULTICAL 603 No comms 40mm 10 No comms
KA640PO Kamstrup MULTICAL 603 Pulse 40mm 10 Pulse
KA640WO Kamstrup MULTICAL 603 Wireless MBus 40mm 10 Wireless MBus
KA650MO Kamstrup MULTICAL 603 MBus DN50 15 MBus
KA650NO Kamstrup MULTICAL 603 No comms DN50 15 No comms
KA650PO Kamstrup MULTICAL 603 Pulse DN50 15 Pulse
KA650WO Kamstrup MULTICAL 603 Wireless MBus DN50 15 Wireless MBus
KA665MO Kamstrup MULTICAL 603 MBus DN65 25 MBus
KA665NO Kamstrup MULTICAL 603 No comms DN65 25 No comms
KA665PO Kamstrup MULTICAL 603 Pulse DN65 25 Pulse
KA665WO Kamstrup MULTICAL 603 Wireless MBus DN65 25 Wireless MBus
KA610MO Kamstrup MULTICAL 603 MBus DN100 60 MBus
KA610NO Kamstrup MULTICAL 603 No comms DN100 60 No comms
KA610PO Kamstrup MULTICAL 603 Pulse DN100 60 Pulse
KA610WO Kamstrup MULTICAL 603 Wireless MBus DN100 60 Wireless MBus
KA612MO Kamstrup MULTICAL 603 MBus DN125 100 MBus
KA612NO Kamstrup MULTICAL 603 No comms DN125 100 No comms
KA612PO Kamstrup MULTICAL 603 Pulse DN125 100 Pulse
KA612WO Kamstrup MULTICAL 603 Wireless MBus DN125 100 Wireless MBus
KA613MO Kamstrup MULTICAL 603 MBus DN150 150 MBus
KA613NO Kamstrup MULTICAL 603 No comms DN150 150 No comms
KA613PO Kamstrup MULTICAL 603 Pulse DN150 150 Pulse
KA613WO Kamstrup MULTICAL 603 Wireless MBus DN150 150 Wireless MBus
KA614MO Kamstrup MULTICAL 603 MBus DN200 400 MBus
KA614NO Kamstrup MULTICAL 603 No comms DN200 400 No comms
KA614PO Kamstrup MULTICAL 603 Pulse DN200 400 Pulse
KA614WO Kamstrup MULTICAL 603 Wireless MBus DN200 400 Wireless MBus
KA616MO Kamstrup MULTICAL 603 MBus DN250 400 MBus
KA616NO Kamstrup MULTICAL 603 No comms DN250 400 No comms
KA616PO Kamstrup MULTICAL 603 Pulse DN250 400 Pulse
KA616WO Kamstrup MULTICAL 603 Wireless MBus DN250 400 Wireless MBus
KA617MO Kamstrup MULTICAL 603 MBus DN300 1000 MBus
KA617NO Kamstrup MULTICAL 603 No comms DN300 1000 No comms
KA617PO Kamstrup MULTICAL 603 Pulse DN300 1000 Pulse
KA617WO Kamstrup MULTICAL 603 Wireless MBus DN300 1000 Wireless MBus

Calculators and Other Models

Part Code Name Size Qp (m3/h) Output
UK603CO Kamstrup MULTICAL 603 heat and cooling meter, flow mounted, battery powered, with wireless MBus module 20mm 2.5 Wireless MBus
UK680HC Kamstrup MULTICAL 603 heat and cooling meter, PN25, 300mm build length, 24V or 230V supply DN80 40 Modbus
UK610HC Kamstrup MULTICAL 603 heat and cooling meter, PN25, 360mm build length, 24V or 230V supply DN100 60 Modbus
UK603CA Kamstrup MULTICAL 603 energy calculator, Pt500 2 wire, with Modbus, 24V or 230V supply module, 1.5m Pt500 sensors and bracket Modbus

Accessories

Part Code Name
UK670TS Kamstrup 3m set of Pt500 temperature sensors
UK010AD Kamstrup 1/2 inch M10 nipple

Power Options

Supply Detail
D cell battery Battery module with one D cell, up to 16 years
Two A cell batteries Battery module with two A cells, up to 9 years
230 VAC or 24 VAC Mains supply modules, with an integrated supercap that covers short power failures

Where to find more

Communication modules for this meter are in the Communication Modules section: CMi4140 LoRaWAN Module, NB-IoT Module, Wired MBus Module and Wireless MBus Module.
